Özellikler

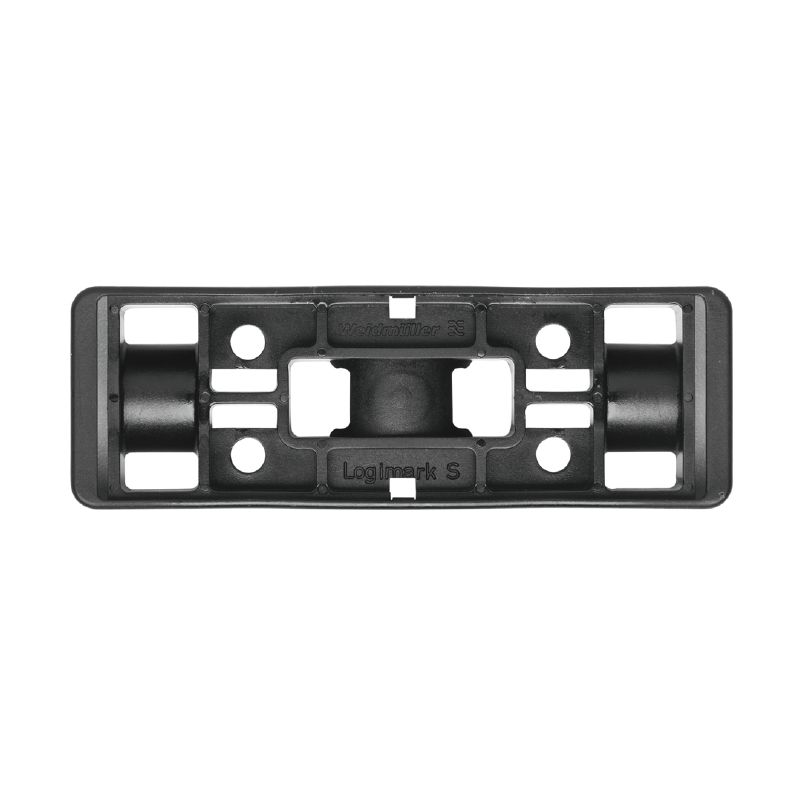

| Version | Device markers, Accessories, 90 x 31 mm, black |
| Order No. | 1675130001 |
| Type | CC-H 85/27 SW |
| GTIN (EAN) | 4008190454210 |
| Qty. | 40 adet |
| Depth | 13 mm |
| Depth (inches) | 0,512 inch |
| Height | 90 mm |
| Height (inches) | 3,543 inch |
| Width | 31 mm |
| Width (inches) | 1,22 inch |
| Net weight | 11,48 g |
| Operating temperature range | -40...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Adhesive | Double-sided adhesive tape |
| Colour | black |
| Halogen | No |
| Material | Polyamide 66 |
| Material colour according to resistance code | 0 |
| Number of markers per combination | 1 MultiCard = Accessories |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Recommended industries | Machinery |
| UL 94 flammability rating | V-2 |
| Width | 31 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_62692) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1675130001) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1675130001) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ECLASS 14.0 | 27-28-11-04 |
| ROHS | Conform |
Aksesuarlar
-
Ürün No.:1279100000Ambalaj birimi:100 adet
Cable ties, 7.5 x 365 mm, Polyamide 66, 540 N
-
Ürün No.:1279000000Ambalaj birimi:100 adet
Cable ties, 4.5 x 360 mm, Polyamide 66, 220 N
Cabinet InfrastructureCable tiesPlastic cable tiesNatural
aksesuarıdır
-
Ürün No.:1520940000Ambalaj birimi:20 adet
ClipCard, Device markers, 27 x 85 mm, yellow
-
Ürün No.:1520930000Ambalaj birimi:20 adet
ClipCard, Device markers, 27 x 85 mm, white
-
Ürün No.:1520970000Ambalaj birimi:20 adet
ClipCard, Device markers, 27 x 85 mm, grey
-
Ürün No.:1525850000Ambalaj birimi:4 adet
ClipCard, Device markers, 27 x 85 mm, To customer specification
MarkersDevice markersMultiCardClipCardCC 85/27Blank
MarkersDevice markersMultiCardClipCardCC 85/27Custom printing
