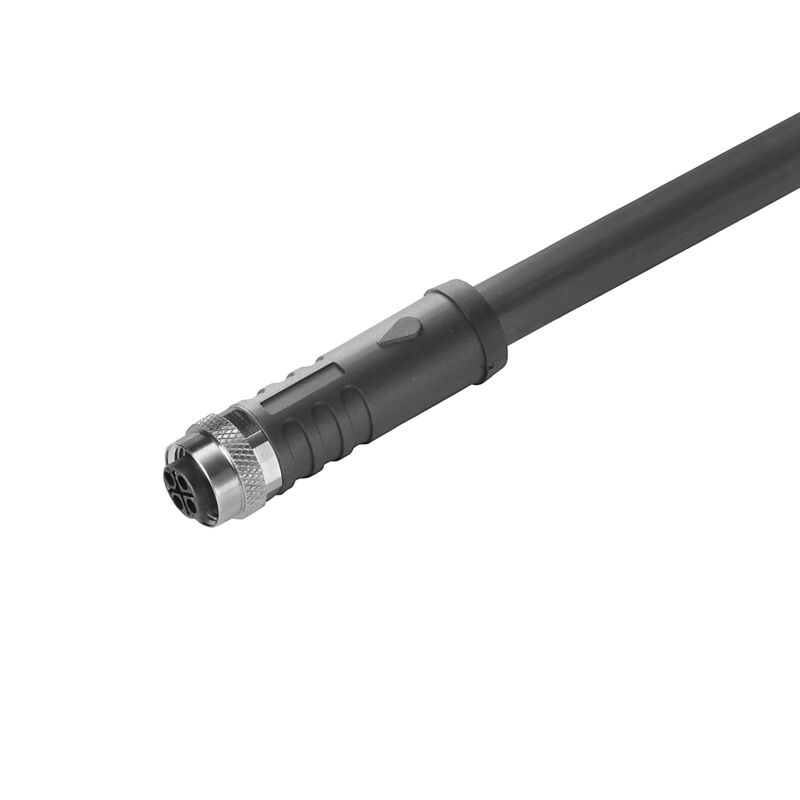

SAIL-M12BG-S-5.0P
SAIL-M12BG-S-5.0P
Dimensioned drawing
SAIL-M12BG-S-5.0P
Pole scheme
Socket
SAIL-M12BG-S-5.0P

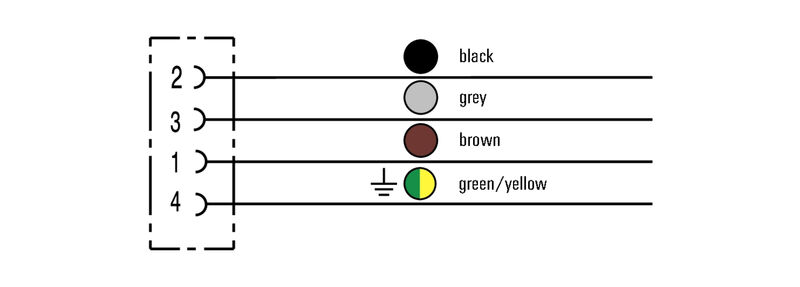

Wiring diagram
SAIL-M12BG-S-5.0P
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-S-5.0P

Power cable, One end without connector, M12, Number of poles : 4 (3 + PE), 5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 2050160500
Gegevensblad downloaden Engineeringondersteuning
Verwante producten 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E310075

General ordering data

Version
Power cable, One end without connector, M12, Number of poles : 4 (3 + PE), 5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Nr zam.
2050160500
Type
SAIL-M12BG-S-5.0P
GTIN (EAN)
4050118441659
Qty.
1 items

Dimensions and weights

Net weight
300 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Colour coding
grey
black
brown
Green/yellow
Configurable cable length
No
Core cross-section
1,5 mm²
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Kabellänge
5 m
Number of poles
4 (3 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
9.6 mm ± 0.3 mm
PE function
Yes
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-40...80 °C
Temperature range, stationary
-50...80 °C
Welding spark resistance
No

General technical data

AF size
13 mm
Coding
S-coded
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
12 A
Nominal voltage
600 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
Temperature range of housing
-40 … +85 ° C
Tightening torque
M12: 1.0 Nm
Version
Female socket, straight
Ścieżka połączenia
M12

Electrical properties

Resistencia del aislamiento
108 Ω
Tensión nominal
600 V

General standards

Steckverbinder Norm
IEC 61076-2-111
Zertifikat-Nr. (cULus)
E310075

Standards

Steckverbinder Norm
IEC 61076-2-111

Plug, left

Plug left
M12, S-coded, IP67, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
