Eigenschappen
| Order No. | 2882250000 |

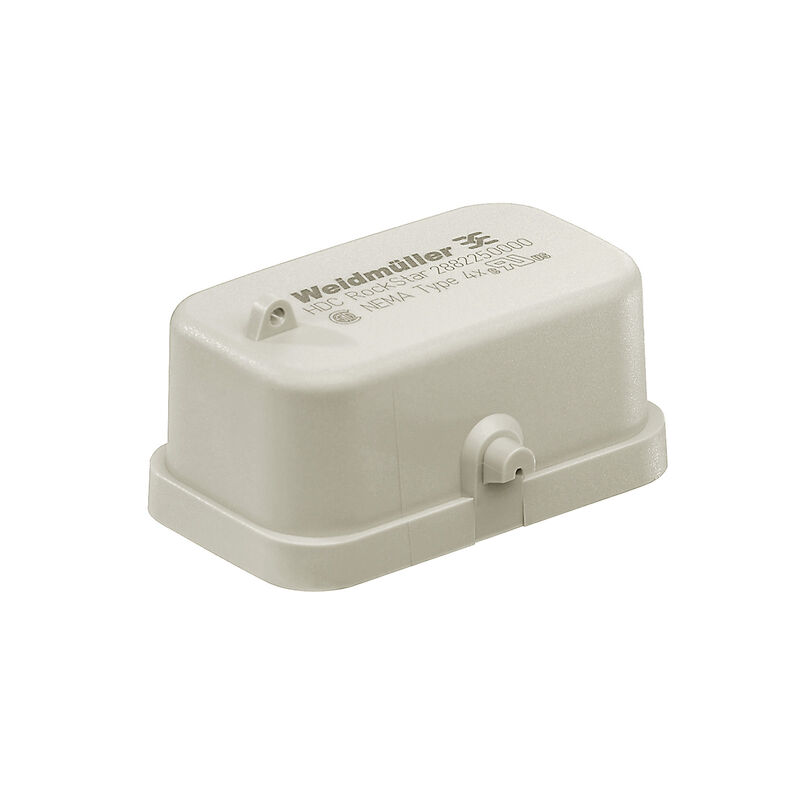

| Type | HDC HQP DMD 2BO WOC |
| GTIN (EAN) | 4064675675969 |
| Qty. | 50 items |
| Depth | 48,4 mm |
| Depth (inches) | 1,906 inch |
| Height | 23,5 mm |
| Height (inches) | 0,925 inch |
| Width | 35 mm |
| Width (inches) | 1,378 inch |
| Net weight | 10,524 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | 2f94735a-9fba-4903-842f-4fb9aa902310 |
| Chemical resistance |
|
| Cable entry | with female |
| Height of housing B | 23,5 mm |
| Total length housing | 48,4 mm |
| Width housing C | 29 mm |
| EMC housings | No |
| Housing main material | Plastic |
| Protection degree | IP65 (in plugged condition) |
| Series | HQ |
| UL 94 flammability rating | V-0 |
| BG | HQ |
| Cable entry | with female |
| Clamp version | Side-locking clamp |
| Colour (RAL) | RAL 1001 |
| Design | Standard |
| Design of housing | Cover for lower part of housing |
| Design of locking system | Side-locking clamp on lower side |
| Mounting with catch cord possible | No |
| Sealing | NBR |
| Size | HQ |
| Suitable for ModuPlug® | No |
| Top part/bottom part/lid | Cover |
| Type | Cover |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| ROHS | Conform |
