Eigenschappen

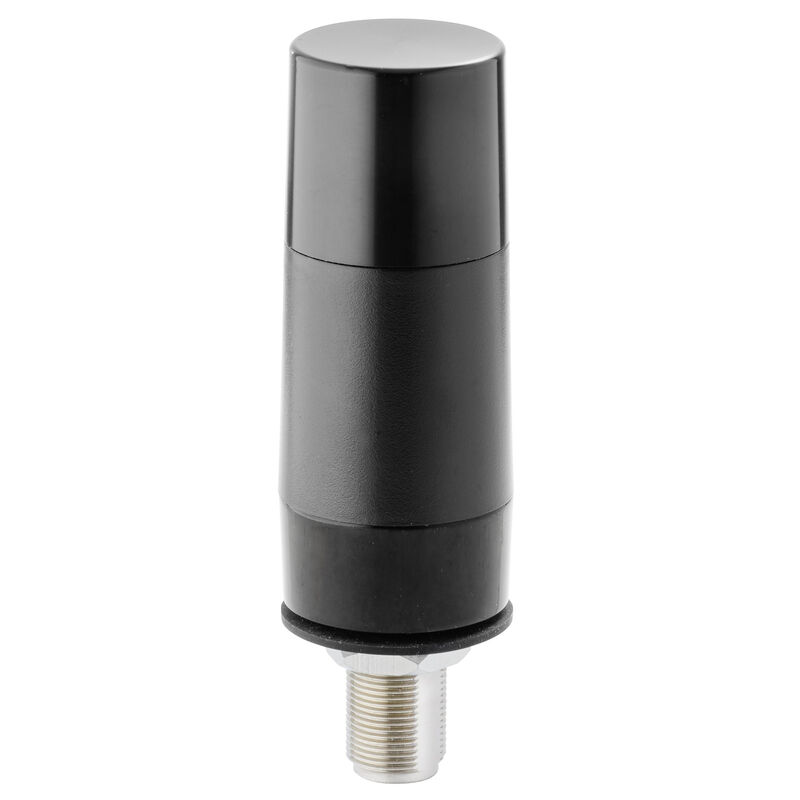

| Version | Omni-directional antenna, Cellular antenna, Up to 5G (NR), Vertical, N female, IP66, Impedance: 50 Ω |
| Order No. | 2788150000 |
| Type | IE-ANT-CELL-SISO-LO-NF |
| GTIN (EAN) | 4064675066415 |
| Qty. | 1 items |
| Height | 89 mm |
| Height (inches) | 3,504 inch |
| Diameter | 35,8 mm |
| Net weight | 263,02 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -40 °C...70 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e4cad7fc-a55e-4d5c-8f05-417a6385e9b6 |
| Colour | black |
| Included in delivery | 1 x antenna |
| Antenna gain | 3 dBi |
| Composite power max. | 150 W |
| Frequency range |
690-950 MHz
1.7-3.8 GHz |
| Impedance | 50 Ω |
| Polarisation | Vertical |
| Standing wave ratio | < 2.0 typical, 2.5 max. |
| Type of connection | N female |
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| Storage temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_245256) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2788150000) |
| Technical Documentation | [Radiation Pattern](https://mdcop.weidmueller.com/mediadelivery/asset/900_246618) |
| User Documentation | [Hardware Installation Guide](https://mdcop.weidmueller.com/mediadelivery/asset/900_229286) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001698 |
| ETIM 7.0 | EC001698 |
| ETIM 8.0 | EC001698 |
| ETIM 9.0 | EC001698 |
| ECLASS 9.1 | 19-07-01-90 |
| ECLASS 10.0 | 19-07-01-07 |
| ECLASS 11.0 | 19-07-01-07 |
| ECLASS 12.0 | 19-07-01-07 |
| ECLASS 13.0 | 19-07-01-07 |
| ROHS | Conform |
Toebehoren
-
Product ID:1491180000VPE:1 items
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 2 m
-
Product ID:1491210000VPE:1 items
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 6 m
-
Product ID:2788470000VPE:1 empty
Antenna mount for "IE-ANT-WL-DB-SISO-LO-NF", "IE-ANT-CELL-SISO-LO-NF"
-
Product ID:1491190000VPE:1 items
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 4 m
-
Product ID:2788030000VPE:1 items
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 5 m
-
Product ID:2788010000VPE:1 items
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 1 m
-
Product ID:2788020000VPE:1 items
Antenna cable, Connection 1:, N male, Connection 2:, SMA male, Length: 3 m
