Eigenschappen

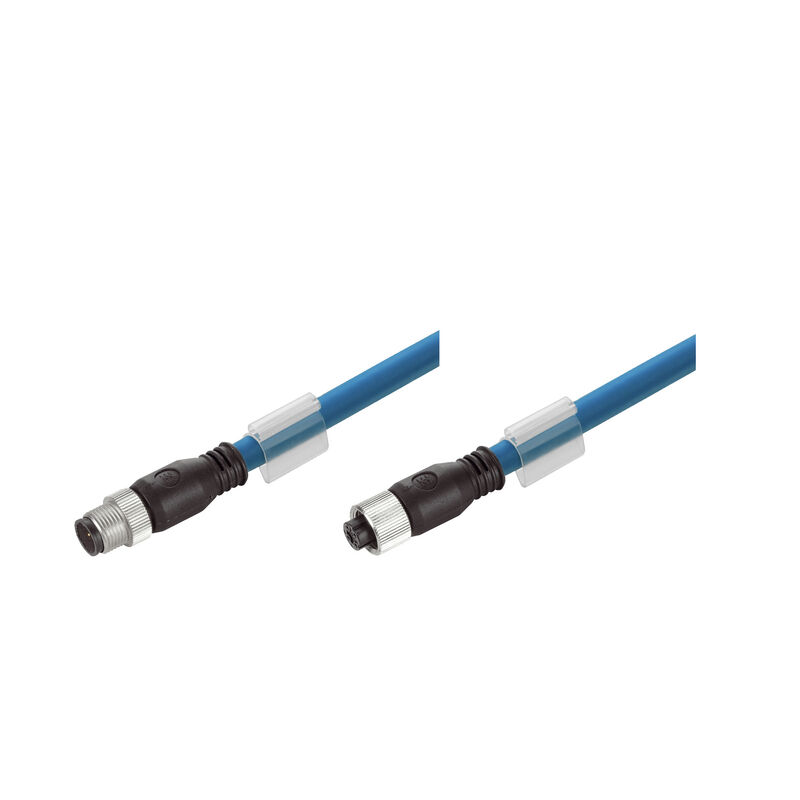

| Version | System cable, M12 D-code – IP 67 straight pin, M12 D-code – IP 67 straight socket, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), Polyolefine, 10 m |
| Order No. | 2672350100 |
| Type | IE-C5DB4BB0100MCSMSS-X |
| GTIN (EAN) | 4064675261858 |
| Qty. | 1 items |
| Length | 10 m |
| Length (inches) | 393,701 inch |
| Net weight | 400 g |
| Operating temperature | -40 °C...90 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Corrosiveness of fumes | EN 50267-2-2 |
| Fire safety for railway vehicles |
NFPA 130
DIN EN 45545-2 |
| Flames propagate vertically on bundled cables | EN 60332-3-25 |
| Hydrogen halide content |
According to EN-50267-2-1
According to IEC 60754-1 |
| Impervious to smoke | EN 61034-2 |
| Poisonous gases | EN 50305 |
| Rated voltage | 125 V |
| Connector standard | IEC 61076-2-101 |
| Connector standard | IEC 61076-2-101 |
| Corrosiveness of fumes | EN 50267-2-2 |
| Fire safety for railway vehicles |
NFPA 130
DIN EN 45545-2 |
| Flames propagate vertically on bundled cables | EN 60332-3-25 |
| Hydrogen halide content |
According to EN-50267-2-1
According to IEC 60754-1 |
| Impervious to smoke | EN 61034-2 |
| Poisonous gases | EN 50305 |
| Colour coding |
blue
yellow white orange |
| Copper diameter | 0,254 mm |
| Cross-section | 4*AWG 22/7 - 0.32 mm² |
| Insulation | PE |
| Insulation cross-section | 1,95 mm |
| Material sheath | Polyolefine |
| Number of wires | 4 |
| Sheath diameter, max. | 6,8 mm |
| Sheath diameter, min. | 6,4 mm |
| Sheathing colour |
blue
SF/UTP |
| Sheathing material thickness | 1 mm |
| Shielding | SF/UTP |
| Wire connection cross section AWG, max. | AWG 22 |
| Wire core insulation thickness | 1,4 mm |
| Wire material | tinned copper |
| Wire pair shielding | Plastic foil |
| Category | Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B) |
| Coupling attenuation up to 1000 MHz | 90 dB |
| Coupling resistance at 10 MHz / m | 8 mΩ |
| Shield attenuation up to 1000 MHz | 60 dB |
| Test voltage: wire-wire-shield | 1000 Veff, 50 Hz, 1 min |
| Corrosiveness of fumes | EN 50267-2-2 |
| Halogen |
halogen-free, according to IEC 60754-2
No |
| Impervious to smoke | EN 61034-2 |
| Min. bending radius, once only | 5 x cable diameter |
| Min. bending radius, repetitive | 6 *diameter |
| Resistance to oils | in accordance with IEC 60811:404 |
| Plug left | M12, D-coded, IP67, male contact, straight, plug, Plastic, shielded |
| Plug right | M12, D-coded, IP67, female contact, straight, plug, Plastic, shielded |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002599 |
| ETIM 7.0 | EC002599 |
| ETIM 8.0 | EC002599 |
| ETIM 9.0 | EC002599 |
| ECLASS 9.0 | 27-06-03-08 |
| ECLASS 9.1 | 27-06-03-08 |
| ECLASS 10.0 | 27-06-03-08 |
| ECLASS 11.0 | 27-06-03-08 |
| ECLASS 12.0 | 27-06-03-08 |
| ECLASS 13.0 | 27-06-03-08 |
| ECLASS 14.0 | 27-06-03-08 |
| ROHS | Conform |
