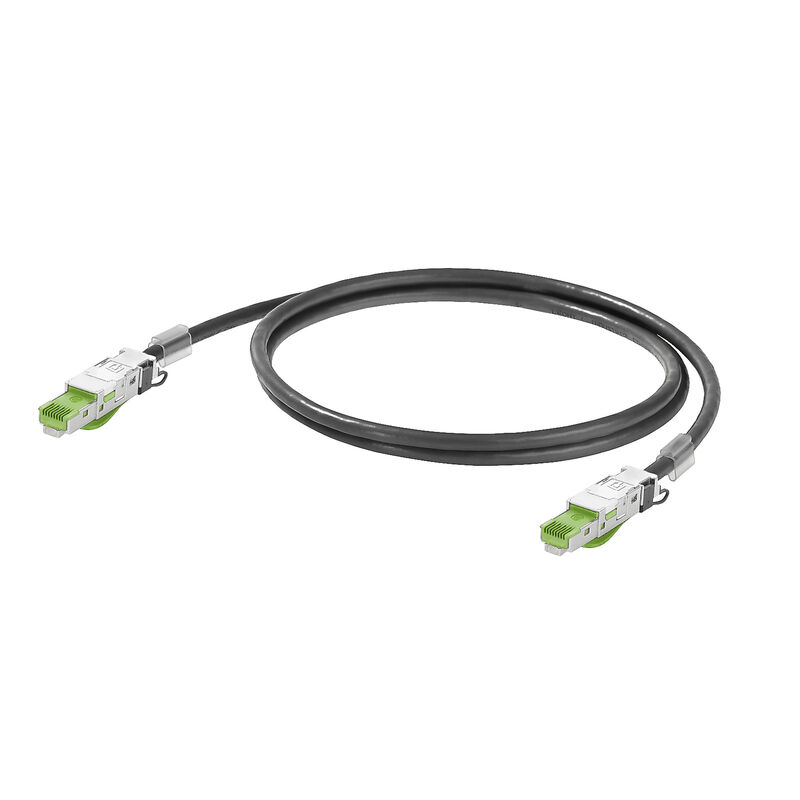

System cable, RJ45 IP 20, RJ45 IP 20, Cat. 5e, Radox EM 104, 5 m

Ürün No. 1421710050
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 6 İlgili ürünler 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
System cable, RJ45 IP 20, RJ45 IP 20, Cat. 5e, Radox EM 104, 5 m
Order No.
1421710050
Type
IE-C5DB4WE0050A70A70-E
GTIN (EAN)
4050118226294
Qty.
1 adet

Dimensions and weights

Length
5 m
Length (inches)
196,85 inch
Net weight
302,72 g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable specific standards

Corrosiveness of fumes
EN 50267-2-2
Densidad de humo
According to BS 6853 Appendix D
According to IEC 61034-2
According to UL1685, 12 (FT4 exp.)
Fire safety for railway vehicles
According to BS 6853, GM/RT 2130, la,lb, II
According to EN 45545, HL1 - HL3
According to DIN 5510 1-4
According to NF F16-101, A1, A2, B
According to UNI CEI 11170, LR1-LR4
NFPA 130
Flames propagate vertically on bundled cables
in accordance with EN 50266
EN 50305
EN 60332-3-25
According to NF C32-070, 2.1
According to UL1685, 12 (FT4 exp.)
Fluorine content
According to EN 60684-2 Section 45.2
Gaz nocifs
According to BS 6853 Appendix B
Multi-wire metallic data and control cable
According to EN50288-2-2
Obsah halogenovodíku
According to EN-50267-2-1

General standards

Connector standard
IEC 60603-7-51

Cable structure

Colour coding
yellow
white
orange
blue
Cross-section
4*AWG 22/7 - 0.32 mm²
Insulation
PE
Insulation cross-section
1,55 mm
Material sheath
Radox EM 104
Number of wires
4
Sheath diameter, max.
7 mm
Sheath diameter, min.
6,2 mm
Sheathing colour
black
Shielding
SF/UTP
Wire connection cross section AWG, max.
AWG 22
Wire material
Copper alloy

Electrical properties of cable

Category
Cat. 5e

Mechanical and material properties of cable

Alogeni
No
Korozyjność gazów pożarowych
EN 50267-2-2
Olajokkal szembeni ellenállás
in accordance with EN 50264-1 or EN 50306-1
Röktäthet
According to BS 6853 Appendix D
According to IEC 61034-2
According to UL1685, 12 (FT4 exp.)
Raggio di curvatura min, ripetuto
6 *diameter
Resistance to spread of flame
in accordance with IEC 60332-1-2
According to NF C32-070, 2.1
NFPA 130
최소 구부림 반경, 한 번만
10 x cable diameter

Plug, left

Plug left
RJ45, IP20, male contact, straight, plug, Zinc diecast, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Zinc diecast, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
