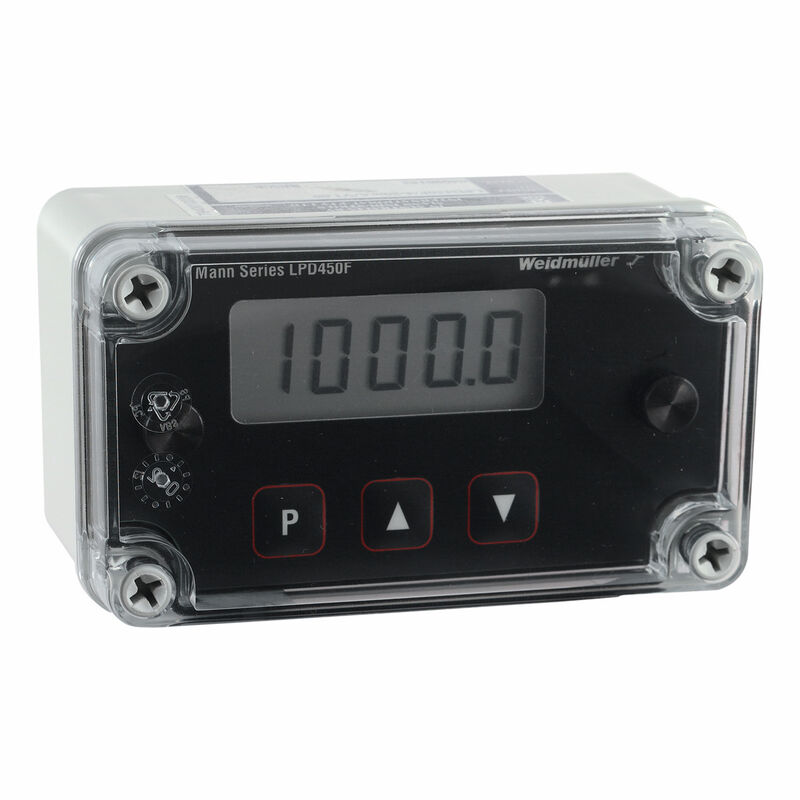

LPD450F/4-20MA/X AU CE
LPD450F/4-20MA/X AU CE

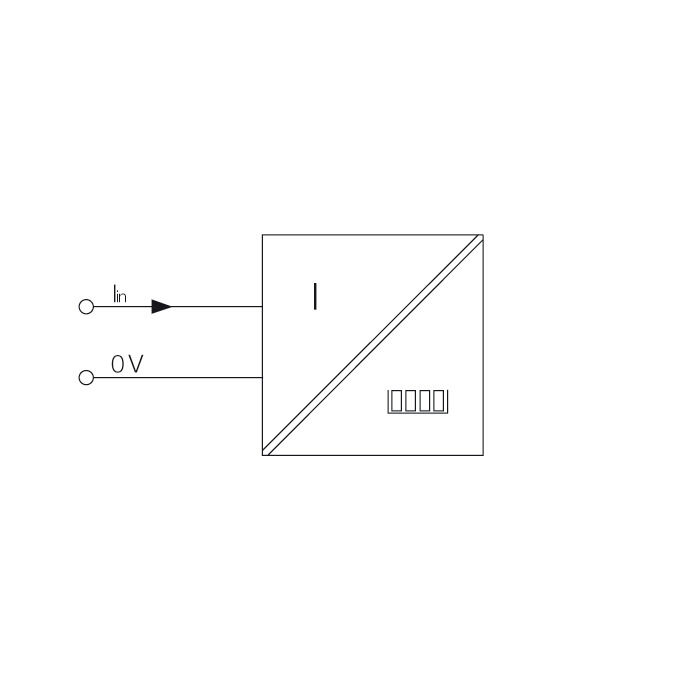

Electric symbol
LPD450F/4-20MA/X AU CE

LPD450F/4-20MA/X AU CE

Dit product is niet meer beschikbaar.

Product ID 7940010236
Gegevensblad downloaden Productdownloads
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Display General data Input Output (analogue) Insulation coordination Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E256486
Certificate no. (cULusEX)
E338066

General ordering data

Order No.
7940010236
Type
LPD450F/4-20MA/X AU CE
GTIN (EAN)
4032248565658
Qty.
1 items
Delivery status
Discontinued
Last order date
/Date(1711580400000)/

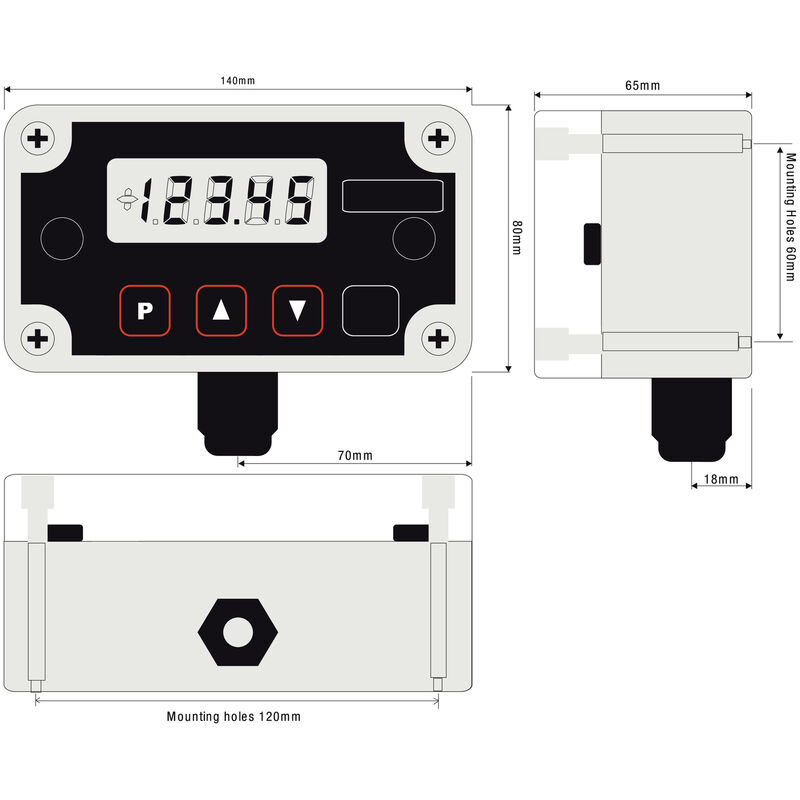

Dimensions and weights

Depth
30 mm
Depth (inches)
1,181 inch
Height
50 mm
Height (inches)
1,968 inch
Width
20 mm
Width (inches)
0,787 inch
Length
65 mm
Length (inches)
2,559 inch
Net weight
404 g

Temperatures

Storage temperature
-25 °C...70 °C
Operating temperature
0 °C...60 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1

Display

Decimal point
18888, 1.8888, 18.888, 188.88, 1888.8
99.99
Display range
±19.999 (0.00…100.00 factory setting)
0…100 %
-999...9999
Display value
Percentage or real value display
Scaling
Variable
Type
4.5-character, black LCD with clear background, 20 mm

General data

Accuracy
± 0.05 % from signal range ± 1 digital step
0.1% of FSR
Configuration
DIP switch
Cut-off frequency (-3 dB)
5 Hz
DIN Rail compatibility
Yes
TS 35
Input/Output
Current input
Linearity
<0.1 % typ.
Power consumption
6 W @ 24 V DC
Protection degree
IP20
IP65
Repeat accuracy
± 0.01 % of signal range
Sampling rate
16 x pro s
Step response time
Programmable in 99 steps from 1...30 sec.
300 ms (10...90 %)
Supply voltage
Loop powered, via 4…20 mA input
Temperature coefficient
Offset ± 0.01 % / °C
Adjustment range ± 0.1 digital steps or 0.01 % / °C
<0.02 % / °C
Type of connection
Screw connection
Type of mounting
Front mounting
Rail

Input

Input current
4...20 mA
Min. step response time
300 ms (10...90 %)
Number inputs
1
Response time
<50 ms

Output (analogue)

Number of analogue outputs
1

Insulation coordination

EMC standards
DIN EN 61326
EN 61326
Pollution severity
2
Standard
EN 50178

Connection data

Wire connection method
Screw connection
Type of connection
Screw connection
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded, max.
2 mm²

Classifications

ETIM 8.0
EC000677
ETIM 9.0
EC000677
ETIM 10.0
EC000677
ECLASS 14.0
27-14-31-10
ECLASS 15.0
27-14-31-10
