Eigenschappen

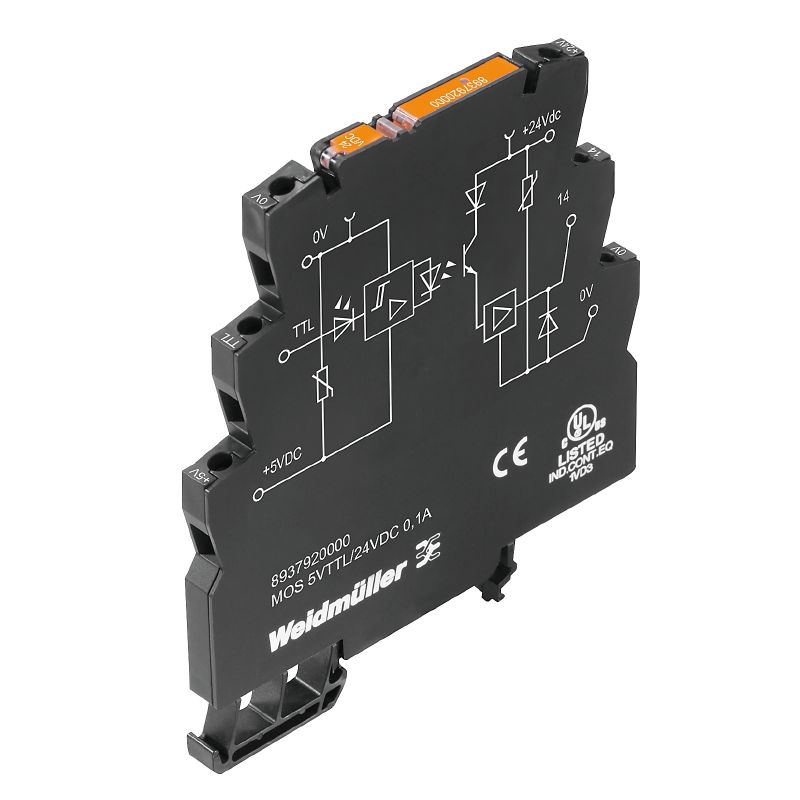

| Version | MICROOPTO, Solid-state relay, Rated control voltage: 5 V TTL , Rated switching voltage: 24 VDC ±20%, Continuous current: 100 mA, Screw connection |
| Order No. | 8937920000 |
| Type | MOS 5VTTL/24VDC 0,1A |
| GTIN (EAN) | 4032248716159 |
| Qty. | 1 items |
| Depth | 97,8 mm |
| Depth (inches) | 3,85 inch |
| Height | 88,1 mm |
| Height (inches) | 3,468 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 34,8 g |
| Storage temperature | -40 °C...60 °C |
| Operating temperature | -25 °C...60 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| MTTF | 1.686 a |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | d32f8e61-6733-45d6-9062-c95f9903aad6 |
| Rated control voltage | 5 V TTL |
| Nominal control current | <100 µA |
| Power rating | <0.5 mW |
| Status indicator | Green LED |
| Protective circuit |
Varistor
Reverse polarity protection |
| Input frequency | 100 kHz |
| Nominal auxiliary voltage | 5 V DC ± 5 % / HIGH: max. 9 mA, LOW: max 400 µA |
| Rated switching voltage | 24 VDC ±20% |
| Continuous current | 0.1 A |
| Rated switching current | 100 mA |
| Load category | LC A |
| Max. switching voltage, DC | 33 V |
| Switch-on delay | <1.3 µ |
| Switch-off delay | <1 µs |
| Voltage drop at max. load | <1 V |
| Leakage current | <20 µA |
| Short-circuit-proof | No |
| Protective circuit, load side | Free-wheeling diode |
| Contact type | 1 NO contact (Bipolar transistor) |
| max. switching frequency (DC control voltage) | 100 kHz |
| Nominal auxiliary voltage | 24 V DC ± 20 % / max. 110 mA |
| Rail | TS 35 |
| Colour | black |
| UL 94 flammability rating | V-0 |
| UL94 flammability rating component |
|
| Rated voltage | 300 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Clearance and creepage distances for control side - load side | > 3 mm |
| Dielectric strength for control side - load side | 3 KVeff / 1 Min. |
| Dielectric strength to mounting rail | 4 kVeff / 1 Min. |
| Impulse withstand voltage | 4 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate No. (DNV) | TAE000033E |
| Certificate no. (cULus) | E141197 |
| Wire connection method | Screw connection |
| Stripping length, rated connection | 7 mm |
| Tightening torque, min. | 0,4 Nm |
| Tightening torque, max. | 0,6 Nm |
| Clamping range, rated connection | 2,5 mm² |
| Clamping range, min. | 0,5 mm² |
| Clamping range, max. | 4 mm² |
| Wire cross-section, solid, min. | 0,5 mm² |
| Wire cross-section, solid, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross section, finely stranded, max. | 2,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.6 x 3.5 mm |
| Product information | The cable lengths must not exceed 30 m. |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35550) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_212465) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.8937920000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8937920000) |
| User Documentation | [Beipackzettel / Package Insert – multilingual](https://mdcop.weidmueller.com/mediadelivery/asset/900_36017) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001504 |
| ETIM 7.0 | EC001504 |
| ETIM 8.0 | EC001504 |
| ETIM 9.0 | EC001504 |
| ECLASS 9.0 | 27-37-16-04 |
| ECLASS 9.1 | 27-37-16-04 |
| ECLASS 10.0 | 27-37-16-04 |
| ECLASS 11.0 | 27-37-16-04 |
| ECLASS 12.0 | 27-37-16-04 |
| ECLASS 13.0 | 27-37-16-04 |
| ECLASS 14.0 | 27-37-16-04 |
| Approvals |     |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E141197 |
