Eigenschappen

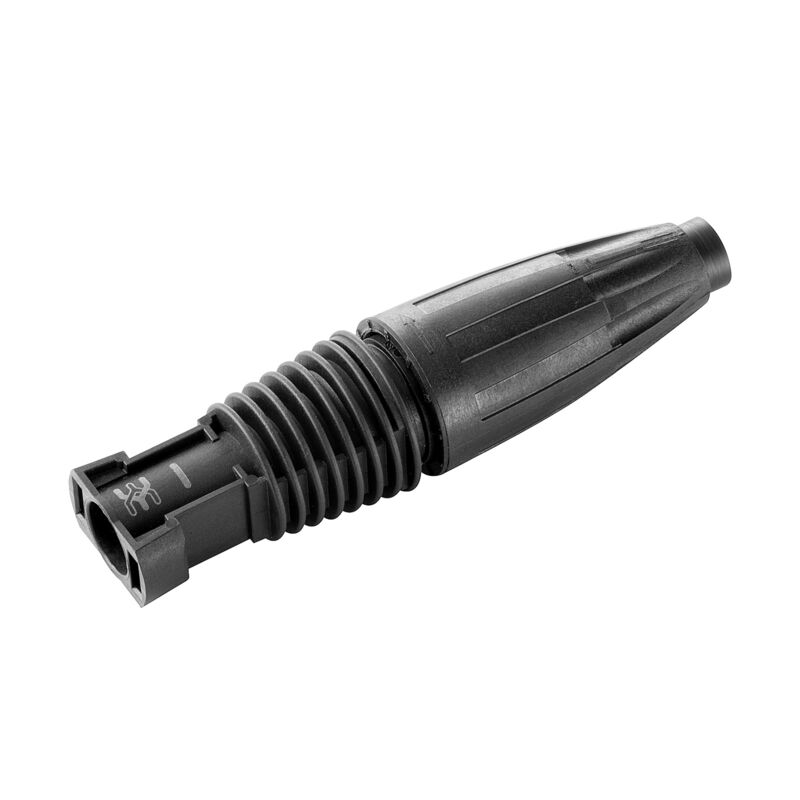

| Version | Photovoltaics, Plug-in connector, PUSH IN connection, male |
| Order No. | 1303490000 |
| Type | PV-STICK- VPE10 |
| GTIN (EAN) | 4050118102529 |
| Qty. | 10 items |
| Net weight | 16,713 g |
| Continuous operating temp., min. | -40 °C |
| Continuous operating temp., max. | 85 °C |
| Approvals | TÜV Rheinland (IEC 62852) |
| Cable type | EN 50618:2014 |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
| Outer cable diameter, max. | 7,6 mm |
| Outer cable diameter, min. | 5,4 mm |
| Permitted connecting cable |
BETAflam® Solar 125 flex 1500 V DC, 4.00 mm2
BETAflam® Solar 125 RV flex 1500 V DC, 6.00 mm2 |
| Pollution severity | 3 (2 within the sealed area) |
| Protection degree |
IP65
in closed state IP2x open IP67 IP68 |
| Rated current | 30 A |
| Rated voltage | 1500 V DC (IEC) |
| Time interval | 2 years |
| Approval/Certificate/Document of Conformity |
[TÜV PV 2021_EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_189247)
[TÜV PV 2021_DE](https://mdcop.weidmueller.com/mediadelivery/asset/900_189248) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79470) |
| Product Change Notification |
[20210127 Technical change to PV - STICK](https://mdcop.weidmueller.com/mediadelivery/asset/900_189321)
[20210127 Technische Änderung zu PV - STICK](https://mdcop.weidmueller.com/mediadelivery/asset/900_189322) |
| User Documentation | [Instruction Sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_43130) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002928 |
| ETIM 7.0 | EC002928 |
| ETIM 8.0 | EC002928 |
| ETIM 9.0 | EC002928 |
| ECLASS 9.0 | 22-57-92-03 |
| ECLASS 9.1 | 27-44-01-07 |
| ECLASS 10.0 | 27-44-01-07 |
| ECLASS 11.0 | 22-57-02-92 |
| ECLASS 12.0 | 22-57-02-92 |
| ECLASS 13.0 | 22-57-02-92 |
| Approvals |   |
| ROHS | Conform |
