SAIL-M12BW-3L2.0U
SAIL-M12BW-3L2.0U
Dimensioned drawing
Socket angled
SAIL-M12BW-3L2.0U
Pole scheme
Socket
SAIL-M12BW-3L2.0U
Wiring diagram

SAIL-M12BW-3L2.0U

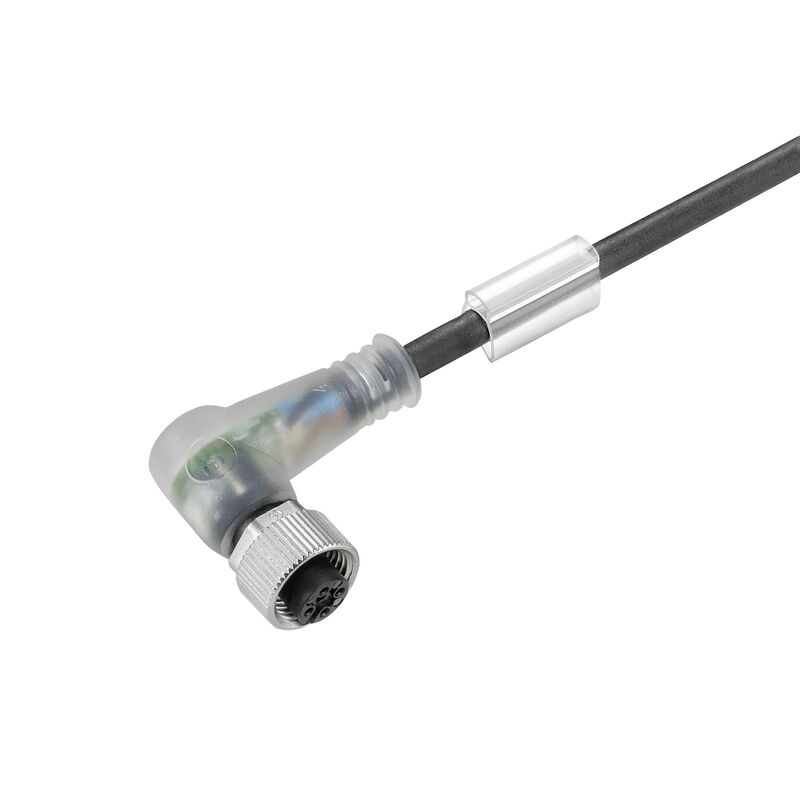

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 2 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Tuotteen tunnus 9457800200
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 6 Samankaltaiset tuotteet 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 2 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Référence
9457800200
Tipo
SAIL-M12BW-3L2.0U
GTIN (EAN)
4032248227976
Qty.
1 items

Dimensions and weights

Diameter
3,8 mm
Net weight
53,68 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant with exemption
Exemption RoHS (le cas échéant/connue)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

PP
Acceleration
5 m/s²
Außendurchmesser
3.8 mm ± 0.15 mm
Bending cycles
12 Mio
Bending cycles at torsion
> 5 Mio.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
2 m
Colour coding
brown
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Irradiation crosslinked
No
LABS-free
Yes
Length of torsion
1 m
Materiál pláště hygroskopický
Yes
Number of poles
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No

General technical data

Cicli di inserimento
≥ 100
Codage
A-coded
Corrente nominale
4 A
Csatlakozási menet
M12
Grado di protezione
IP67
IP68
when screwed in
IP65
IP66
LED
Yes
Materiale base della custodia
PUR
Moment dokręcający
M12: 0.8 - 1.2 Nm
Resistenza d'isolamento
108 Ω
Tensione nominale
24 V
Threaded ring material
Diecast zinc
Változat
Socket, angled
Zakres temperatury obudowy
-25…+85 °C
Érintkező felület
Gold-plated
오염 심각도
3
점퍼 연결
No

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
24 V

General standards

Certificate No. (CSA)
200039-2372994
Certificate No. (UL)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Штекер левый
M12, A-coded, IP69, female contact, angled 90°, Plastic, LED, unshielded

Plug, right

Wtyk po prawej
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
