SAIL-M12BW-3L7.5T
SAIL-M12BW-3L7.5T
Dimensioned drawing
Socket angled
SAIL-M12BW-3L7.5T
Pole scheme
Socket
SAIL-M12BW-3L7.5T
Wiring diagram

SAIL-M12BW-3L7.5T

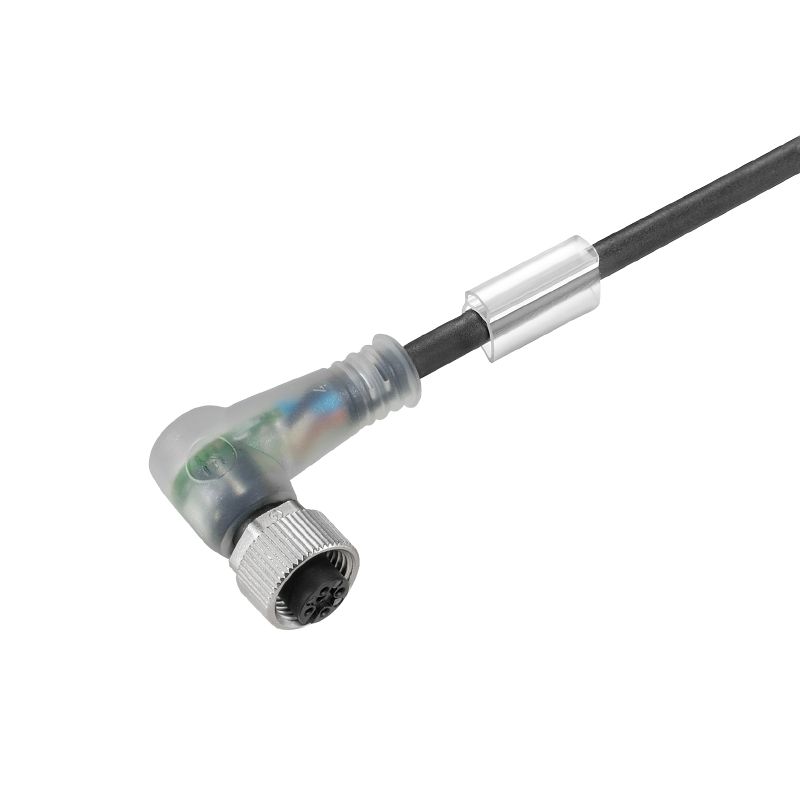

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 7.5 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No

Tuotteen tunnus 1004330750
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 7 Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a5387a11-3584-42f1-9c6a-815af76ec080/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E307231

General ordering data

Ausfuehrung
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 7.5 m, Socket, angled, Shielded: No, LED: Yes, Sheath material: PUR, Halogen: No
Best.-Nr.
1004330750
Art
SAIL-M12BW-3L7.5T
GTIN (EAN)
4032248847679
Qty.
1 items

Dimensions and weights

Net weight
246 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS-Ausnahme (falls zutreffend/bekannt)
6c, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Cable length
7,5 m
Colour coding
brown
blue
black
Configurable cable length
No
Core cross-section
0,34 mm²
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Number of poles
3
Outer cladding in accordance with UL AWM style
20233 (80 °C / 300 V)
Outside diameter
4.9 mm ± 0.2 mm
Resistant to welding beads
Yes
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
200 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-30...105 °C
Temperature range, stationary
-40...105 °C
Torsion resistance
360 °/m
Welding spark resistance
Yes

General technical data

Anschlussgewinde
M12
Anzugsdrehmoment
M12: 0.8 - 1.2 Nm
Ausführung
Hona, vinklad
Codierung
A-coded
gebrückt
No
Gehäusebasismaterial
PUR
Isolationswiderstand
108 Ω
Kontaktoberfläche
Gold-plated
LED
Yes
Material Gewindering
Diecast zinc
Nennspannung
24 V
Nennstrom
4 A
Schutzart
IP67
IP68
when screwed in
IP65
IP66
Steckzyklen
≥ 100
Temperaturbereich Gehäuse
-25…+85 °C
Verschmutzungsgrad
3

Electrical properties

Isolationswiderstand
108 Ω
Nennspannung
24 V

General standards

Certificate No. (UL)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Stecker links
M12, A-coded, IP69, female contact, angled 90°, Plastic, LED, unshielded

Plug, right

Stecker rechts
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
