Eigenschappen
| Version | Interface, RS, 2 x AKB (50P), LM2NZF 5.08mm |
| Order No. | 1384080000 |

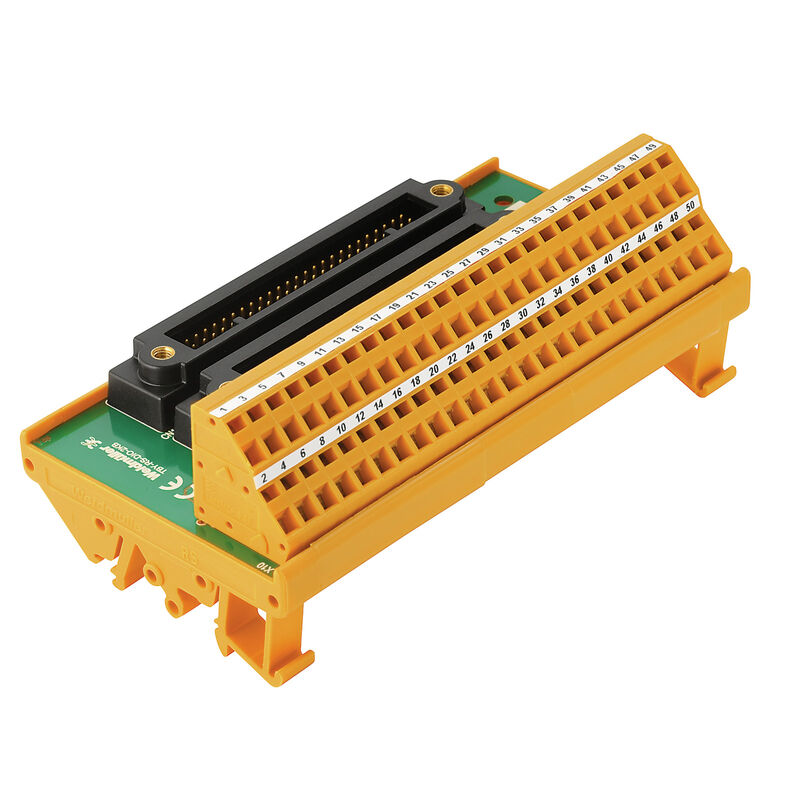

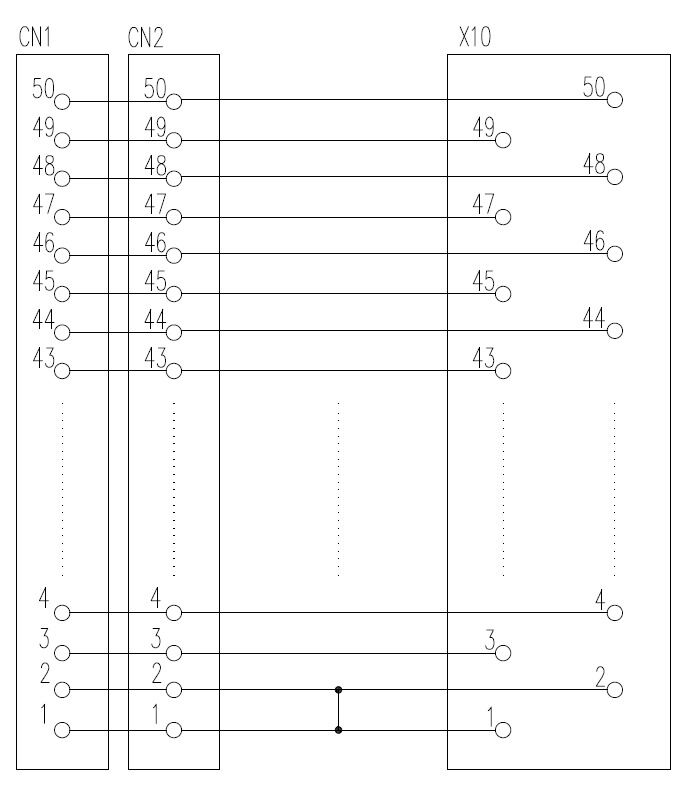

| Type | TBY-C3-UNIV-2KB-Z |
| GTIN (EAN) | 4050118185492 |
| Qty. | 1 items |
| Depth | 52 mm |
| Depth (inches) | 2,047 inch |
| Height | 70 mm |
| Height (inches) | 2,756 inch |
| Width | 135 mm |
| Width (inches) | 5,315 inch |
| Net weight | 157 g |
| Storage temperature | -40...85 °C |
| Operating temperature | -25...70 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 129f70cd-a122-4009-92ba-8bd2209bc45b |
| LED status display per channel | No |
| Disconnection per channel | No |
| Voltage point of measurement | No |
| Current-measuring testpoint | No |
| Type of test point | No |
| Switch | No |
| Fuse per channel | No |
| LED status of the supply voltage | No |
| Power supply fuse | No |
| Connection (field side) | LM2NZF 5.08mm |
| Connection on control side | 2 x AKB (50P) |
| Number of poles (control side) | 50-pole plug |
| Operating voltage | 50 V AC / 70 V DC |
| Max. current per channel | 1 A |
| Total operating current | 1 A |
| Rated insulation voltage | < 50 V AC |
| Surge voltage category | III |
| Pollution severity level | 2 |
| Pulse voltage test (1,2/50μs) | 0,8 kV |
| Insulation test voltage AC | 0,35 kV |
| Clamping range, max. | 2,5 mm² |
| Clamping range, min. | 0,13 mm² |
| Flexible with sleeve, max. | 1,5 mm² |
| Flexible with sleeve, min. | 0,25 mm² |
| Flexible, max. H05(07) V-K | 1,5 mm² |
| Flexible, min. H05(07) V-K | 0,2 mm² |
| Max. wire cross-section, AWG | AWG 14 |
| Min. wire cross-section, AWG | AWG 24 |
| Sleeve with plastic collar, max. | 1,5 mm² |
| Solid, max. H05(07) V-U | 2,5 mm² |
| Solid, min. H05(07) V-U | 0,2 mm² |
| Stripping length | 7,5 mm |
| Type of connection | Tension-clamp connection |
| Type of connection | Tension-clamp connection |
| Clamping range, min. | 0,13 mm² |
| Clamping range, max. | 2,5 mm² |
| Solid, min. H05(07) V-U | 0,2 mm² |
| Solid, max. H05(07) V-U | 2,5 mm² |
| Flexible, min. H05(07) V-K | 0,2 mm² |
| Flexible, max. H05(07) V-K | 1,5 mm² |
| Flexible with sleeve, max. | 1,5 mm² |
| Flexible with sleeve, min. | 0,25 mm² |
| Ferrule with plastic collar, max. | 1,5 mm² |
| Wire cross-section, min. AWG | AWG 14 |
| Wire cross-section, max. AWG | AWG 24 |
| Stripping length | 7,5 mm |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002780 |
| ETIM 7.0 | EC002780 |
| ETIM 8.0 | EC002780 |
| ETIM 9.0 | EC002780 |
| ECLASS 9.0 | 27-14-11-52 |
| ECLASS 9.1 | 27-14-11-52 |
| ECLASS 10.0 | 27-14-11-52 |
| ECLASS 11.0 | 27-14-11-52 |
| ECLASS 12.0 | 27-14-11-52 |
| ECLASS 13.0 | 27-14-11-52 |
| ECLASS 14.0 | 27-14-11-52 |
| Approvals |  |
| ROHS | Conform |
