Egenskaber

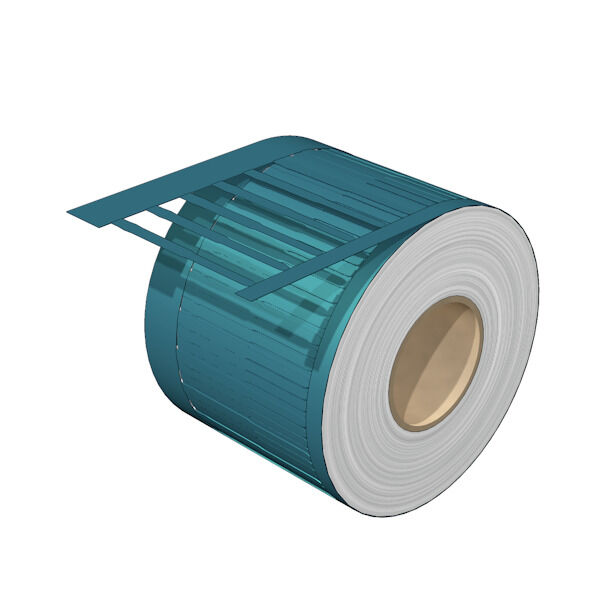

| Version | TM-I, Insert markers, 1.3 - 35 mm, 23 x 4 mm, blue |
| Order No. | 2005970000 |
| Type | TM-I 23 MM BL |
| GTIN (EAN) | 4050118390261 |
| Qty. | 2.000 Styk |
| Height | 23 mm |
| Height (inches) | 0,906 inch |
| Width | 4 mm |
| Width (inches) | 0,157 inch |
| Net weight | 0,181 g |
| Operating temperature range | -40...150 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | blue |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | No |
| Material | Polyester |
| Number per roll | 2000 |
| Operating temperature range | -40...150 °C |
| Operating temperature range, max. | 150 °C |
| Operating temperature range, min. | -40 °C |
| Orientation of print | horizontal and vertical |
| Printed characters | without |
| Type of printing | neutral |
| UL 94 flammability rating | HB |
| Width | 4 mm |
| Conductor cross-section, max. | 70 mm² |
| Conductor O.D. | 1.3 - 35 mm |
| Conductor O.D., max. | 35 mm |
| Conductor O.D., min. | 1,3 mm |
| Cross-section for connected wire | 70 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_65721) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2005970000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2005970000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ETIM 10.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ECLASS 15.0 | 27-28-11-02 |
| ROHS | Conform |
