ACT20M-FRQ-AO-X-S
Product image
ACT20M-FRQ-AO-X-S

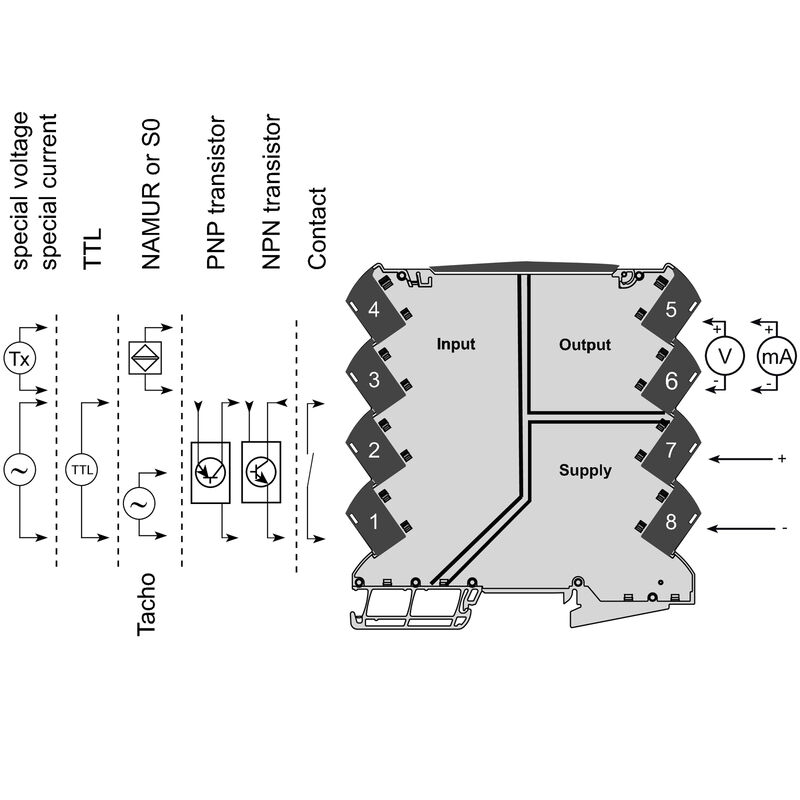

Connection diagram
ACT20M-FRQ-AO-X-S
Dimensioned drawing
ACT20M-FRQ-AO-X-S

ACT20M-FRQ-AO-X-S

Frequency signal converter, exclusive of rail bus supply, Input : Frequency, Output : 0(4)-20 mA, 0(2)-10 V

Ürün No. 2825130000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Yazılım desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input Output General data Insulation coordination Connection data EMC conformity and approvals Part description Classifications

Approvals

ROHS
Conform

General ordering data

Version
Frequency signal converter, exclusive of rail bus supply, Input : Frequency, Output : 0(4)-20 mA, 0(2)-10 V
Order No.
2825130000
Type
ACT20M-FRQ-AO-X-S
GTIN (EAN)
4064675360940
Qty.
1 adet

Dimensions and weights

Depth
114,3 mm
Depth (inches)
4,5 inch
Height
112,5 mm
Height (inches)
4,429 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
70 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Humidity
0...95 % (no condensation)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Częstotliwość wejściowa
0…100kHz
adjustable
Number inputs
1
Питание датчика
5…17 V
센서
NAMUR sensor, according to EN60947-5-6
NPN / PNP transistor (trig-level low: ≤4 V high: ≥7 V )
TTL (trig-level low: ≤0.8 V high: ≥2.0 V)
Tacho (trig-level low: ≤-50 mV high: ≥+50 mV)
Special current (trig-level: user-defined)
Special voltage (trig-level: user-defined)
S0 (trig-level low: ≤2.2 mA high: ≥9.0 mA )

Output

Comportement de la sortie en cas de panne
3,5 mA
Kimeneti viselkedés hiba előtt felskálázott
23 mA
Limitazione segnale di uscita
<28 mA
Load impedance current
≤ 600 Ω
load impedance voltage
≥ 10 kΩ
Number of outputs
1
Output current
0...20 mA
4...20 mA
in case of sensor error
downscale (3,5 mA)
upscale (23 mA)
Output voltage, note
0(2)...10 V
0(1)...5 V
0(0,2)…1 V
Tipo
active
connected control must be passive

General data

Accuracy
Basic accuracy: 0.0002 Hz
Configuration
DIP switch
With FDT/DTM software
Mounting rail
TS 35
Nominal power consumption
0,5 VA
Operating altitude
≤ 2000 m
Power consumption, max.
1,2 W
Power consumption, typ.
0,65 W
Protection degree
IP20
Step response time
≤ 30 ms
(0…90% / 100…10% of input level)
Supply voltage
24 V DC ± 30 %
Temperature coefficient
≤0,01% of measurement range⁄°C

Insulation coordination

EMC-Normer
IEC 61326-1
Galvanic isolation
3-way isolator
Insulation voltage
2.5 kVeff /1 min.
Pollution severity
2
Rated voltage
300 Veff
300 V
Överspänningskategori
II

Connection data

Type of connection
Screw connection
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 14

EMC conformity and approvals

EMV-Normen
IEC 61326-1

Part description

Product description
The universal frequency measuring transducer, which can be configured via software, disconnects and converts input signals (frequency, Namur, NPN, PNP, speedometer, TTL and S0) into an active analogue standard output signal. The power supply is galvanically isolated from the input and output (3-way isolation) by means of direct wiring. The model ACT20M-FRQ-AO-S can be supplied via the Weidmüller DIN rail bus

Classifications

ETIM 8.0
EC002918
ETIM 9.0
EC002918
ETIM 10.0
EC002918
ECLASS 14.0
27-21-01-28
ECLASS 15.0
27-21-01-28
