Egenskaber

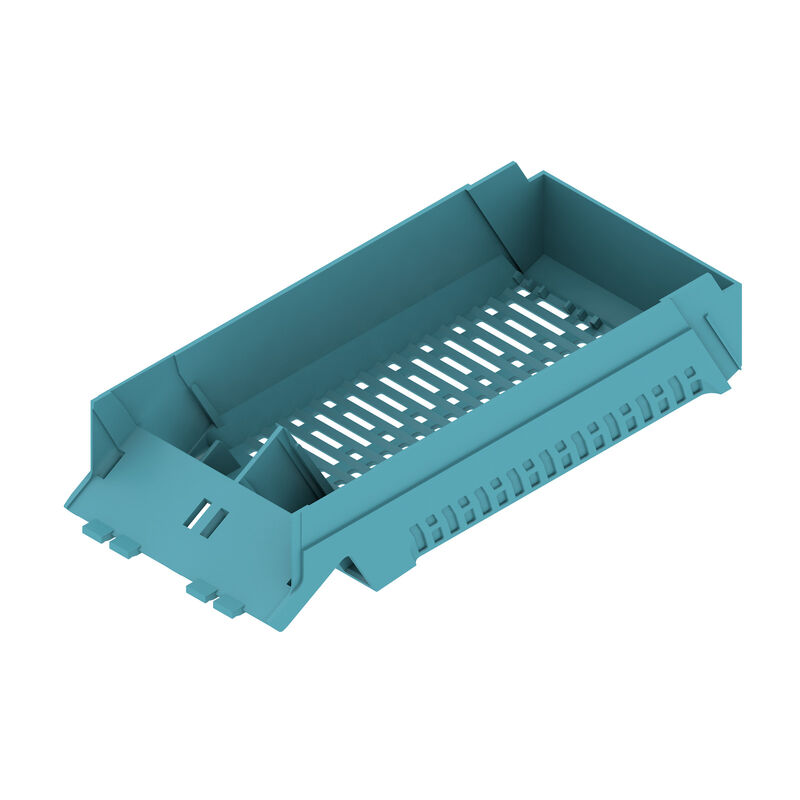

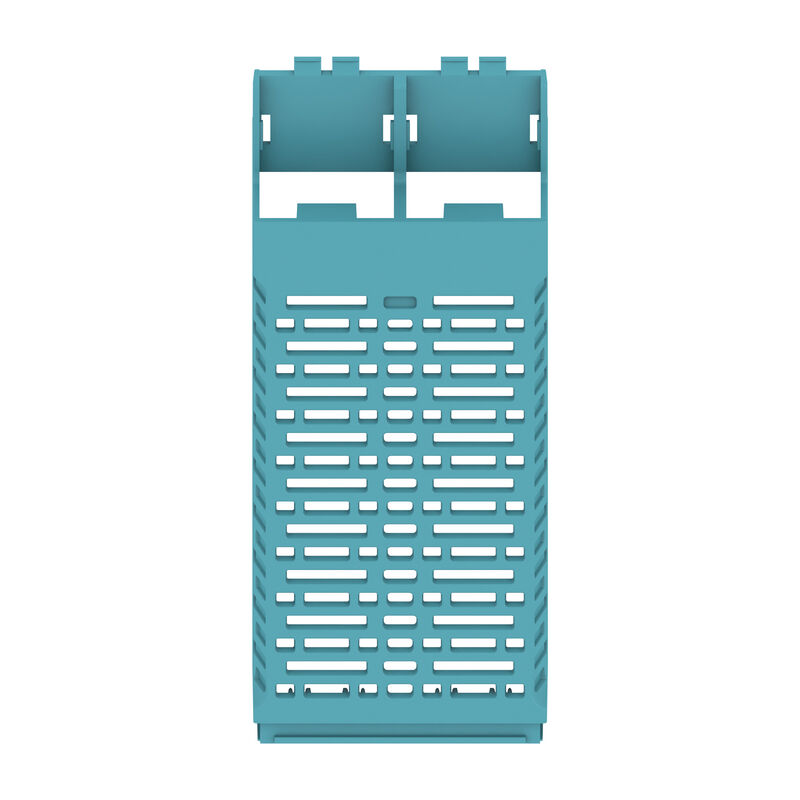

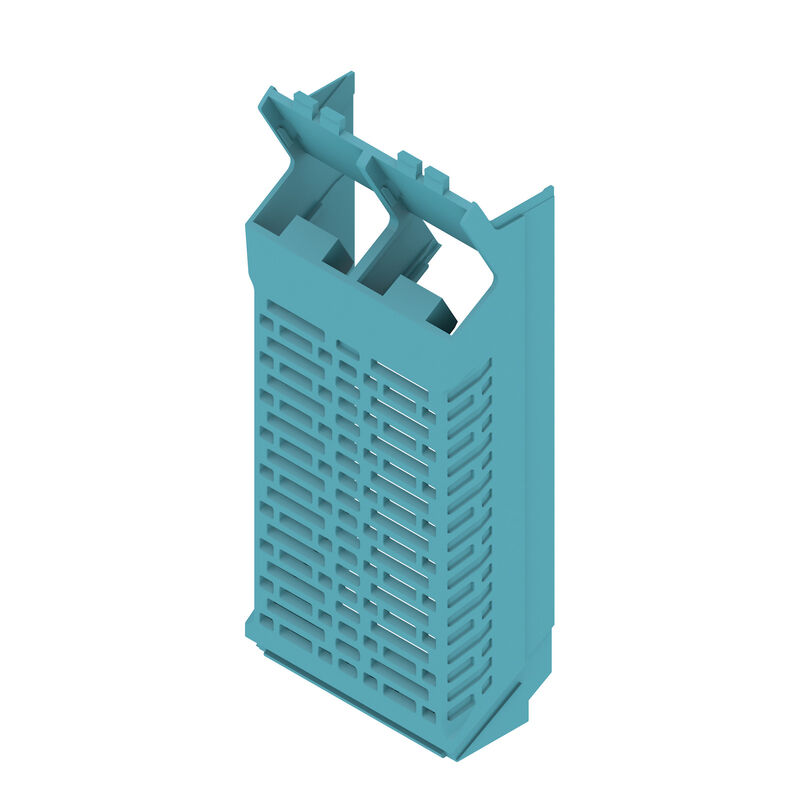

| Version | Side element, OMNIMATE Housing - series CH20M light blue, Side element, Width: 45.3 mm |
| Order No. | 2579670000 |
| Type | CH20M45 S P2SC/P2SC BL 2013 |
| GTIN (EAN) | 4050118588620 |
| Qty. | 6 Styk |
| Depth | 105,3 mm |
| Depth (inches) | 4,146 inch |
| Height | 22,8 mm |
| Height (inches) | 0,898 inch |
| Width | 45,3 mm |
| Width (inches) | 1,783 inch |
| Net weight | 19,583 g |
| Operating temperature range | -40 °C...120 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Comparative Tracking Index (CTI) | 600 ≤ CTI |
| Insulating material | PA 66 GF 30 |
| Insulating material group | I |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | light blue |
| Colour chart (similar) | RAL 5012 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Cut out as preperation for functional port integrated | No |
| Number of connection levels | 1 |
| Number of poles, max. | 8 |
| Number of slots for female plugs | 2 |
| Number of ventilation openings | 4 |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54879) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2579670000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2579670000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-02 |
| ECLASS 14.0 | 27-19-06-02 |
| ROHS | Conform |
Tilbehør
-
Produkt ID:1221310000Pakningsenhed:50 Styk
Hood, OMNIMATE Housing - series CH20M black, Side element cover, Width: 22.5 mm
-
Produkt ID:1432890000Pakningsenhed:50 Styk
Hood, OMNIMATE Housing - series CH20M Light Grey, Side element cover, Width: 22.5 mm
-
Produkt ID:1472830000Pakningsenhed:50 Styk
Hood, OMNIMATE Housing - series CH20M Agate grey, Side element cover, Width: 22.5 mm
-
Produkt ID:1413740000Pakningsenhed:50 Styk
Hood, OMNIMATE Housing - series CH20M Graphite grey, Side element cover, Width: 22.5 mm
Electronics HousingsModular electronics housingsCH20M AD SHL 5.00 - Side element coverCH20M AD SHL 5.00/04 - Side element cover for CH20M22, CH20M45, CH20M67
Anvendte produkter
-
Produkt ID:1104410000Pakningsenhed:6 Styk
Modular housing, OMNIMATE Housing - series CH20M black, Base element, Width: 45 mm
Electronics HousingsModular electronics housingsCH20M45 - Modular electronics housing, width of 45 mmCH20M45 B - Base elementCH20M45 B - Base element
