Özellikler

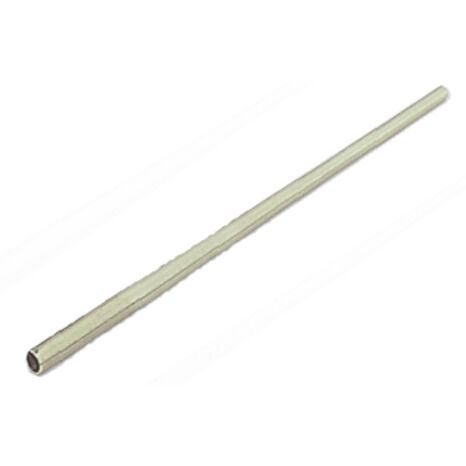

| Version | CableLine, Mounting mandrel |
| Order No. | 0559300000 |
| Type | CLI RS 4 MDCLI C1+02 |
| GTIN (EAN) | 4008190112400 |
| Qty. | 1 adet |
| Depth | 4 mm |
| Depth (inches) | 0,157 inch |
| Height | 100 mm |
| Height (inches) | 3,937 inch |
| Width | 4 mm |
| Width (inches) | 0,157 inch |
| Length | 100 mm |
| Length (inches) | 3,937 inch |
| Net weight | 0,027 g |
| Operating temperature range | -30...80 °C |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 70267faf-4457-48b8-92bf-2799db2a9227 |
| Colour | silver |
| Halogen | Yes |
| Length | 100 mm |
| Material | Steel |
| Operating temperature range | -30...80 °C |
| Operating temperature range, max. | 80 °C |
| Operating temperature range, min. | -30 °C |
| Printed characters | Numbers |
| Recommended industries |
Process
Machinery |
| Type of printing | Standard |
| UL 94 flammability rating | V-0 |
| Version | MultiPack |
| Width | 4 mm |
| Conductor cross-section, max. | 3,5 mm² |
| Conductor cross-section, min. | 1,5 mm² |
| Conductor O.D. | 2.5 - 4.5 mm |
| Conductor O.D., max. | 4,5 mm |
| Conductor O.D., min. | 2,5 mm |
| Cross-section for connected wire | 1.5 - 3.5 mm² |
| Halogen | Yes |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=0559300000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
