Özellikler

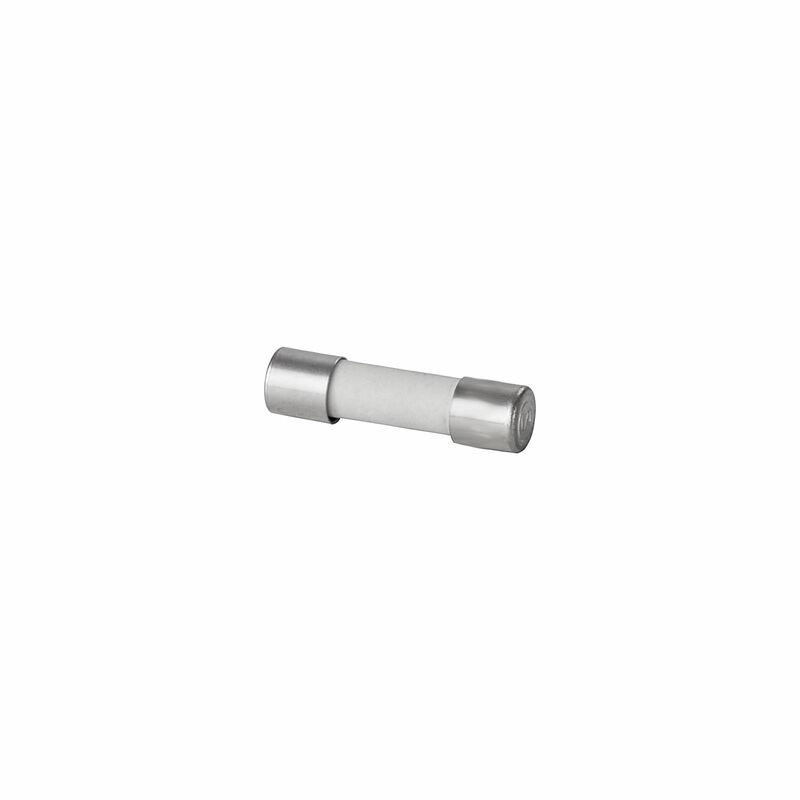

| Version | Miniature fuse, quick-acting, 0.63 A, G-Si. 5 x 20 |
| Order No. | 0439000000 |
| Type | G 20/0.63A/F |
| GTIN (EAN) | 4008190131210 |
| Qty. | 10 adet |
| Depth | 5 mm |
| Depth (inches) | 0,197 inch |
| Height | 20 mm |
| Height (inches) | 0,787 inch |
| Width | 5 mm |
| Width (inches) | 0,197 inch |
| Net weight | 1,1 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | e55693ba-5f1b-4f6e-b99e-8d57d3de2235 |
| Colour | Light Grey |
| Version | Fuse accessories |
| Cartridge fuse | G-Si. 5 x 20 |
| Characteristics | quick-acting |
| Colour | Light Grey |
| Current | 0,63 A |
| Melting integral | 0,31 A²s |
| Optical function display | No |
| Power output (@ 1.5 In) | 1,1 W |
| Rated breaking capacity | 1,5 kA |
| Version | Fuse accessories |
| Voltage drop | 550 mV |
| Rated voltage | 250 V |
| Rated current | 0,63 A |
| User Documentation | [StorageConditionsTerminalBlocks](https://mdcop.weidmueller.com/mediadelivery/asset/900_87149) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000035 |
| ETIM 7.0 | EC000035 |
| ETIM 8.0 | EC002704 |
| ETIM 9.0 | EC002704 |
| ECLASS 9.0 | 27-14-20-01 |
| ECLASS 9.1 | 27-14-20-01 |
| ECLASS 10.0 | 27-14-20-01 |
| ECLASS 11.0 | 27-14-20-01 |
| ECLASS 12.0 | 27-14-20-01 |
| ECLASS 13.0 | 27-14-20-01 |
| ECLASS 14.0 | 27-14-20-01 |
| ROHS | Conform |
