IE-C5DE4UP0015PCSXXX-E
IE-C5DE4UP0015PCSXXX-E
Wiring diagram

IE-C5DE4UP0015PCSXXX-E

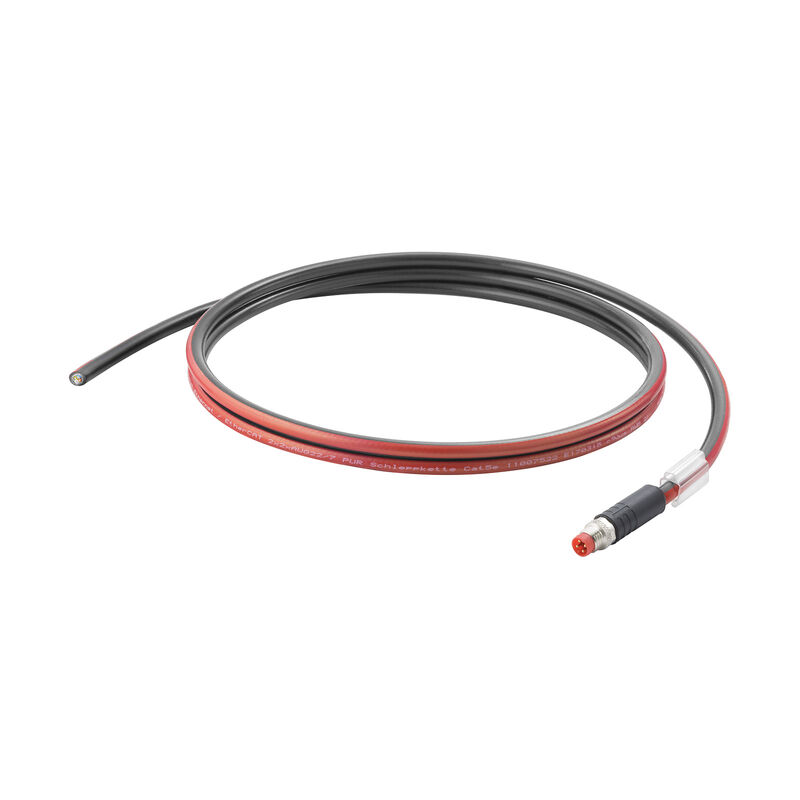

Dragline cable, M8 P-code - IP67 straight pin, Open, Cat. 5e, PUR, 1.5 m

항목 번호 2717750015
Gegevensblad downloaden Engineering Support
Productos relacionados 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable General technical data Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, M8 P-code - IP67 straight pin, Open, Cat. 5e, PUR, 1.5 m
Order No.
2717750015
Type
IE-C5DE4UP0015PCSXXX-E
GTIN (EAN)
4050118779998
Qty.
1 Styk

Dimensions and weights

Length
1,5 m
Length (inches)
59,055 inch
Net weight
400 g

Temperatures

Operating temperature
-40 °C...80 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Technical specifications for cable

Colour coding
white
yellow
blue
orange
Cykle gięcia
2 Mio
Halogenki
halogen-free, according to IEC 60754
Idoneità all'installazione con catene portacavi
No
izolacja
Polyolefin
Köpeny színe
black
Mantelmaterial
PUR
Number of poles
4
Shielded
Yes
Temperature range, moving
-30...70 °C
Temperature range, stationary
-40...80 °C
Tenue aux huiles
in accordance with IEC 60811:404
Test voltage: wire-wire-shield
1 kV DC, 1 min
1000 Veff, 50 Hz, 1 min
Огнестойкость
Yes
와이어 개수
4

General technical data

Protection degree
IP67

Plug, left

Plug left
M8, P-coded, IP67, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
