MTS 7S/03 H T4 B T
Product image
MTS 7S/03 H T4 B T
Product image
MTS 7S/03 H T4 B T
MTS 7S/03 H T4 B T
MTS 7S/03 H T4 B T
MTS 7S/03 H T4 B T

MTS 7S/03 H T4 B T

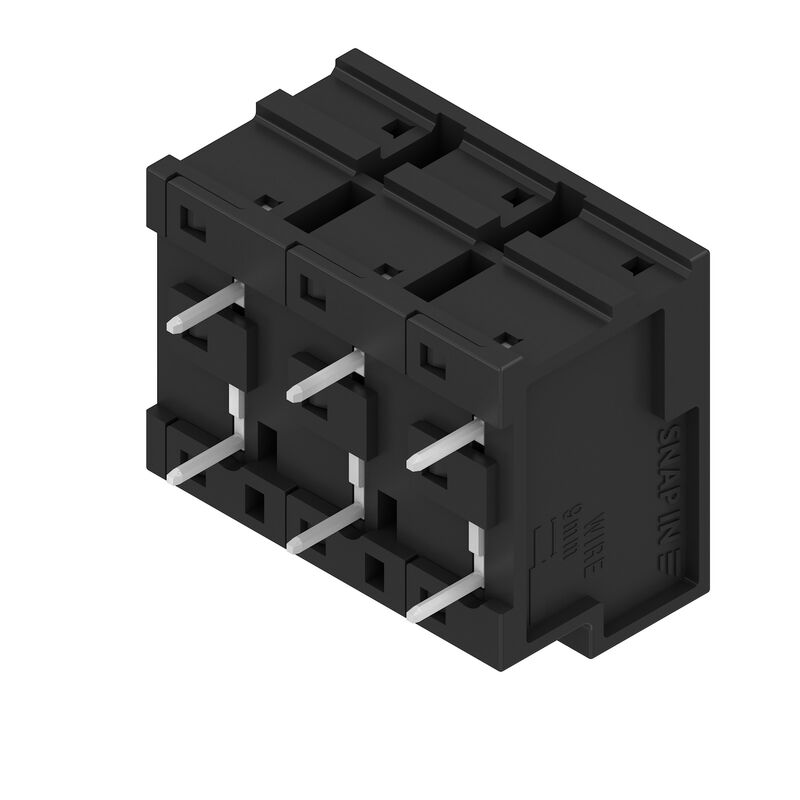

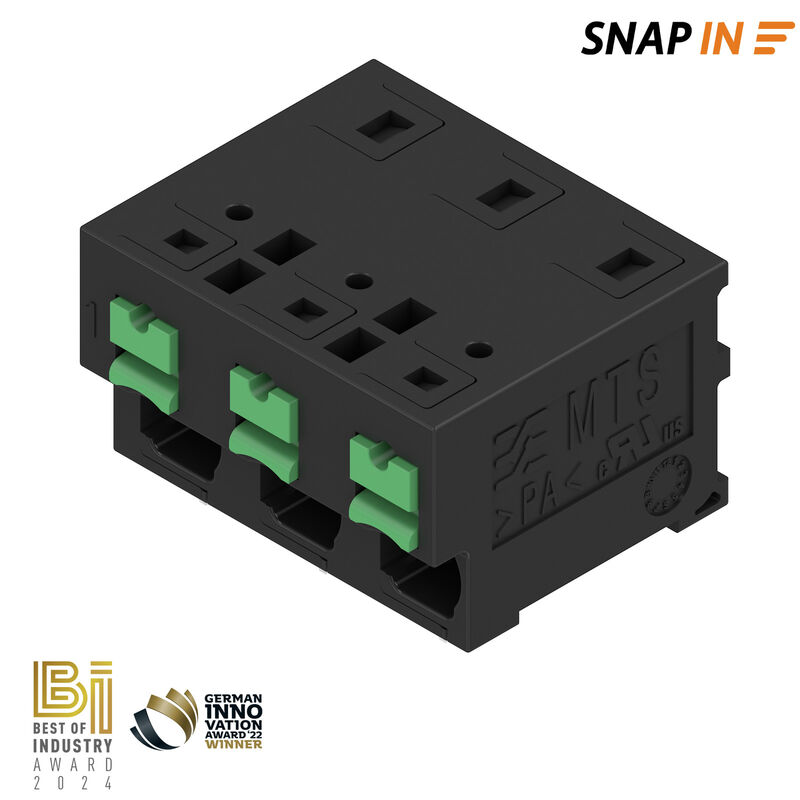

Printed circuit board terminals, PCB terminal, THT/THR solder connection, Pitch in mm (P): 7.50 mm, Number of poles: 3, Tube

Product ID 3124620000
Gegevensblad downloaden Engineering Support
Verwante producten 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, PCB terminal, THT/THR solder connection, Pitch in mm (P): 7.50 mm, Number of poles: 3, Tube
N. d’ordine
3124620000
Típus
MTS 7S/03 H T4 B T
GTIN (EAN)
4099987278768
Qty.
23 items
Product data
IEC: 600 V / 32 A / 0.5 - 4 mm²
UL: 300 V / 20 A / AWG 20 - AWG 12
Packaging
Tube

Dimensions and weights

Profondeur
18,85 mm
Depth (inches)
0,742 inch
Magasság
16,7 mm
Height (inches)
0,657 inch
Height of lowest version
13,2 mm
Szélesség
22,3 mm
Width (inches)
0,878 inch
Net weight
5,76 g

Temperatures

Температура окружающей среды
-50 °C…120 °C
Installation temperature
-50 °C to +120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE 4.0
Wire connection method
SNAP IN with push button
Eigenschaft, Klemmstelle
WireReady
Mounting onto the PCB
THT/THR solder connection
Conductor outlet direction
90°
Pitch in mm (P)
7,5 mm
Pitch in inches (P)
0,295 "
Number of poles
3
Pin series quantity
1
Number of rows
1
Solder pin length (l)
3,5 mm
Solder pin dimensions
0.6 x 0.8 mm
Průměr otvoru pájecího očka (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
Stripping length
9 mm
Stripping length tolerance
  • min.:
    8 mm
  • max.:
    10 mm
L1 in mm
15 mm
L1 in inches
0,591 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Érintésvédelem a DIN VDE 57 106 szerint
sicurezza per le dita
Grado di protezione
IP20

Material data

Insulating material
PA 9T
Colour
black
Colour of operational elements
green
Colour chart (similar)
RAL 9011
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Tinning type
matt
Temperatura di magazzinaggio, min.
-40 °C
Temperatura di magazzinaggio, max.
70 °C
-50 °C
Temperatura d'esercizio , max.
120 °C

Conductors suitable for connection

Clamping range, min.
0,34 mm²
Clamping range, max.
4 mm²
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Stranded, min. H07V-R
0,5 mm²
Stranded, max. H07V-R
4 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,34 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Outer diameter of insulation, max.
4 mm
Clampable conductor
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025950000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9019160000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
32 A
Rated current, max. number of poles (Tu=20°C)
32 A
Rated current, min. number of poles (Tu=40°C)
32 A
Rated current, max. number of poles (Tu=40°C)
32 A
Rated voltage for surge voltage class / pollution degree II/2
600 V
Rated voltage for surge voltage class / pollution degree III/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/3
500 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 V
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
6 kV

Rated data acc. to CSA

Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated voltage (Use group F / UL 1059)
420 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 20
Wire cross-section, AWG, max.
AWG 12
Clearance distance, min.
6,92 mm
Creepage distance, min.
6,92 mm
Reference to approval values
W specyfikacji podano wartości minimalne, szczegóły – patrz certyfikat.

Important note

Соответствие IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Uwagi
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • During transport, it may rarely occur that the clamping points are already closed. The products remain fully functional. To reactivate the SNAP IN function, please press the activation button.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
