TRP 24VDC 2CO PB

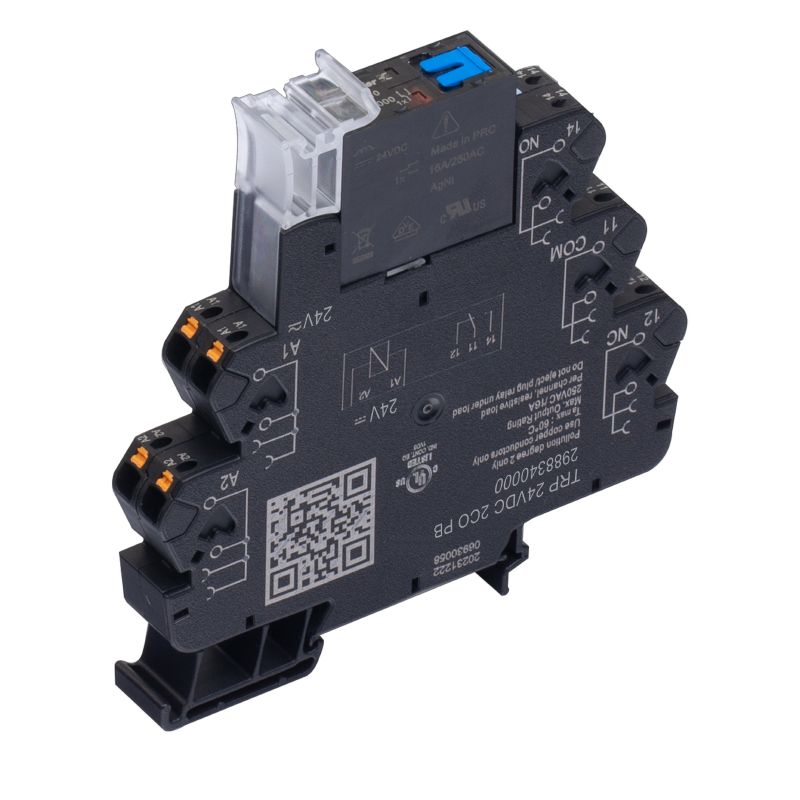

Illustrazione del prodotto
Come da figura
TRP 24VDC 2CO PB
Schema elettrico
TRP 24VDC 2CO PB
Graph
Curva limite di carico DC
Carico ohmico
TRP 24VDC 2CO PB
Dimensional drawing
TRP 24VDC 2CO PB
Miscellaneous
Codici dei modelli

TRP 24VDC 2CO PB

TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 8 A, PUSH IN, Test button available: Yes

Produkt ID 2988340000
Åbn i konfiguratoren
Download datablad Mühendislik desteği Ürün İndirmleri
Aksesuarlar 27 İlgili ürünler 5
Approvals General ordering data Dimensions and weights Temperature Shoda produktu s prostředím Rated data UL lato di comando Lastseite General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° Certificato (cULus)
E141197

General ordering data

Ausfuehrung
TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 8 A, PUSH IN, Test button available: Yes
Order No.
2988340000
Type
TRP 24VDC 2CO PB
GTIN (EAN)
4099986859142
Qty.
5 adet

Dimensions and weights

Depth
97,5 mm
Hloubka (v palcích)
3,839 inch
Altura
89,4 mm
Height (inches)
3,52 inch
Width
12,8 mm
Larghezza (pollici)
0,504 inch
Peso netto
61 g

Temperature

Temperatura de almacenamiento
-40 °C...70 °C
Ambient temperature
-40 °C…60 °C
Humidity
5...85 % rel. humidity, no condensation

Shoda produktu s prostředím

Состояние соответствия RoHS
V souladu s výjimkou
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Temperatura ambiente (operativa), max.
60 °C
Sezione di collegamento AWG, min.
AWG 26
Sezione di collegamento AWG, max.
AWG 14
Leiterart
rigid copper conductor
flexible copper conductor
Уровень загрязнения
2

lato di comando

Tensione nominale
24 V DC ±20 %
Rated current DC
16.7 mA
Мощность удержания
495 mW
Indicatore di stato
Green LED
Protective circuit
Free-wheeling diode
Reverse polarity protection
Coil voltage of the replacement relay deviating from the rated control voltage
No
Coil voltage of the replacement relay
24 V DC

Lastseite

Tensione di commutazione nominale
250 V AC
Непрерывный ток
8 A
Max. frequenza di commutazione con carico nominale
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
100 mA @ 10 V
Пусковой ток
30 A / 4 s
Potenza di commutazione AC (ohmica), max.
2000 VA
Potenza di commutazione DC (ohmica), max.
192W @ 24V
Задержка включения
≤ 15 ms
Ritardo alla disinserzione
≤ 16 ms
Circuito di protezione lato di carico
Free-wheeling diode
Reverse polarity protection
Contact type
2 CO contact (AgNi)
Mechanical service life
5 x 106 switching cycles

General data

Рабочая высота
≤ 2000 m
above sea level
Укомплектованная монтажная рейка
TS 35
Testknapp finns
Yes
Versión del pulsador de prueba
Låsbar testknapp
Återfjädrande testknapp
Mechanical switch position indicator
Yes
Colour
black
Componente classe d’infiammabilità UL94
  • Komponent:
    Housing
  • UL94 flammability rating:
    V-0
  • Komponente:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Pollution severity
2
Kategoria przepięciowa
III
Distanza in aria e superficiale lato comando/lato di carico
≥ 5.5 mm
Rigidità dielettrica lato comando - lato di carico
2.5 kVeff / 1 Min.
Type of isolation at input and output
reinforced insulation
Dielectric strength of open contact
1 kVeff / 1 min
Rigidità dielettrica rispetto alla guida di supporto
4 kVeff / 1 Min.
Tensione impulsiva massima
6 kV (1.2/50 µs)
Impulse withstand voltage at neighbouring contacts
4 kV (1.2/50 µs)
Védelmi osztály
IP20

Further details of approvals / standards

Сертификат № (cULus)
E141197

Connection data

Leiteranschlusstechnik
PUSH IN
Lunghezza di spellatura, collegamento di dimensionamento
9 mm
Campo di serraggio, collegamento di dimensionamento
1,5 mm²
Campo di sezioni, min.
0,14 mm²
Campo di sezioni, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Sezione di collegamento cavo, rigido, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Сечение подсоединяемого провода, тонкий скрученный, мин.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5 mm²
Wire cross-section, finely stranded, two clampable wires, max.
1 mm²
Dimensione lama
0.4 x 2.0 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
