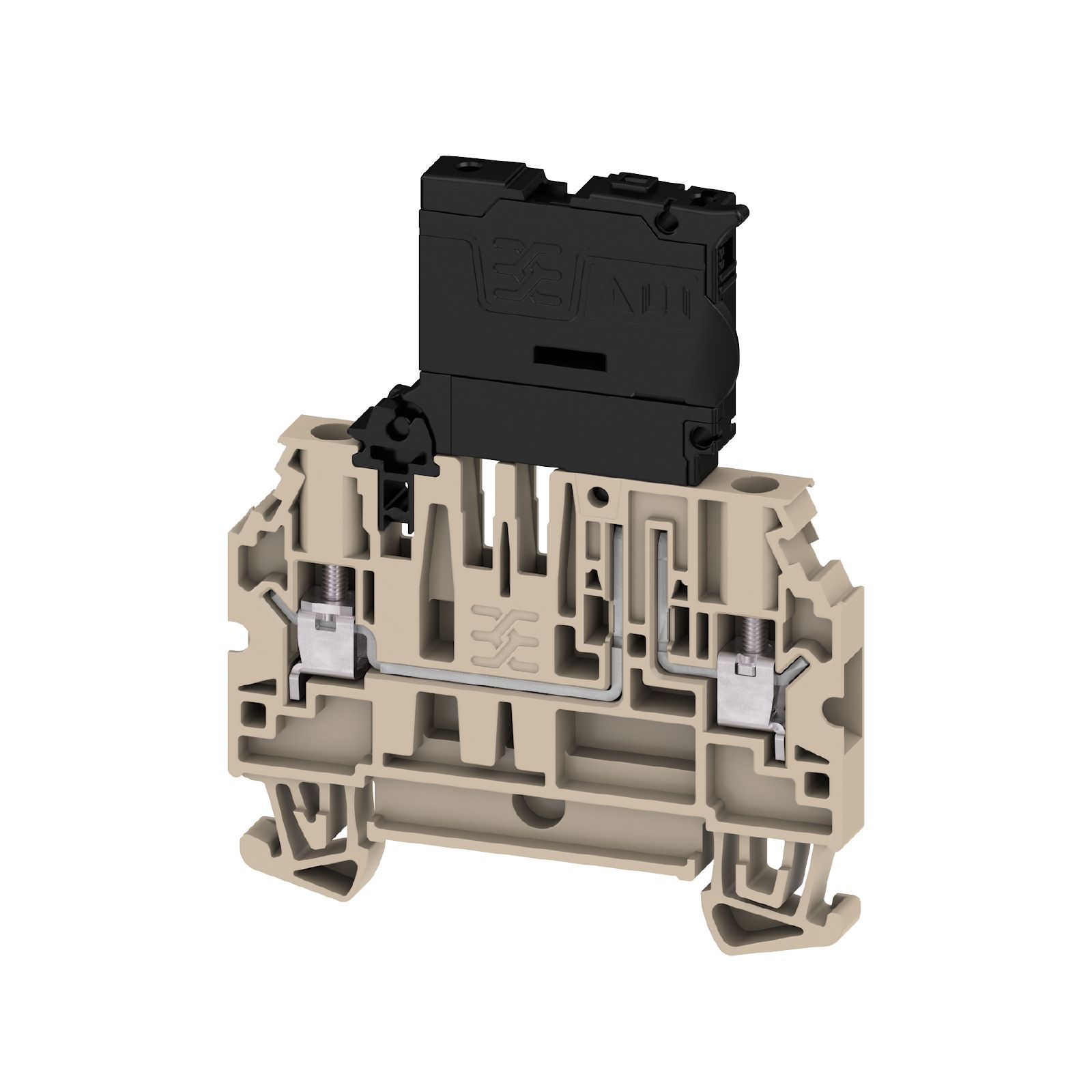

Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35

Produkt ID 2893040000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 106 Anvendte produkter 92
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Aaltri dati tecnici Conducteur raccordable (autre raccordement) Conductors for clamping (rated connection) Caractéristiques nominales selon CSA Общие сведения Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Fuse terminal, Screw connection, dark beige, 4 mm², 6.3 A, 150 V, Number of connections: 2, Number of levels: 1, TS 35
Best.-Nr.
2893040000
Tipo
W2C 4 FS 60-150V DB
GTIN(EAN)
4064675884620
Cantidad
50 Styk

Dimensions and weights

Tiefe
75 mm
Depth (inches)
2,953 inch
Posizione verticale
60 mm
Height (inches)
2,362 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
18,32 g

Temperatures

Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV20ATEX8502U
Certificate No. (IECEX)
IECEXTUR20.0014U
Strom (ATEX)
6.3 A
Wire cross section max. (ATEX)
4 mm²
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
4 mm²

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Aaltri dati tecnici

Explosion-tested version
No
Installation advice
TS 35
Open sides
right
Snap-on
Yes
Type of mounting
TS 35

Conducteur raccordable (autre raccordement)

Connection type, additional connection
Raccordement vissé

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
bliźniacza tulejka kablowa, min.
0,5 mm²
Clamping range, max.
6 mm²
Clamping range, min.
0,25 mm²
Clamping screw
M 3
Connection cross-section, stranded, max.
6 mm²
Connection direction
latéralement
Gauge to IEC 60947-1
A3
Number of connections
2
Section de raccordement du conducteur, souple, min.
0,25 mm²
Stripping length
8 mm
Tightening torque, max.
0,8 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Screw connection
Type of connection 2
Screw connection
Vezeték csatlakozási keresztmetszet, többeres, névleges csatlakozás, min.
0,25 mm²
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,25 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,25 mm²
Сечение подсоединяемого провода, тонкий скрученный, мин.
0,25 mm²
Сечение соединения проводов, твердое ядро, макс.
6 mm²
Сечение соединения проводов, твердое ядро, мин.
0,25 mm²
트윈 와이어 종단 페룰, 최대
1,5 mm²

Caractéristiques nominales selon CSA

Corriente Gr D (CSA)
5 A
Current size B (CSA)
10 A
Spannung Gr D (CSA)
600 V
Wire cross section min. (CSA)
24 AWG
Напряжение, класс B (CSA)
300 V
Напряжение, класс C (CSA)
300 V
Поперечное сечение провода, макс. (CSA)
12 AWG
Сертификат № (CSA)
227442-80219640
Ток, разм. C (CSA)
10 A

Общие сведения

Montageskena obestyckad
TS 35
przekrój przyłączeniowy przewodu AWG, maks.
AWG 10
Wskazówka montażowa
TS 35
Нормы
IEC 60947-7-3
Поперечное сечение подключаемого провода AWG, мин.
AWG 24

Rating data

Rated cross-section
4 mm²
Rated voltage
150 V
Rated DC voltage
150 V
Nominal current
6,3 A
Current at maximum wires
6,3 A
Standards
IEC 60947-7-3
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
6 kV
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
24 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
24 AWG

Important note

Product information
The voltage depends on the selected fuse element or the selected indicator light

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
