Özellikler

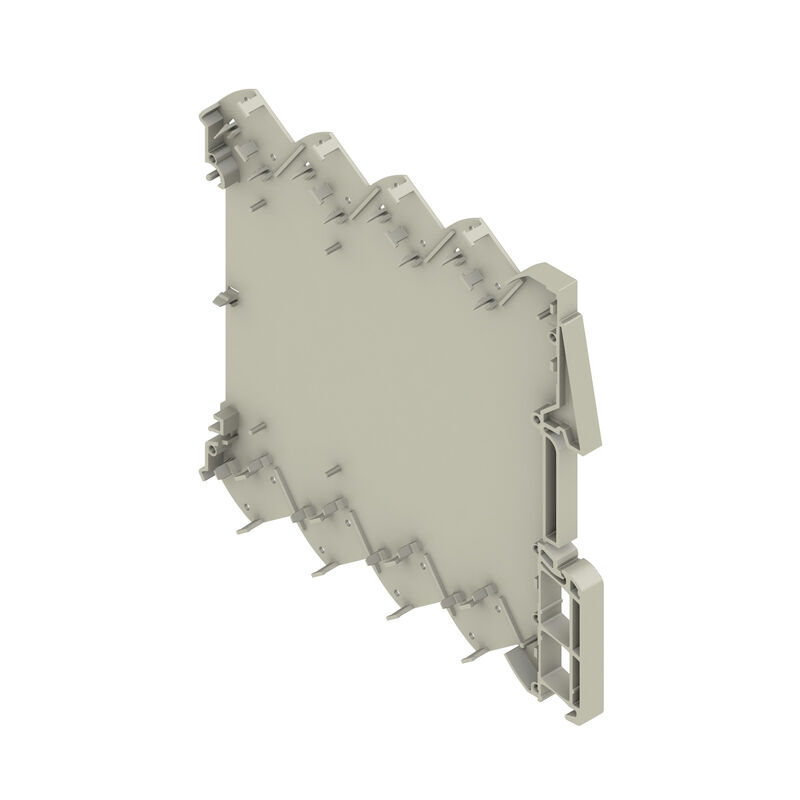

| Version | Modular housing, OMNIMATE Housing - series CH20M Pebble grey, Housing base, Width: 6.1 mm |
| Order No. | 2771460000 |
| Type | CH20M6 BP 4P-4P GY LF 1 1261516 |
| GTIN (EAN) | 4064675032199 |
| Qty. | 50 adet |
| Depth | 114,3 mm |
| Depth (inches) | 4,5 inch |
| Height | 110,7 mm |
| Height (inches) | 4,358 inch |
| Width | 6,1 mm |
| Width (inches) | 0,24 inch |
| Net weight | 1,46 g |
| Comparative Tracking Index (CTI) | 400 ≤ CTI <600 |
| Insulating material | PBT |
| Insulating material group | II |
| UL 94 flammability rating | V-0 |
| Colour | Pebble grey |
| Colour chart (similar) | RAL 7032 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| Rail | TS 35 |
| Number of PCBs, max. | 1 |
| Number of connection levels, max. | 8 |
| Number of poles, max. | 8 |
| Height of components on the PCB, max. | 3,5 mm |
| Type of assembly of the PCB | one-sided |
| According to Standard | DIN EN 61373:1999 (shock and vibration) |
| Test conditions |
50g additional weight on the PCB
five housings installed in a row with endbrackets WEW 35/1 (1059000000) |
| Proved axles |
X
Y Z |
| Shock test |
|
| Vibration test |
|
| Number of connection levels, max. | 8 |
| PCB thickness | 0,8 mm |
| Tolerance for the PCB shape | ±0.1 mm |
| Tolerance of circuit board thickness | ±0.1 mm |
| Alternitive colours | More on request |
| Customer specific cutouts possible | Yes |
| Customer specific labelling possible | Yes |
| Customer specific order process | See guideline under downloads |
| Engineering Data |
[CAD data -- PCB Reference Layout](https://mdcop.weidmueller.com/mediadelivery/asset/900_73555)
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_199690) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2771460000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-92 |
| ECLASS 12.0 | 27-18-27-92 |
| ECLASS 13.0 | 27-19-06-01 |
Aksesuarlar
-
Ürün No.:1073410000Ambalaj birimi:50 adet
Modular housing, OMNIMATE Housing - series CH20M Transparent, Flip cover, Width: 6.1 mm
-
Ürün No.:2418620000Ambalaj birimi:50 adet
Modular housing, OMNIMATE Housing - series CH20M black, Transparent, Flip cover, Width: 6.1 mm
Karşı parçalar
-
Ürün No.:2418580000Ambalaj birimi:432 adet
Printed circuit board terminals, Connection element, left, block assembly, closed side, THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Tape
-
Ürün No.:1137870000Ambalaj birimi:306 adet
Printed circuit board terminals, Connection element, left, block assembly, closed side, THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Box
-
Ürün No.:2771180000Ambalaj birimi:50 adet
Flange-mounted housing, OMNIMATE Housing - series CH20M Pebble grey, Housing side panel, Width: 5.2 mm
-
Ürün No.:2771160000Ambalaj birimi:50 adet
Flange-mounted housing, OMNIMATE Housing - series CH20M black, Housing side panel, Width: 5.2 mm
-
Ürün No.:2771190000Ambalaj birimi:50 adet
Flange-mounted housing, OMNIMATE Housing - series CH20M red, Housing side panel, Width: 5.2 mm
-
Ürün No.:2771210000Ambalaj birimi:50 adet
Flange-mounted housing, OMNIMATE Housing - series CH20M Agate grey, Housing side panel, Width: 5.2 mm
-
Ürün No.:2771200000Ambalaj birimi:50 adet
Flange-mounted housing, OMNIMATE Housing - series CH20M Traffic grey (RAL), Housing side panel, Width: 5.2 mm
-
Ürün No.:2418590000Ambalaj birimi:432 adet
Printed circuit board terminals, Connection element, right, block assembly, closed side, THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Tape
-
Ürün No.:1137880000Ambalaj birimi:306 adet
Printed circuit board terminals, Connection element, right, block assembly, closed side, THR solder connection, Number of poles: 1, Solder pin length (l): 1.5 mm, tinned, black, Box
