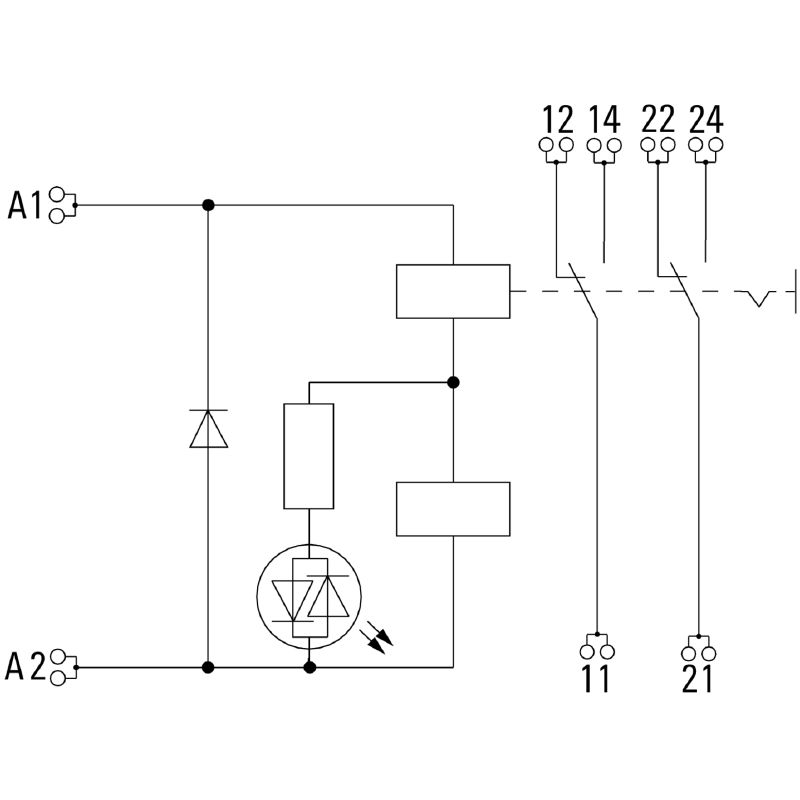

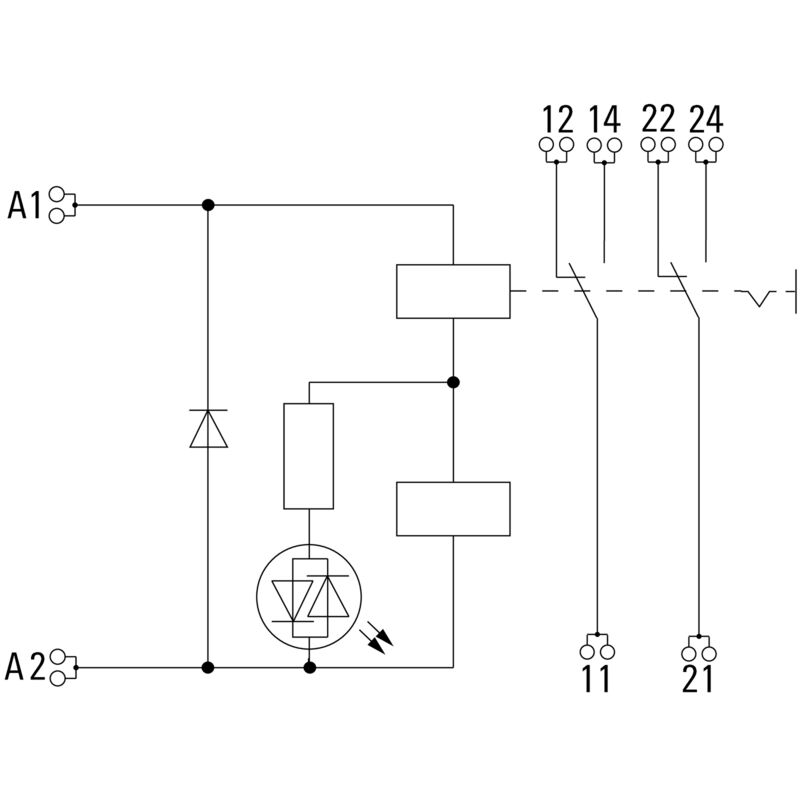

DRIKITP 24VDC 2CO LD/PB
D-SERIES DRI, Relay module, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, PUSH IN, Test button available: Yes
Ürün No.
2576190000
Özellikler
| Version | D-SERIES DRI, Relay module, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, PUSH IN, Test button available: Yes |
| Order No. | 2576190000 |
| Type | DRIKITP 24VDC 2CO LD/PB |
| GTIN (EAN) | 4050118585957 |
| Qty. | 10 adet |
| Depth | 63 mm |
| Depth (inches) | 2,48 inch |
| Height | 102,1 mm |
| Height (inches) | 4,02 inch |
| Width | 15,9 mm |
| Width (inches) | 0,626 inch |
| Net weight | 60,258 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -40 °C...55 °C |
| Humidity | 35...85 % rel. humidity, no condensation |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 611f3393-31e7-4ef5-8360-95619a629f27 |
| Rated control voltage | 24 V DC |
| Rated current DC | 21,8 mA |
| Power rating | 530 mW |
| Coil resistance | 1100 Ω ± 10 % |
| Coil tolerance | 10 % |
| Status indicator | Green LED |
| Protective circuit | Free-wheeling diode |
| Rated switching voltage | 250 V AC |
| Continuous current | 5 A |
| Max. switching frequency at rated load | 0,1 Hz |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 250 V |
| Min. switching power |
10 mA @ 24 V
10 mA @ 12 V 100 mA @ 5 V |
| AC switching capacity (resistive), max. | 1250 VA |
| DC switching capacity (resistive), max. | 150 W @ 24 V |
| Switch-on delay | ≤ 15 ms |
| Switch-off delay | ≤ 10 ms |
| Contact type | 2 CO contact (AgSnO) |
| Mechanical service life | 10 x 106 switching cycles |
| Rail | TS 35 |
| Test button available | Yes |
| Version of test button |
Lockable test button
Momentary test button |
| Mechanical switch position indicator | No |
| Colour | black |
| UL94 flammability rating component |
|
| Rated voltage | 250 V |
| Pollution severity | 2 |
| Surge voltage category | III |
| Insulating material group | IIIb |
| Clearance and creepage distances for control side - load side | ≥ 3 mm |
| Dielectric strength for control side - load side | 5 kVeff / 1min |
| Dielectric strength of neighbouring contacts | 1.5 kVeff /1 min. |
| Dielectric strength of open contact | 1 kVeff / 1 min |
| Impulse withstand voltage | 5 kV (1.2/50 µs) |
| Impulse withstand voltage at neighbouring contacts | 4.8 kV (1.2/50 µs) |
| Protection degree | IP20 |
| Certificate no. (cURus) relay | E312083 |
| Certificate no. (cURus) base | E312083 |
| Wire connection method | PUSH IN |
| Stripping length, rated connection | 10 mm |
| Clamping range, rated connection | 1,5 mm² |
| Clamping range, min. | 0,14 mm² |
| Clamping range, max. | 1,5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire cross-section, solid, min. | 0,14 mm² |
| Wire cross-section, solid, max. | 1,5 mm² |
| Wire connection cross section, finely stranded, min. | 0,14 mm² |
| Wire connection cross section, finely stranded, max. | 1,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,14 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0,14 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1,5 mm² |
| Blade size | 0.4 x 2.5 mm |
| Approval/Certificate/Document of Conformity | [EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_96408) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_79009) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2576190000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2576190000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2576190000&norm=0) |
| Product Change Notification | [20210401 Product Change Notification D-SERIES DRI KITs - status indicator](https://mdcop.weidmueller.com/mediadelivery/asset/900_211310) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001437 |
| ETIM 7.0 | EC001437 |
| ETIM 8.0 | EC001437 |
| ETIM 9.0 | EC001437 |
| ECLASS 9.0 | 27-37-16-01 |
| ECLASS 9.1 | 27-37-16-01 |
| ECLASS 10.0 | 27-37-16-01 |
| ECLASS 11.0 | 27-37-16-01 |
| ECLASS 12.0 | 27-37-16-01 |
| ECLASS 13.0 | 27-37-16-01 |
| Approvals |   |
| ROHS | Conform |
