Özellikler

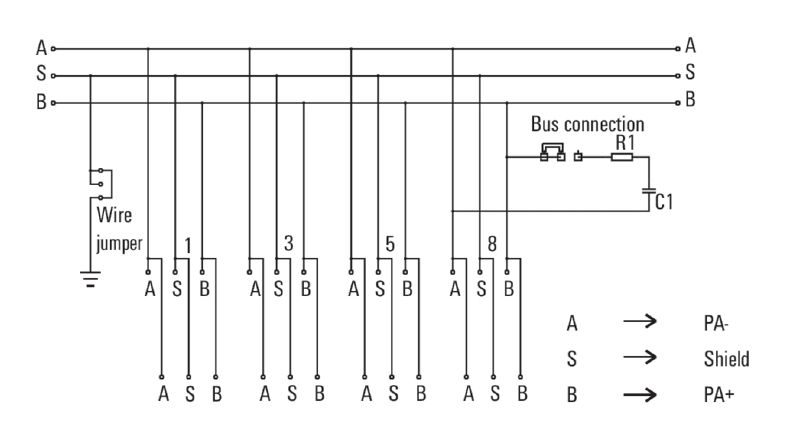

| Version | Standard distributor with bus termination (active), 8-way distributor, IP65, IP66, Round |
| Order No. | 8703470000 |
| Type | FBCON SS CG 8WAY |
| GTIN (EAN) | 4032248398362 |
| Qty. | 1 adet |
| Height | 58 mm |
| Height (inches) | 2,283 inch |
| Width | 80 mm |
| Width (inches) | 3,15 inch |
| Length | 175 mm |
| Length (inches) | 6,89 inch |
| Net weight | 1.244 g |
| Storage temperature | -40 °C...80 °C |
| Ambient temperature | -40 °C…80 °C |
| Operating temperature | -40 °C...80 °C |
| Humidity | 5...95 %, no condensation |
| SIL in compliance with IEC 61508 | None |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 3a5f5913-76fc-4ff5-8563-4463f80bbe02 |
| Clamping range, min. | 4 mm² |
| Clamping range, max. | 6 mm² |
| Bus system |
Profibus-PA
Foundation Fieldbus |
| Cable entry | Round |
| Cable glands | Stainless steel cable gland |
| Connection type PE | Spur line with cable gland |
| Design of housing | With pressure compensation element |
| Housing main material |
Stainless steel, rust-proof
Aluminum |
| Housing surface | polished |
| Number of poles | 3 |
| Operating voltage |
10 ... 31 V DC
30 V UC |
| Operating voltage Umax, max. | 30 V DC |
| Pollution severity | 3 |
| Protection degree |
IP65
IP66 |
| Type of distribution | 8-way distributor |
| Type of mounting | surface-mounted |
| Approval/Certificate/Document of Conformity |
[Certification UL for Canada](https://mdcop.weidmueller.com/mediadelivery/asset/900_317640)
[Certification UL for US](https://mdcop.weidmueller.com/mediadelivery/asset/900_317641) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317987) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=8703470000) |
| Product Change Notification | [20220208 Technical change to FBCon field distributors (passive, with stainless steel housings)](https://mdcop.weidmueller.com/mediadelivery/asset/900_251154) |
| Software | [WI-Segment-Calculator](https://mdcop.weidmueller.com/mediadelivery/asset/900_90759) |
| User Documentation |
[Application-Guide-Planning and installing Fieldbus networks-using-FBCon_english_deutsch](https://mdcop.weidmueller.com/mediadelivery/asset/900_90760)
[FBCon Segment Calculator_english](https://mdcop.weidmueller.com/mediadelivery/asset/900_101984) [Instruction sheet](https://mdcop.weidmueller.com/mediadelivery/asset/900_317031) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001604 |
| ETIM 7.0 | EC001604 |
| ETIM 8.0 | EC001604 |
| ETIM 9.0 | EC001604 |
| ECLASS 9.0 | 27-24-26-08 |
| ECLASS 9.1 | 27-24-26-08 |
| ECLASS 10.0 | 27-24-26-08 |
| ECLASS 11.0 | 27-24-26-08 |
| ECLASS 12.0 | 27-44-01-11 |
| ECLASS 13.0 | 27-44-01-11 |
| ECLASS 14.0 | 27-44-01-11 |
| Approvals |  |
| ROHS | Conform |
| UL File Number Search | [UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html) |
| Certificate no. (cULus) | E141197 |
