FF 67 55/230V BK

Filter fan, IP55, black

Ürün No. 2556980000

Operating temperature range

-40...55 °C

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Colour	black
Current consumption	Mains frequency: 50 Hz Current: 0,62 A Mains frequency: 60 Hz Current: 0,86 A
EMC version	No
Fan type	Roof fan
Filter class	G 4
Fuse	6 A
Height of installation cut-outs	291 mm
Mounting depth	150 mm
Mounting height	7 mm
MTBF	40.000 h
Noise emission	66 dB(A)
Operating temperature range	-40...55 °C
Power	Mains frequency: 50 Hz nominal: 140 W Mains frequency: 60 Hz nominal: 197 W
Protection class (UL)	Type 12
Rated AC voltage	230 V
Rated voltage	230 V AC ± 10%
Size	6
Type of connection	Spring contact
Type of mounting	Snap-on
UL 94 flammability rating	V-0
UV-resistant	Yes

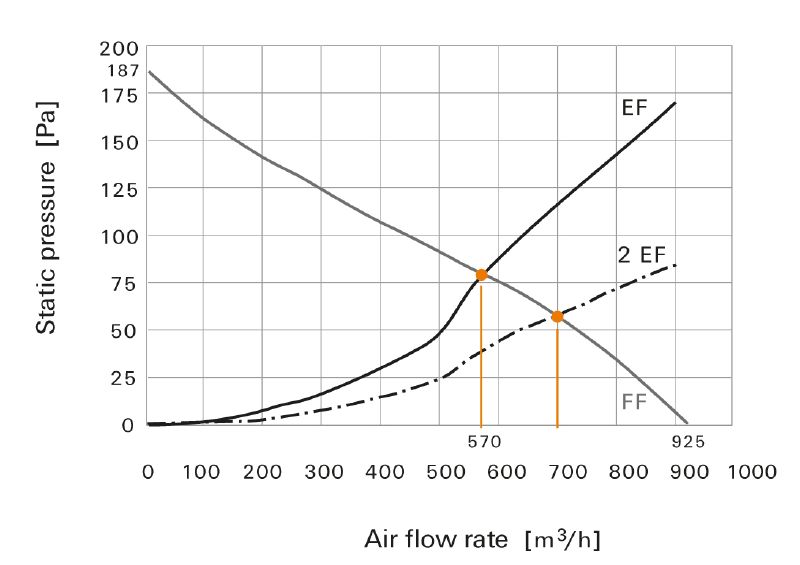

Volume flow with exhaust filter	Mains frequency: 50 Hz Volume flow: 570 m³/h Exhaust filter: IP55 Mains frequency: 60 Hz Volume flow: 625 m³/h Exhaust filter: IP55
Volume flow, free-blowing	Mains frequency: 50 Hz Volume flow: 925 m³/h Mains frequency: 60 Hz Volume flow: 950 m³/h
Volume flow, free-blowing at 50 Hz	925 m³/h
Volume flow, free-blowing at 60 Hz	950 m³/h
Width of installation cut-outs	291 mm
With filter	Yes
With protective cover	Yes

Approval/Certificate/Document of Conformity	[EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_58502)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_317318)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2556980000)
Product Change Notification	[Technical change to Thermal management](https://mdcop.weidmueller.com/mediadelivery/asset/900_321255) [Technische Änderung für Thermomanagement](https://mdcop.weidmueller.com/mediadelivery/asset/900_321256)
User Documentation	[Installation- and operating instructions](https://mdcop.weidmueller.com/mediadelivery/asset/900_94199)
