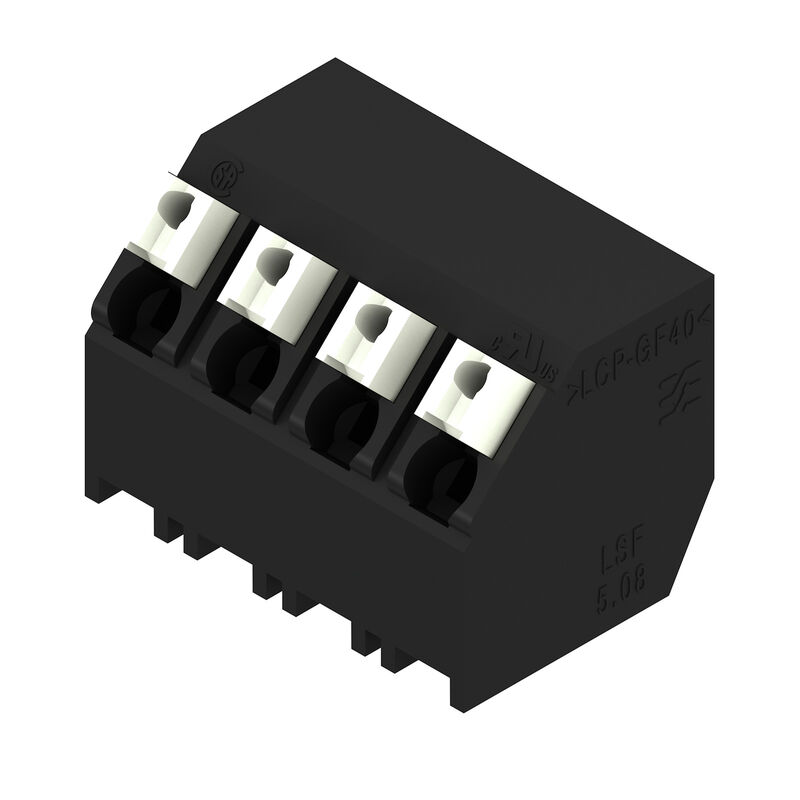

LSF-SMT 5.08/04/135 1.5SN BK TU
Product image

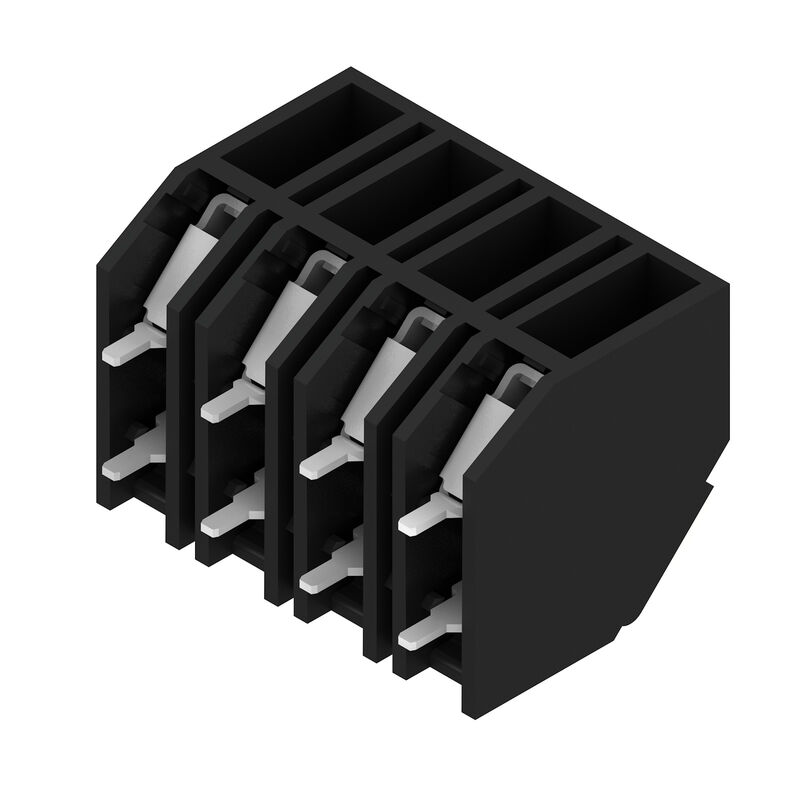

LSF-SMT 5.08/04/135 1.5SN BK TU
Product image
LSF-SMT 5.08/04/135 1.5SN BK TU
Dimensional drawing
LSF-SMT 5.08/04/135 1.5SN BK TU
Graph
LSF-SMT 5.08/04/135 1.5SN BK TU
Graph
LSF-SMT 5.08/04/135 1.5SN BK TU
Graph
LSF-SMT 5.08/04/135 1.5SN BK TU
Graph

LSF-SMT 5.08/04/135 1.5SN BK TU

Printed circuit board terminals, 5.08 mm, Number of poles: 4, 135°, Solder pin length (l): 1.5 mm, black, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Tube

Product ID 1884750000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 36
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Változat
Printed circuit board terminals, 5.08 mm, Number of poles: 4, 135°, Solder pin length (l): 1.5 mm, black, PUSH IN with actuator, Clamping range, max. : 1.5 mm², Tube
N. d’ordine
1884750000
Típus
LSF-SMT 5.08/04/135 1.5SN BK TU
GTIN (EAN)
4032248489329
Qty.
28 items
Product data
IEC: 500 V / 17.5 A / 0.2 - 1.5 mm²
UL: 300 V / 12 A / AWG 28 - AWG 14
Packaging
Tube

Dimensions and weights

Mélység
12,7 mm
Depth (inches)
0,5 inch
Magasság
14,4 mm
Height (inches)
0,567 inch
Height of lowest version
12,9 mm
Szélesség
19,44 mm
Width (inches)
0,765 inch
Net weight
4,54 g

Temperatures

Continuous operating temp., max.
120 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.043 kg CO2 eq.

System parameters

Product family
OMNIMATE Signal - series LSF
Wire connection method
PUSH IN with actuator
Mounting onto the PCB
THT/THR solder connection
Vezeték kimeneti irány
135°
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Number of poles
4
Pin series quantity
1
Fitted by customer
No
Number of rows
1
Solder pin length (l)
1,5 mm
Forrasztótüske tűrése
+0.1 / -0.3 mm
Forrasztótüske méretei
0.35 x 0.8 mm
Solder pin dimensions = d tolerance
0 / -0.1 mm
Solder eyelet hole diameter (D)
1,1 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
Stripping length
8 mm
L1 in mm
15,24 mm
L1 in inches
0,6 "
Touch-safe protection acc. to DIN VDE 0470
IP 20
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Protection degree
IP20
Volume resistance
1.60 mΩ

Material data

Materiał izolacyjny
LCP GF
Barwny
black
Colour of operational elements
white
Tabela kolorów (podobny)
RAL 9011
grupa materiałów izolacyjnych
IIIa
Comparative Tracking Index (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiał styków
Cu-alloy
Struktura warstwowa przyłącza lutowanego
4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Zakres zaciskania, min.
0,13 mm²
Zakres zaciskania, maks.
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
przekrój przyłączeniowy przewodu AWG, maks.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
0,75 mm²
med ändhylsa, DIN 46228 pt 1, min.
0,25 mm²
z końcówką kablową wg DIN 46 228/1, maks.
1,5 mm²
Зажимаемый проводник
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025760000
  • Cross-section for conductor connection:
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025770000
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0690700000
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9021040000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
17,5 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
15 A
Rated voltage for surge voltage class / pollution degree II/2
500 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
4 kV
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/3
4 kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1664286
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
10 A
Rated current (Use group D / CSA)
10 A
Sección de conexión del conductor AWG, mín.
AWG 28
Wire cross-section, AWG, max.
AWG 14
Hivatkozás a tanúsítási értékekre
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Zertifikat-Nr. (cURus)
E60693
Tensión nominal (Use Group B / UL 1059)
300 V
Névleges feszültség (D felhasználási csoport / UL 1059)
300 V
Névleges áram (B felhasználási csoport/ UL 1059)
12 A
Névleges áram (D felhasználási csoport/ UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 28
Section de raccordement de câble AWG, max.
AWG 14
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Packing

Csomagolás
Tube
VPE hosszúság
555 mm
VPE szélesség
20 mm
VPE magasság
17 mm
Felületi ellenállás
Rs = 109 - 1012 Ω

Type tests

Teszt: Jelölések tartóssága
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, approval marking UL, durability
  • Evaluation:
    available
Teszt: Rögzíthető keresztmetszet
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Vezetékek sérülésének és véletlen meglazulásának vizsgálata
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 28/1
    • Type of conductor and conductor cross-section:
      AWG 28/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Kihúzási vizsgálat
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-U0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

Zgodność IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
참고 사항
  • Additional push button colours on request
  • Operating force of slider max. 40 N
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
