Özellikler

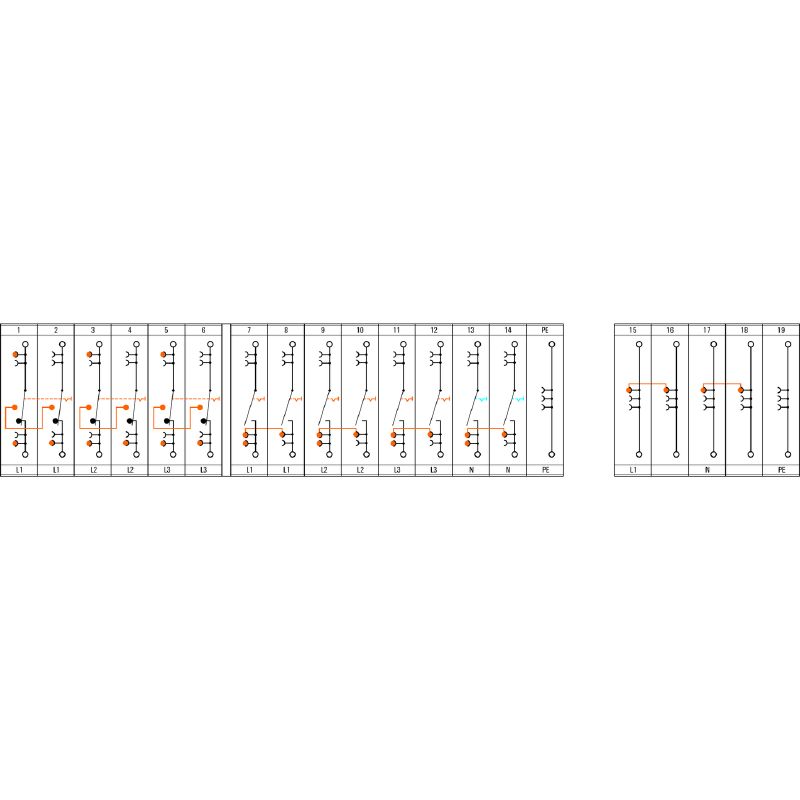

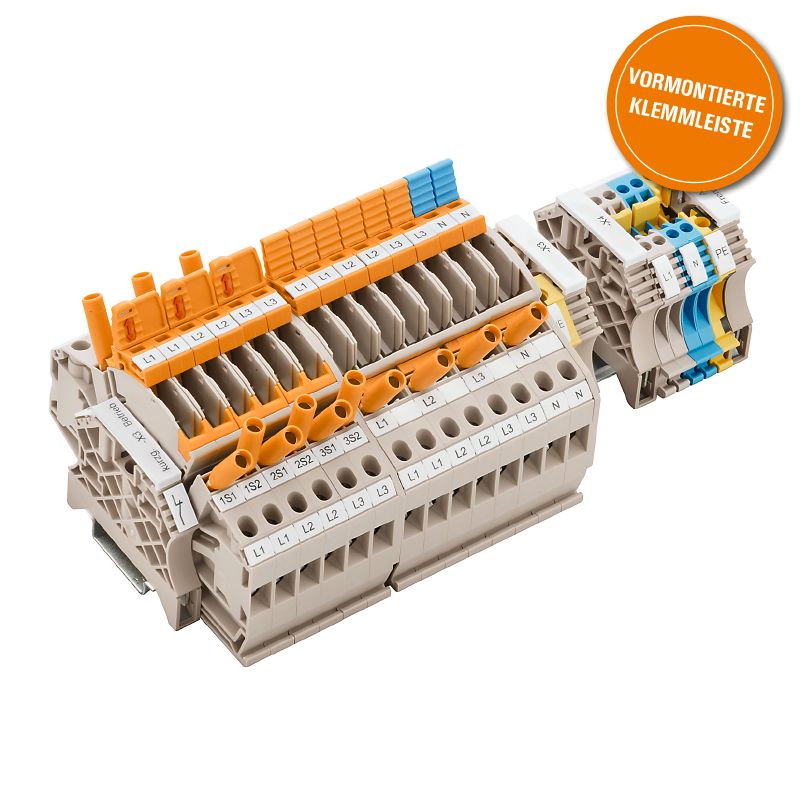

| Version | Test-disconnect terminal, Screw connection, 6 mm², 30 A, sliding, Cross-disconnect: sliding, Integral test socket: Yes, TS 35, beige |
| Order No. | 8000080735 |
| Type | MSTTAB2019ORANGE |
| GTIN (EAN) | 4064675417316 |
| Qty. | 1 adet |
| Depth | 79 mm |
| Depth (inches) | 3,11 inch |
| Height | 100 mm |
| Height (inches) | 3,937 inch |
| Width | 203 mm |
| Width (inches) | 7,992 inch |
| Net weight | 635,014 g |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Material | Wemid |
| Colour | beige |
| Colour of operational elements | Miscellaneous |
| UL 94 flammability rating | V-0 |
| End cover plate required | No |
| Number of levels | 1 |
| Number of clamping points per level | 40 |
| Rail | TS 35 |
| N-function | No |
| PE function | Yes |
| PEN function | No |
| Explosion-tested version | No |
| Snap-on | Yes |
| Type of mounting | TS 35 |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0,5 mm² |
| Connection direction | on side |
| Number of connections | 40 |
| Type of connection | Screw connection |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0,5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0,5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
| Wire connection cross-section, solid core, min. | 0,5 mm² |
| Rail | TS 35 |
| Standards | IEC 60947-7-1 (-7-2) |
| Rated cross-section | 6 mm² |
| Rated current | 30 A |
| Standards | IEC 60947-7-1 (-7-2) |
| Pollution severity | 3 |
| Surge voltage category | III |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000902 |
| ETIM 7.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| ECLASS 9.0 | 27-14-11-26 |
| ECLASS 9.1 | 27-14-11-26 |
| ECLASS 10.0 | 27-14-11-26 |
| ECLASS 11.0 | 27-14-11-26 |
| ECLASS 12.0 | 27-14-11-26 |
| ECLASS 13.0 | 27-25-01-09 |
