SAIL-M12BW-4-70U
SAIL-M12BW-4-70U
Dimensioned drawing
Angled socket
SAIL-M12BW-4-70U
Pole scheme
M12 = A-coded
SAIL-M12BW-4-70U
Wiring diagram
SAIL-M12BW-4-70U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BW-4-70U

Tämä tuote ei ole pian enää saatavana.

마지막 주문 날짜: /Date(1790719200000)/

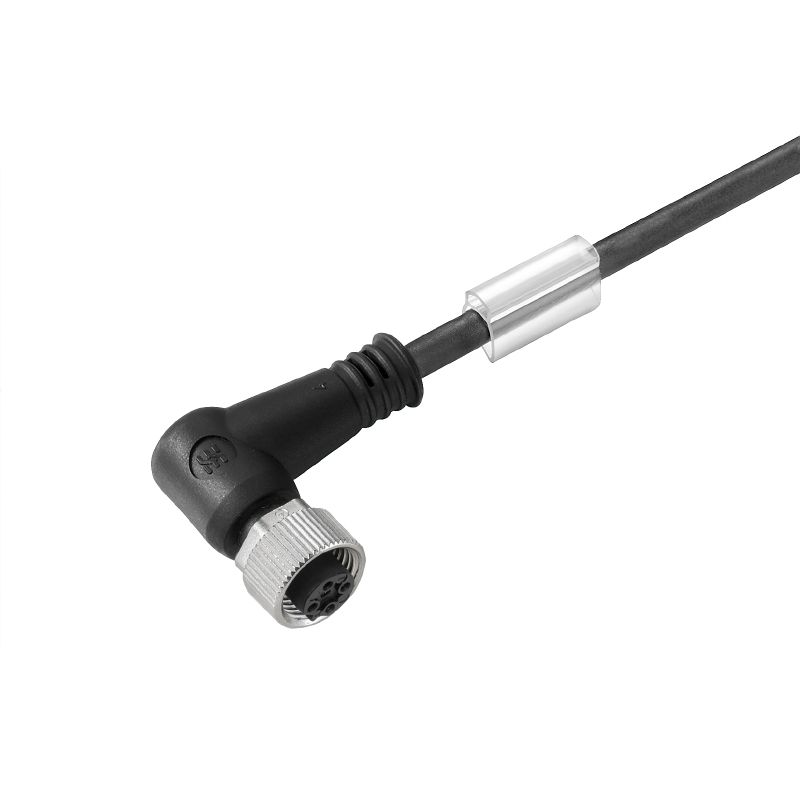

Sensor/actuator line, One end without connector, M12, Number of poles : 4, 70 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Tuotteen tunnus 9457747000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 7 Samankaltaiset tuotteet 19
Approvals General ordering data 치수 및 중량 Environmental Product Compliance Technical specifications for cable Dane ogólne techniczne Electrical properties Общие стандарты Стандарты Plug, left Plug, right Klassifikationen

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conformidad
UL File Number Search
[Site Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Versione
Sensor/actuator line, One end without connector, M12, Number of poles : 4, 70 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
주문 번호
9457747000
Tipo
SAIL-M12BW-4-70U
GTIN(EAN)
4050118185263
CPZ
1 Pièce
배송 상태
향후에는 이 품목을 더 이상 사용할 수 없습니다.
마지막 주문 날짜
/Date(1790719200000)/

치수 및 중량

순중량
2 600 g

Environmental Product Compliance

RoHS 준수 상태
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 mln
Bending radius, min., moving
10 x średnica kabla
Bending radius, min., stationary
5 x średnica kabla
Cable length
70 m
Codage couleur
коричневый
белый
синий
черный
Configurable cable length
Нет
Core cross-section
0,34 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Csavarás hossza
1 m
Diametro esterno
4.1 mm + 0.15 mm
Geschirmt
Nej
Hajlítási ciklusok csavart
> 5 Mio.
Halogene
Nej
Hegesztésnek ellenálló
Nej
Hybrid cable
No
Hydrolysis and microbe resistant
Yes
Isolation
PP
LABS-free
Yes
Numero di poli
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Počet vodičů
4
Resistance to oils
Yes
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistencia a chispas de soldadura
No
Reticulado por radiación
No
Résistance à la torsion
180 °/m
Sheath material
PUR
Sheathing colour
black
Speed
3,33 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C

Dane ogólne techniczne

AF 사이즈
12 mm
LED
No
Temperature range of housing
-25…+85 °C
Tightening torque
M12: 0.8 - 1.2 Nm
결선 나사산
M12
공칭 전압
250 V
나사선 링 재질
Diecast zinc
버전
Socket, angled
보호 등급
IP65
IP66
IP67
IP68
when screwed in
오염 심각도
3
절연 저항
108 Ω
점퍼 연결
No
접점 재질
Copper alloy
접점 표면
Gold-plated
정격 전류
4 A
코딩
A-coded
플러그 주기
≥ 100
하우징 기본 재질
PUR

Electrical properties

Resistenza d'isolamento
108 Ω
Tensione nominale
250 V

Общие стандарты

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Стандарты

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, Number of poles: 4, female contact, angled 0°, plug, unshielded

Plug, right

Plug right
Free conductor end

Klassifikationen

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
