Özellikler

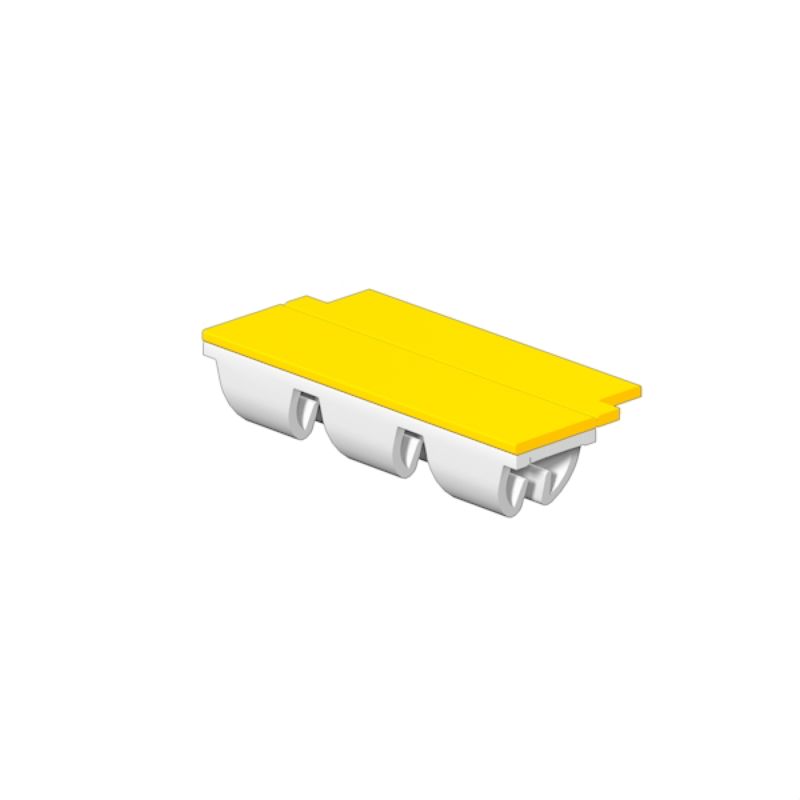

| Version | Conductor and cable markers, 1.8 - 2.5 mm, 18 x 4.6 mm, yellow |
| Order No. | 2719130000 |
| Type | SFM 2/18 1.8-2.5 MM GE |
| GTIN (EAN) | 4050118888164 |
| Qty. | 900 adet |
| Height | 18 mm |
| Height (inches) | 0,709 inch |
| Width | 4,6 mm |
| Width (inches) | 0,181 inch |
| Net weight | 0,099 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | yellow |
| compatible printer | [THM MULTIMARK](~/p/2599430000) |
| Halogen | No |
| Material |
PC-ABS
TPU |
| Number per roll | 900 |
| Operating temperature range, max. | 90 °C |
| Operating temperature range, min. | -50 °C |
| Size of labelling field | 3.3 x 15.5 mm |
| Type of printing | neutral |
| UL 94 flammability rating | V-2 |
| Version | with snap-in foot |
| Width | 4,6 mm |
| Conductor cross-section, max. | 1,5 mm² |
| Conductor cross-section, min. | 0,75 mm² |
| Conductor O.D. | 1.8 - 2.5 mm |
| Conductor O.D., max. | 2,5 mm |
| Conductor O.D., min. | 1,8 mm |
| Cross-section for connected wire | 0.75 - 1.5 mm² |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_304937) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2719130000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
