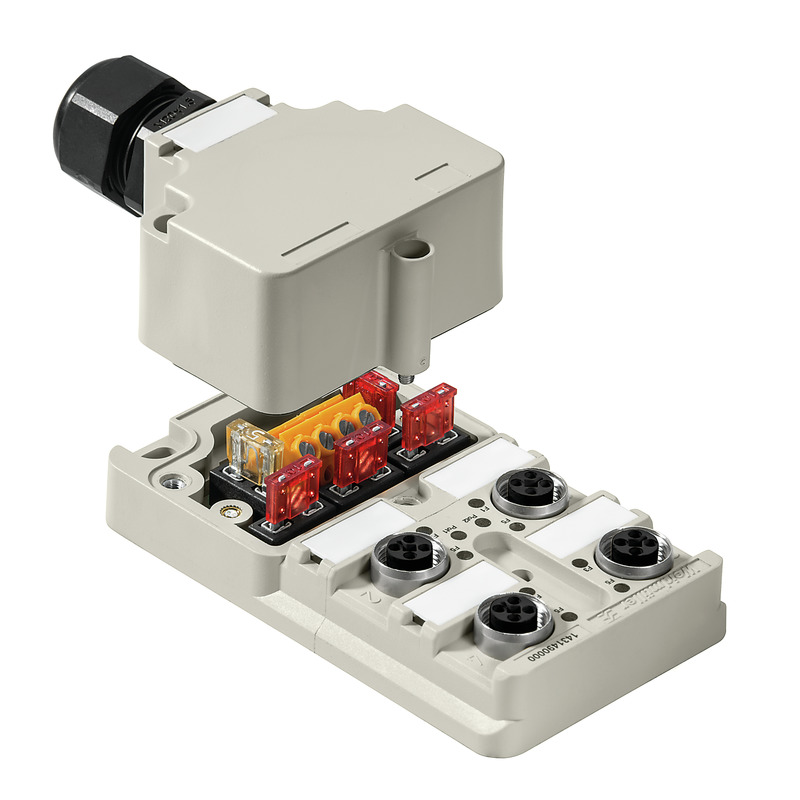

Similar to illustration
Dimensioned drawing
Wiring diagram
SAI-4-M-SVV-GM-M12 Item No. 1989340000
Power distributor, M12, Hood version, Yes
Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.
Properties
| Version | Power distributor, M12, Hood version, Yes |
| Order No. | 1989340000 |
| Type | SAI-4-M-SVV-GM-M12 |
| GTIN (EAN) | 4050118373905 |
| Qty. | 1 ST |
| Net weight | 100 g |
| Operating temperature | - |
| REACH SVHC | Lead 7439-92-1 |
| Version | complete module |
| Connection thread | M12 |
| Conductor O.D., min. | 6 mm |
| Conductor O.D., max. | 12 mm |
| Cable glands | M 20 |
| Clamping range, min. | 0.5 mm² |
| Clamping range, max. | 4 mm² |
| Distributor outlet | Hood version |
| Rated voltage, min. | 10 V |
| Rated voltage, max. | 48 V |
| Max. current-carrying capacity per slot | 10 A |
| Total current | 32 A |
| Current per signal | 10 A |
| Insulation strength | 108 Ω |
| Plug-in station coding | T |
| Protection degree | IP68 |
| Number of poles | 4 |
| Number of contact sockets | 4 |
| Connection thread | M12 |
| Pollution severity | 3 |
| Fire behaviour | V-0 |
| Plugging cycles | ≤ 50 |
| LED | Yes |
| LED initiator | Yes |
| LED colour for indicating operation | yellow |
| LED colour for I/O function | yellow |
| Housing main material | Pocan |
| Material of distributor | Plastic |
| Housing colour | grey, RAL 7032 |
| Hood sealing material | Viton |
| Screw socket | Nickel-plated CuZn |
| Contact material | CuZn |
| Contact surface | Gold-plated |
| Contact carrier material | PBT (UL 94 V0) |
| Conductor O.D., max. | 12 mm |
| Conductor O.D., min. | 6 mm |
| Number of poles | 4 |
| Suitable for cable carriers | No |
| Brochure/Catalogue | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| Engineering Data | [EPLAN, WSCAD](LINK/CAE_EN.html) |
| ETIM 6.0 | EC002585 |
| ETIM 7.0 | EC003558 |
| eClass 9.0 | 27-44-01-08 |
| eClass 9.1 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-11 |
| eClass 11.0 | 27440111 |
| ROHS | Conform |
