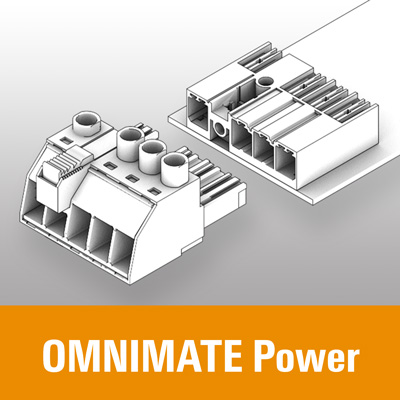

PCB plug-in connectors - OMNIMATE Power

PCB plug-in connectors - OMNIMATE Power

The pluggable connections for power electronics - optimised for modern drive technologies, e.g. motor starters, frequency converters and servo-controllers.

OMNIMATE Power sets the new standard – with increased safety and innovative solutions such as the pluggable shield, integrated signal contacts and one-handed operation.

The three product lines offer you further advantages:

  • Application-oriented scalability: from the compact 4 mm² connector for 29 A (IEC) or 20 A (UL) up to the sturdy 16 mm² connector for 76 A (IEC) or 54 A (UL)
  • Unlimited usage up to 1,000 V (IEC) or 600 V (UL)
  • A variety of application optimised mounting options

Our Service:
Design your individual connectors simply by using the Product Configurator.

  • 1(current)
  • 2
  • 3
1,505 products found
  • Item No.
    1048400000
    Version
    PCB plug-in connector, male header, closed side, Middle screw flange, THT solder connection, 7.62 mm, No. of poles: 2, 90°, Solder pin length (l): 3.5 mm, tinned, black, Box
    Data sheet
    Packaging unit: 78 items
  • Item No.
    1043780000
    Version
    PCB plug-in connector, male plug, 7.62 mm, No. of poles: 5, PUSH IN, Clamping range, max. : 2.5 mm², Box
    Data sheet
    Packaging unit: 36 items
  • Item No.
    1026880000
    Version
    PCB plug-in connector, male header, Flange, THT solder connection, 7.62 mm, No. of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
    Data sheet
    Packaging unit: 50 items
  • Item No.
    1043960000
    Version
    PCB plug-in connector, female plug, 7.62 mm, No. of poles: 3, PUSH IN, Clamping range, max. : 2.5 mm², Box
    Data sheet
    Packaging unit: 54 items
  • Item No.
    1026790000
    Version
    PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, No. of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
    Data sheet
    Packaging unit: 50 items
  • Item No.
    1048870000
    Version
    PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, No. of poles: 2, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
    Data sheet
    Packaging unit: 100 items
  • Item No.
    1048960000
    Version
    PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, No. of poles: 11, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
    Data sheet
    Packaging unit: 50 items
  • Item No.
    1048690000
    Version
    PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, No. of poles: 5, 90°, Solder pin length (l): 3.5 mm, tinned, black, Box
    Data sheet
    Packaging unit: 36 items
  • Item No.
    1043870000
    Version
    PCB plug-in connector, female plug, 7.62 mm, No. of poles: 2, PUSH IN, Clamping range, max. : 2.5 mm², Box
    Data sheet
    Packaging unit: 72 items
  • Item No.
    1048930000
    Version
    PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, No. of poles: 8, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
    Data sheet
    Packaging unit: 50 items
  • Item No.
    1048920000
    Version
    PCB plug-in connector, male header, closed side, THT solder connection, 7.62 mm, No. of poles: 7, 180°, Solder pin length (l): 3.2 mm, tinned, orange, Box
    Data sheet
    Packaging unit: 50 items
  • Item No.
    1048350000
    Version
    PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, No. of poles: 2, 180°, Solder pin length (l): 3.5 mm, tinned, black, Box
    Data sheet
    Packaging unit: 78 items
  • Item No.
    1026810000
    Version
    PCB plug-in connector, male header, Flange, THT solder connection, 7.62 mm, No. of poles: 2, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
    Data sheet
    Packaging unit: 100 items
  • Item No.
    1026850000
    Version
    PCB plug-in connector, male header, Flange, THT solder connection, 7.62 mm, No. of poles: 2, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
    Data sheet
    Packaging unit: 100 items
  • Item No.
    1043920000
    Version
    PCB plug-in connector, female plug, 7.62 mm, No. of poles: 3, PUSH IN, Clamping range, max. : 2.5 mm², Box
    Data sheet
    Packaging unit: 54 items
  • Item No.
    1043790000
    Version
    PCB plug-in connector, female plug, 7.62 mm, No. of poles: 2, PUSH IN, Clamping range, max. : 2.5 mm², Box
    Data sheet
    Packaging unit: 120 items
  • Item No.
    1026820000
    Version
    PCB plug-in connector, male header, Flange, THT solder connection, 7.62 mm, No. of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
    Data sheet
    Packaging unit: 100 items
  • Item No.
    1048740000
    Version
    PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, No. of poles: 6, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box
    Data sheet
    Packaging unit: 30 items
  • Item No.
    1048420000
    Version
    PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, No. of poles: 3, 180°, Solder pin length (l): 3.5 mm, tinned, black, Box
    Data sheet
    Packaging unit: 60 items
  • Item No.
    1043240000
    Version
    PCB plug-in connector, female header, closed side, THT solder connection, 7.62 mm, No. of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
    Data sheet
    Packaging unit: 84 items
