SM 27/18 MC NE WS Item No. 1699860000

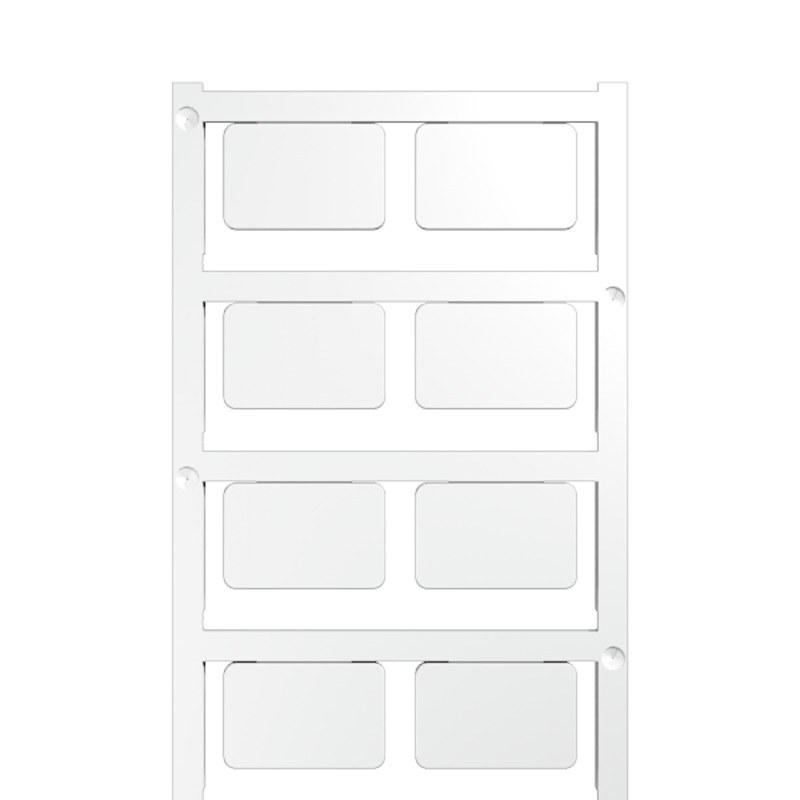

SwitchMark, Device markers, 18 x 27 mm, SwitchMark holder, white

Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.

Version	SwitchMark, Device markers, 18 x 27 mm, SwitchMark holder, white
Order No.	1699860000
Type	SM 27/18 MC NE WS
GTIN (EAN)	4008190892302
Qty.	80 ST

Temperatures

Operating temperature range

-40...100 °C

General data

Application/manufacturer	SwitchMark holder
Colour	white
Halogen	No
Material	Polyamide 66
Material colour according to resistance code	9
Number of markers per combination	1 MultiCard = Device markers
Operating temperature range	-40...100 °C
Operating temperature range, max.	100 °C
Operating temperature range, min.	-40 °C
UL 94 flammability rating	V-2
Width	27 mm

Device markers

Halogen

Downloads

Brochure/Catalogue	[CAT 9 IETH 18/19 EN](http://download.weidmueller.com/asset/download/file/85203)
Engineering Data	[STEP](http://download.weidmueller.com/asset/download/file/62899)
Engineering Data	[EPLAN, WSCAD](LINK/CAE_EN.html)
CADENAS eCATALOG	[Cax data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1699860000)
Product Change Notification	[Technical change to MultiCard material - DE](http://download.weidmueller.com/asset/download/file/102023) [Technical change to MultiCard material - EN](http://download.weidmueller.com/asset/download/file/102024)
Software	[M-Print PRO configuration file](http://download.weidmueller.com/asset/download/file/35526)
