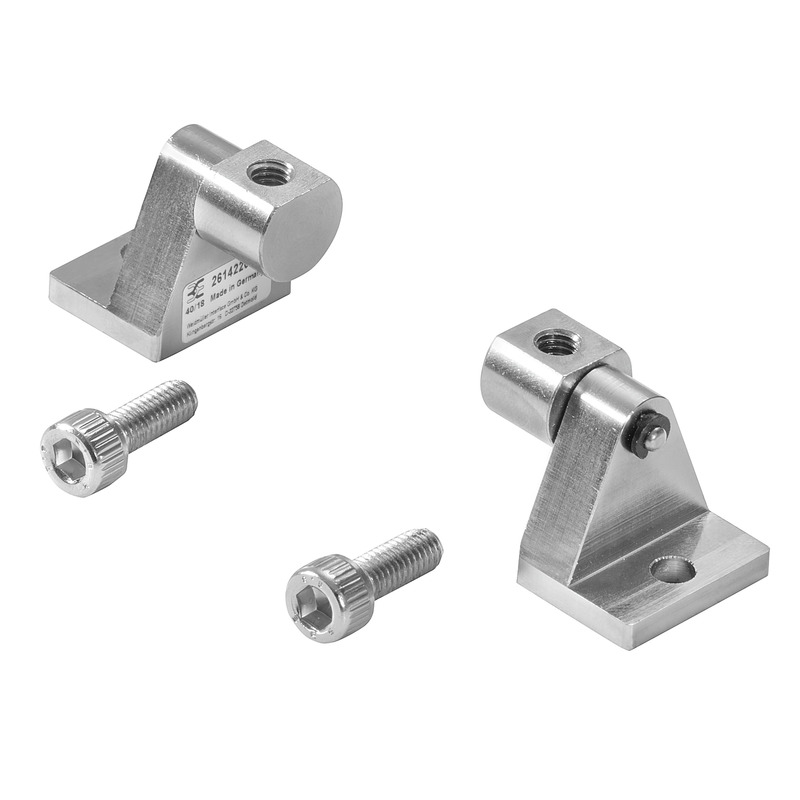

WIL-SCHWENKHALTER Item No. 2614220000
Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.
Properties
| Order No. | 2614220000 |
| Type | WIL-SCHWENKHALTER |
| GTIN (EAN) | 4050118651249 |
| Qty. | 1 ST |
| Depth | 20 mm |
| Depth (inches) | 0.7874 inch |
| Height | 26.7 mm |
| Height (inches) | 1.051179 inch |
| Net weight | 0.138 g |
| Width | 32.5 mm |
| Width (inches) | 1.279525 inch |
| Operating temperature | -30 - 60°C |
| REACH SVHC | Lead 7439-92-1 |
| Housing main material |
Brass
nickel-plated |
| Housing main material |
Brass
nickel-plated |
| Engineering Data | [STEP](http://download.weidmueller.com/asset/download/file/89531) |
| Engineering Data | [EPLAN](LINK/CAE_EN.html) |
| CADENAS eCATALOG | [Cax data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2614220000) |
| ETIM 6.0 | EC002955 |
| ETIM 7.0 | EC002955 |
| eClass 9.0 | 27-11-92-90 |
| eClass 9.1 | 27-11-92-90 |
| eClass 10.0 | 27-11-92-90 |
| eClass 11.0 | 27110692 |
| ROHS | Conform |
