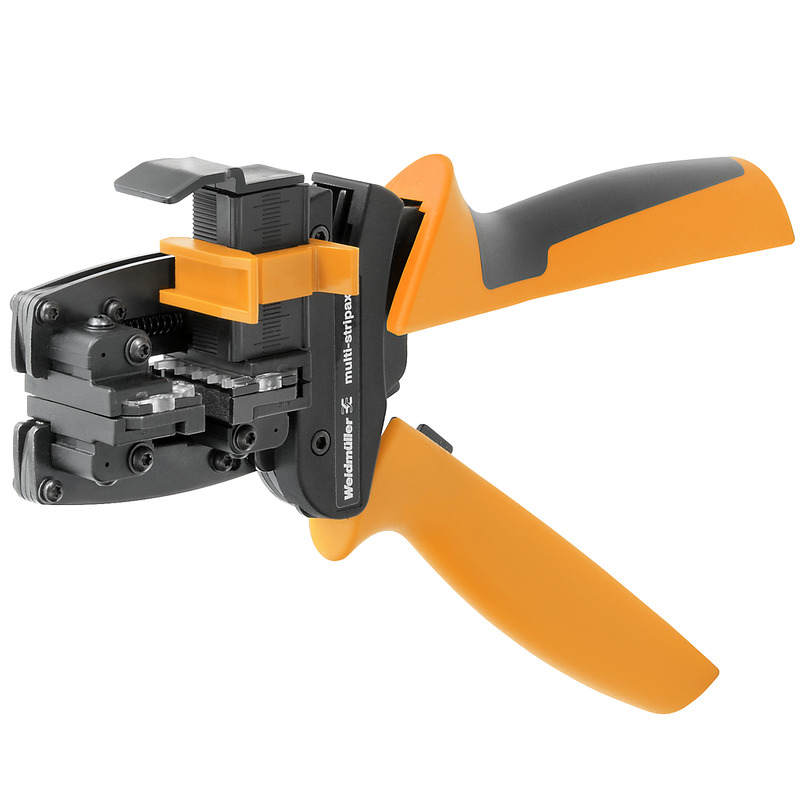

MULTI-STRIPAX 6-16   Item No. 9202210000

Tools, Stripping and cutting tool, Flexible and solid conductors with PVC insulation, 16mm²

Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.

Properties

Version Tools, Stripping and cutting tool, Flexible and solid conductors with PVC insulation, 16mm²
Order No. 9202210000
Type MULTI-STRIPAX 6-16
GTIN (EAN) 4032248486144
Qty. 1 ST
Depth 40 mm
Depth (inches) 1.5748 inch
Height 85 mm
Height (inches) 3.34645 inch
Net weight 509.1 g
Weight 250 g
Width 250 mm
Width (inches) 9.8425 inch
REACH SVHC Lead 7439-92-1
Description of article Stripping and cutting tool for 6, 10 and 16 mm²; PVC-insulated conductors with special configurations
Cable type Flexible and solid conductors with PVC insulation
Conductor cross-section (cutting capacity) 6 mm²
Conductor cross-section, max. 16 mm²
Conductor cross-section, min. 6 mm²
max. cutting capacity, fine-strand 6 mm²
max. cutting capacity, ribbon 10,2 mm x 4 mm
max. cutting capacity, solid 2.5 mm²
Stripping length, min. 2 mm
Brochure/Catalogue [CAT U_REMOTE 16/17 EN](http://download.weidmueller.com/asset/download/file/35315)
[CAT 6 TOOLS 15/16 EN](http://download.weidmueller.com/asset/download/file/39464)
[CAT 8 SAI 15/16 EN](http://download.weidmueller.com/asset/download/file/39480)
User Documentation [Manual](http://download.weidmueller.com/asset/download/file/101170)
ETIM 6.0 EC002109
ETIM 7.0 EC002109
eClass 9.0 21-04-37-06
eClass 9.1 21-04-37-06
eClass 10.0 21-04-37-06
eClass 11.0 21043706
Approvals ![EAC](/picture/EAC.gif)

Accessories

  • Item No.
    9202260000
  • Item No.
    9203070000
  • Item No.
    9203100000
