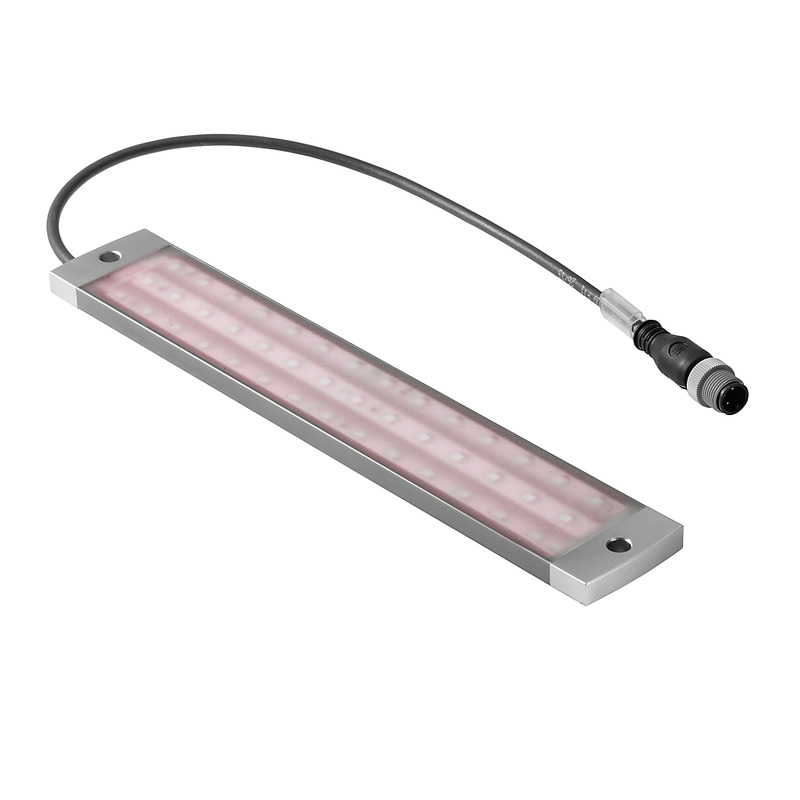

WIL-LRXXXX-WXXXD024-240SXX0.3BM12GXXXX   Item No. 2436340000

Please note that any possible discounts or additional costs are not yet applied here. The definitive payment amounts will be shown in the cart.

WIL-LRXXXX-WXXXD024-240SXX0.3BM12GXXXX

Properties

Order No. 2436340000
Type WIL-LRXXXX-WXXXD024-240SXX0.3BM12GXXXX
GTIN (EAN) 4050118447958
Qty. 1 ST
Depth 40 mm
Depth (inches) 1.5748 inch
Height 8 mm
Height (inches) 0.31496 inch
Net weight 228 g
Width 240 mm
Width (inches) 9.4488 inch
Operating temperature -20 - 60°C
REACH SVHC Lead 7439-92-1
Cable Material PUR
Sheathing colour black
Housing main material hard anodised aluminium
Cable length 0.3 m
Core cross-section 0.34 mm²
Version pin, straight
Coding A
Connection thread M12
Tightening torque 0.8 Nm
Wiring Pin 4 (Strand: black) control red LED
Pin 3 (Strand: blue)
Rated voltage (text) 24 V DC
Rated current 0,36 A
Power 8,5 W
Dimmable Yes
Number of LEDs 42
Light colour (CCT) Red
Light current 208 lm
Emitting angle 40 °
Spectral colour 615 - 630 nm
Illumination level 71 lux
Operating life 60.000 h
Type of mounting Screw mounting
Drill hole spacing 225 mm
Impact resistance IK05
Protection degree IP67
Housing main material hard anodised aluminium
Encapsulation compound PUR V0
Threaded ring material PA
Material of end caps Diecast zinc
nickel-plated
Engineering Data [STEP](http://download.weidmueller.com/asset/download/file/89499)
CADENAS eCATALOG [Cax data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2436340000)
ETIM 6.0 EC001959
ETIM 7.0 EC001959
eClass 9.0 27-11-06-40
eClass 9.1 27-11-06-40
eClass 10.0 27-11-06-40
eClass 11.0 27110640
Approvals ![CE](/picture/CE.gif) ![CULUS](/picture/CULUS.gif)
ROHS Conform
UL File Number Search [E354496](LINK/UL_search.html)
