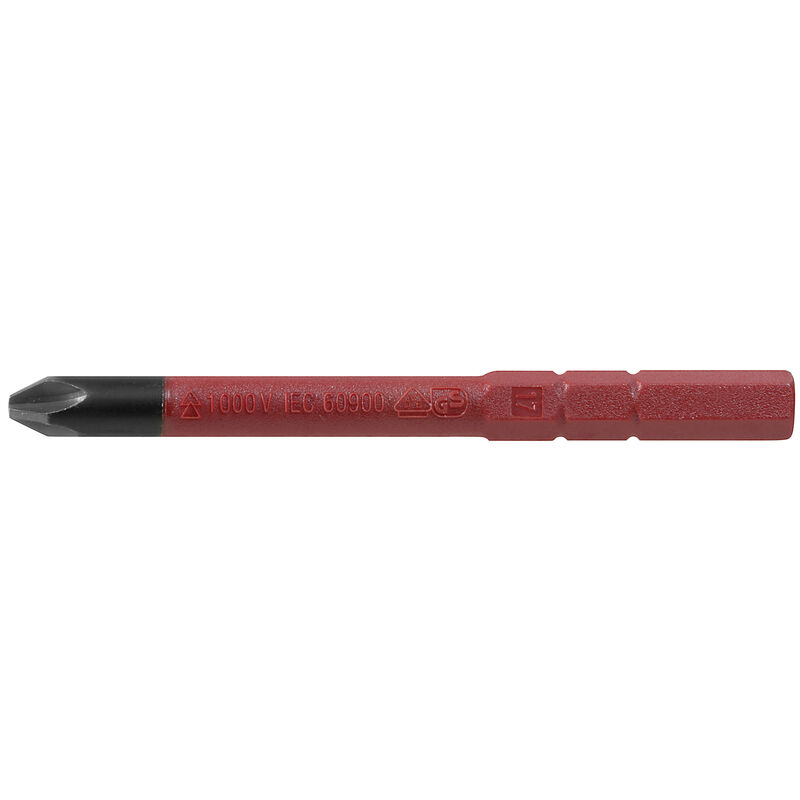

WB IK SL PH2
Similar to illustration

WB IK SL PH2

Screwdriver insert

Tuotteen tunnus 2433220000
Lataa tietosivu Product Downloads
On lisävaruste 4 Yksittäinen osa tuotteelle 1 Samankaltaiset tuotteet 2
General ordering data Dimensions and weights Environmental Product Compliance Technical data Инструменты для затяжки Classifications

General ordering data

Ausfuehrung
Screwdriver insert
Číslo objednávky
2433220000
Typ
WB IK SL PH2
GTIN (EAN)
4050118443691
Qty.
1 items

Dimensions and weights

Tiefe
7 mm
Depth (inches)
0,276 inch
Height
75 mm
Height (inches)
2,953 inch
Breite
7 mm
Width (inches)
0,276 inch
Net weight
11,7 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

품목 설명
VDE insulated interchangeable bit for crosshead screws, Phillips head, size 2

Инструменты для затяжки

Form
Philips
Größe
2
Klingenbreite (B)
2 mm
Klingenstärke (A)
2 mm
Longitud de caña
25 mm
Regolazione coppia di serraggio, max.
5,5 Nm
Taille de la lame pour vis à tête cruciforme
2

Classifications

ETIM 8.0
EC003864
ETIM 9.0
EC003864
ETIM 10.0
EC003864
ECLASS 14.0
21-04-42-03
ECLASS 15.0
21-04-42-03
