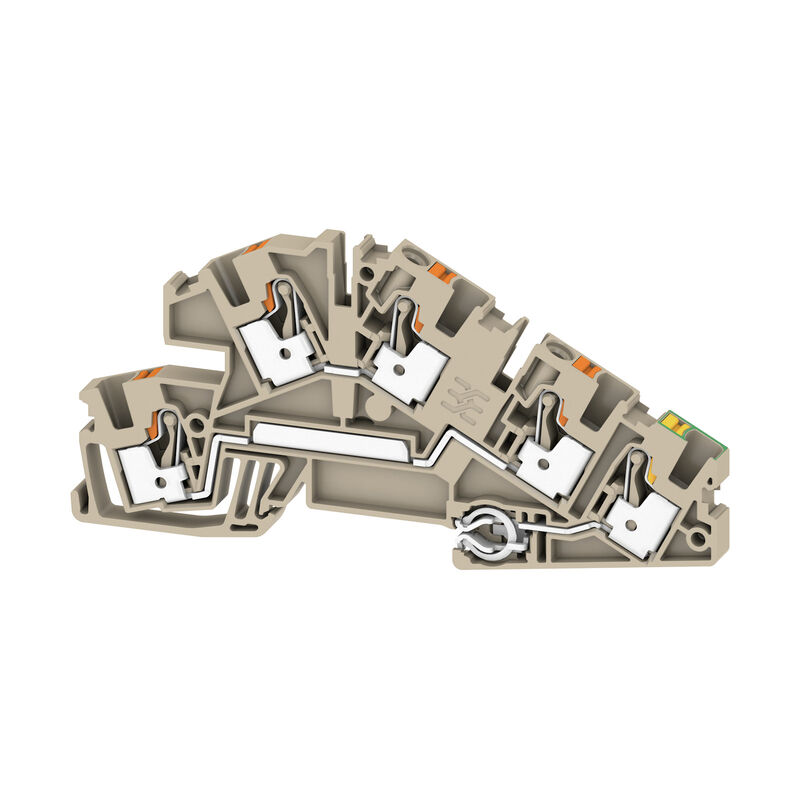

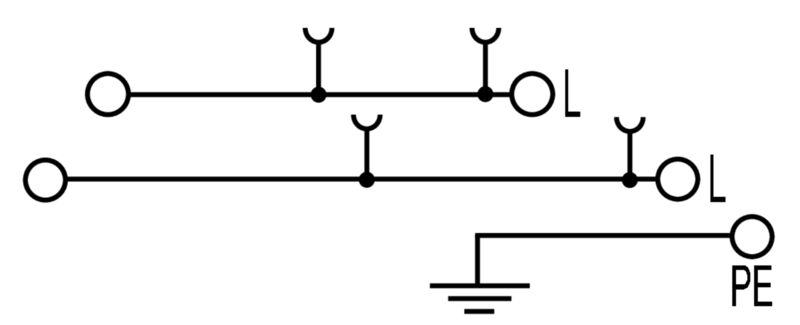

Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3

Product ID 2669080000
Openen in configurator
Gegevensblad downloaden Engineering Support Produkt Downloads
Lisävarusteet 40 Samankaltaiset tuotteet 66
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Autres caractéristiques techniques Conductors for clamping (rated connection) General Rating data UL data hodnocení Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Version
Multi level installation terminal block, PUSH IN, dark beige, 4 mm², 30 A, 250 V, Number of connections: 5, Number of levels: 3
Order No.
2669080000
Type
AITB 4 BB L-L-PE
GTIN (EAN)
4064675266310
Ilość
25 items

Dimensions and weights

Depth
53,2 mm
Depth (inches)
2,094 inch
Height
110,2 mm
Height (inches)
4,339 inch
Width
6,1 mm
Width (inches)
0,24 inch
Net weight
24,912 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Materiał podstawowy
Wemid
Цветовой код
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

Flasque de fermeture nécessaire
Yes
Number of potentials
3
Number of levels
3
Number of clamping points per level
2
Levels cross-connected internally
No
Mounting rail
TS 35
Funzione N
No
Функция PE
Yes
PEN function
No

Autres caractéristiques techniques

rastbar
Sì
Type of mounting
Snap-on
Открытые страницы
right

Conductors for clamping (rated connection)

Blade size
0,6 x 3,5 mm
Clamping range, max.
6 mm²
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A4
Number of connections
5
Stripping length
12 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1,5 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      9 mm
    • max.:
      15 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

General

Mounting rail
TS 35
Standards
IEC 60947-7-1 (-7-2)
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Przekrój pomiarowy
4 mm²
Tension nominale
250 V
Znamionowe napięcie stałe
250 V
Corrente nominale
30 A
Current at maximum wires
36 A
표준 규격
IEC 60947-7-1 (-7-2)
정격 임펄스 내전압
4 kV
Teljesítményveszteség az IEC 60947-7-x szerint
1,02 W
Rated voltage (L / L)
400 V
Rated voltage (L / N)
250 V
Rated voltage (L / PE)
250 V
Pollution severity
3
Surge voltage category
III

UL data hodnocení

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
10 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
10 AWG
Conductor size Field wiring min. (cURus)
26 AWG

Classifications

ETIM 8.0
EC001329
ETIM 9.0
EC001329
ETIM 10.0
EC001329
ECLASS 14.0
27-25-01-10
ECLASS 15.0
27-25-01-10
