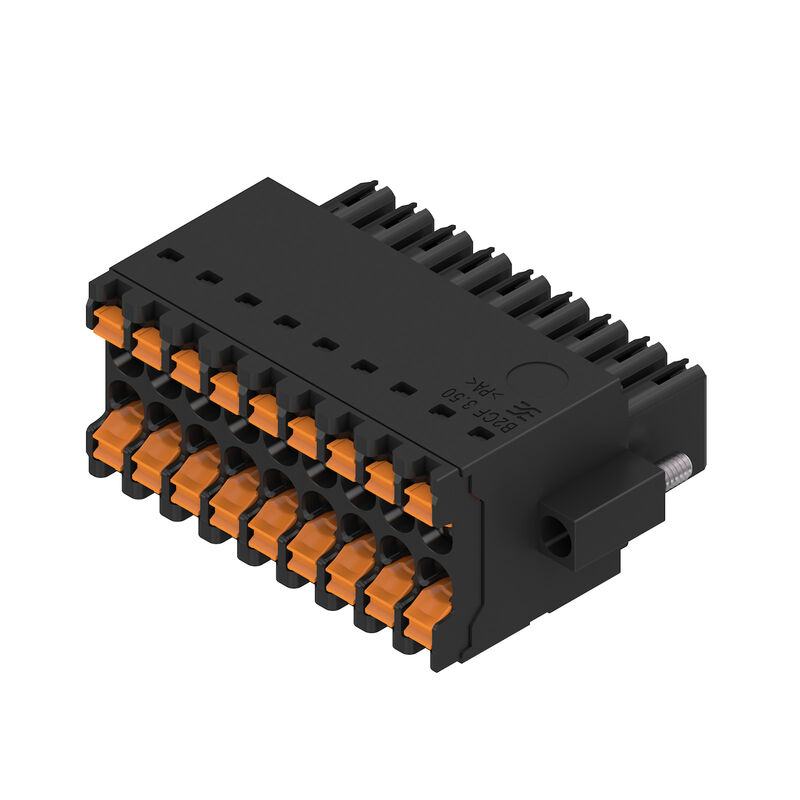

B2CF 3.50/18/180F SN BK BX
Product image
similar to illustration

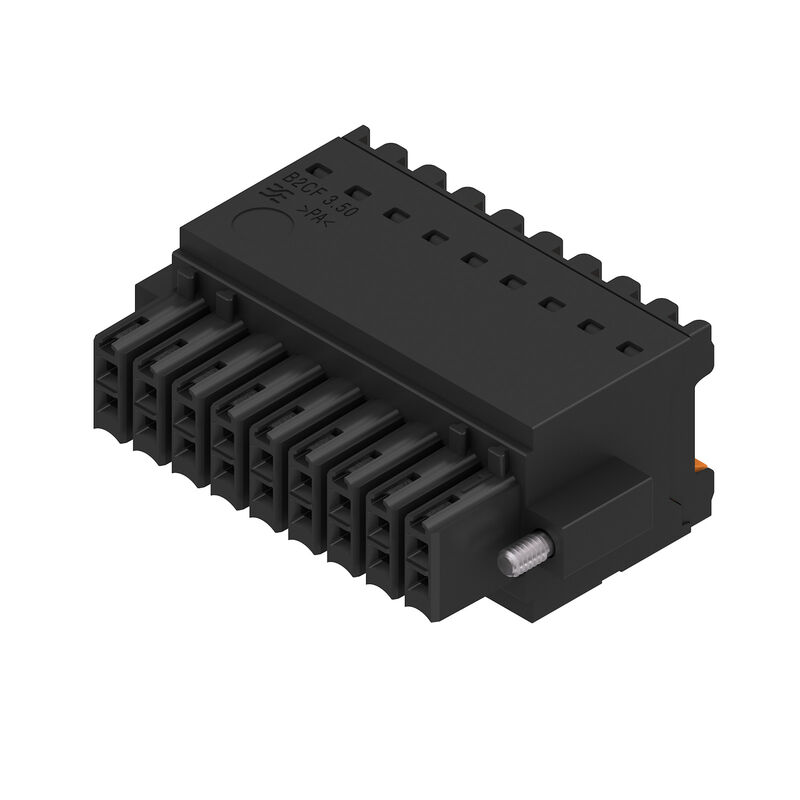

B2CF 3.50/18/180F SN BK BX
Product image
B2CF 3.50/18/180F SN BK BX
Dimensional drawing
B2CF 3.50/18/180F SN BK BX
Graph
B2CF 3.50/18/180F SN BK BX
Product benefits
Solid PUSH IN contact
Safe and durable
B2CF 3.50/18/180F SN BK BX
Product benefits
Large connection cross-section
Up to 1.5 mm possible with ease
B2CF 3.50/18/180F SN BK BX
Product benefits
Fast PUSH IN connection
Tool-free and touch-safe
B2CF 3.50/18/180F SN BK BX
Example of use

B2CF 3.50/18/180F SN BK BX

PCB plug-in connector, female plug, 3.50 mm, Number of poles: 18, 180°, PUSH IN with push button, Clamping range, max. : 1.5 mm², Box

Item No. 1277930000
Download data sheet Engineering Support Product Downloads
Accessories 2 Counterparts 11 Related products 44
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Dati di dimensionamento secondo IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

General ordering data

Ausfuehrung
PCB plug-in connector, female plug, 3.50 mm, Number of poles: 18, 180°, PUSH IN with push button, Clamping range, max. : 1.5 mm², Box
Best.-Nr.
1277930000
Art
B2CF 3.50/18/180F SN BK BX
GTIN (EAN)
4050118068559
Qty.
48 items
Product data
IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²
UL: 300 V / 9.5 A / AWG 30 - AWG 16
Packaging
Box

Dimensions and weights

Tiefe
25.25 mm
Profondeur (pouces)
0.994 inch
Höhe
15.2 mm
Height (inches)
0.598 inch
Breite
38.5 mm
Width (inches)
1.516 inch
Nettogewicht
12.319 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.287 kg CO2eq.

System Parameters

Product family
OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
Type of connection
Field connection
Wire connection method
PUSH IN with push button
Pitch in mm (P)
3.5 mm
Raster in Zoll (P)
0.138 "
Leiterabgangsrichtung
180°
Number of poles
18
L1 in mm
28 mm
L1 in inches
1.102 "
Number of rows
1
Pin series quantity
2
Rated cross-section
15 mm²
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Protection degree
IP20
when fully mounted
Can be coded
Yes
Stripping length
10 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
3.5 N
Pulling force/pole, max.
3.5 N
Tightening torque
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0.15 Nm
      • max.:
        0.2 Nm

Material data

Isolierstoff
PA 66 GF 30
Farbe
black
Color componentes de accionamiento
orange
Farbtabelle (ähnlich)
RAL 9011
Isolierstoffgruppe
II
Kriechstromfestigkeit (CTI)
≥ 600
Isolationswiderstand
≥ 108 Ω
UL 94 flammability rating
V-0
Kontaktmaterial
Copper alloy
Kontaktoberfläche
tinned
Schichtaufbau - Steckkontakt
2...5 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-40 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Klemmbereich, min.
0.14 mm²
Klemmbereich, max.
1.5 mm²
Leiteranschlussquerschnitt AWG, min.
AWG 30
Leiteranschlussquerschnitt AWG, max.
AWG 16
eindrähtig, min. H05(07) V-U
0.14 mm²
eindrähtig, max. H05(07) V-U
1.5 mm²
feindrähtig, min. H05(07) V-K
0.14 mm²
feindrähtig, max. H05(07) V-K
1.5 mm²
mit AEH mit Kragen DIN 46 228/4, min.
0.14 mm²
mit AEH mit Kragen DIN 46 228/4, max.
1 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0.14 mm²
mit Aderendhülse nach DIN 46 228/1, max.
1.5 mm²
Clampable conductor
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9028240000
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025780000
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9025790000
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028270000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028290000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9028320000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
Hinweistext
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Dati di dimensionamento secondo IEC

표준에 따라 시험완료
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
13.4 A
Bemessungsstrom, max. Polzahl (Tu=20°C)
10 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
12 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
9 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
320 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
160 V
Rated voltage for surge voltage class / pollution degree III/3
160 V
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad II/2
2.5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2.5 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3
2.5 kV
Kurzzeitstromfestigkeit
3 x 1s with 80 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Nennspannung (Use group D / CSA)
300 V
Nennstrom (Use group B / CSA)
9.5 A
Nennstrom (Use group C / CSA)
9.5 A
Nennstrom (Use group D / CSA)
9.5 A
Leiteranschlussquerschnitt AWG, min.
AWG 30
Leiteranschlussquerschnitt AWG, max.
AWG 16
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
50 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
9.5 A
Rated current (Use group C / UL 1059)
9.5 A
Rated current (Use group D / UL 1059)
9.5 A
Sección de conexión del conductor AWG, mín.
AWG 30
Wire cross-section, AWG, max.
AWG 16
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
349 mm
VPE Breite
141 mm
VPE Höhe
31 mm

Type tests

Prüfung: Haltbarkeit der Markierungen
  • Standard:
    IEC 61984 section 6.2 and 7.3.2 / 10.11 taking pattern from IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking cULus
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Prüfung: Fehlerhafte Kupplung (Nichtaustauschbarkeit)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Prüfung: Klemmbarer Querschnitt
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Prüfung auf Beschädigung und unbeabsichtigtes Lösen von Leitern
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-Out Test
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC-Konformität
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Hinweise
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Max. outer diameter of the conductor 2.6 mm
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
