B2CF 3.50/20/180FZE SN OR BX

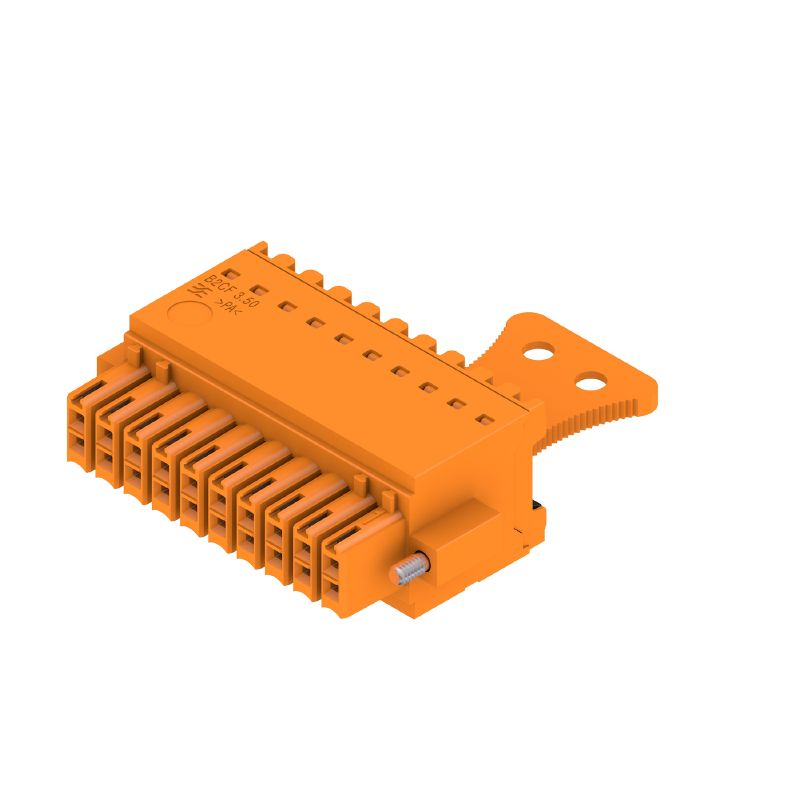

Product image
B2CF 3.50/20/180FZE SN OR BX
Product image
B2CF 3.50/20/180FZE SN OR BX
Dimensional drawing
B2CF 3.50/20/180FZE SN OR BX
Graph
B2CF 3.50/20/180FZE SN OR BX
Product benefits
Solid PUSH IN contact
Safe and durable
B2CF 3.50/20/180FZE SN OR BX
Product benefits
Large connection cross-section
Up to 1.5 mm possible with ease
B2CF 3.50/20/180FZE SN OR BX
Product benefits
Fast PUSH IN connection
Tool-free and touch-safe
B2CF 3.50/20/180FZE SN OR BX
Example of use

B2CF 3.50/20/180FZE SN OR BX

Connettore per circuito stampato, Connettore femmina, 3.50 mm, Numero di poli: 20, 180°, PUSH IN con tasto di attivazione, Campo di sezioni, max. : 1.5 mm², Box

Product ID 3021410000
Gegevensblad downloaden Descargas de productos
Använda produkter 9
Approvals Általános rendelési adatok Dimensions and weights Termékek környezetvédelmi megfelelősége System Parameters Material data Conductors suitable for connection Névleges adatok IEC szerint Rated data acc. to CSA Rated data acc. to UL 1059 Emballage Type tests 중요 참고 사항 Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Núm. de certificación (cURus)
E60693

Általános rendelési adatok

Version
Connettore per circuito stampato, Connettore femmina, 3.50 mm, Numero di poli: 20, 180°, PUSH IN con tasto di attivazione, Campo di sezioni, max. : 1.5 mm², Box
Référence
3021410000
Type
B2CF 3.50/20/180FZE SN OR BX
GTIN (EAN)
4099986937642
Cantidad
42 items
Product data
IEC: 320 V / 13.4 A / 0.14 - 1.5 mm²
UL: 300 V / 9.5 A / AWG 30 - AWG 16
Packaging
Box

Dimensions and weights

Depth
49,04 mm
Profundidad (pulgadas)
1,931 inch
Height
17,25 mm
Height (inches)
0,679 inch
Width
41,9 mm
Width (inches)
1,65 inch
Peso netto
14,256 g

Termékek környezetvédelmi megfelelősége

RoHS megfelelőségi állapot
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Familia del producto
OMNIMATE Signal - series B2C/S2C 3.50 - 2-row
Tipo de conexión
Field connection
Wire connection method
PUSH IN with push button
Pitch in mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Conductor outlet direction
180°
Número de polos
20
L1 en mm
31,5 mm
L1 en pulgadas
1,24 "
Number of rows
1
핀 시리즈 수량
2
Rated cross-section
15 mm²
Touch-safe protection acc. to DIN VDE 57 106
Ujjak számára biztonságos
Touch-safe protection acc. to DIN VDE 0470
IP 20 ansluten
Protection degree
IP20
when fully mounted
Kodierbar
Yes
Stripping length
10 mm
Screwdriver blade
0.4 x 2.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
3,5 N
Pulling force/pole, max.
3,5 N
Tightening torque
  • Torque type:
    Screw flange
  • Usage information:
    • Tightening torque:
      • min.:
        0,15 Nm
      • max.:
        0,2 Nm

Material data

Materiales aislantes
PA 66 GF 30
Color
주황색
Color componentes de accionamiento
black
Colour chart (similar)
RAL 2000
Isolierstoffgruppe
II
Komparativní index sledování (CTI)
≥ 600
Resistenza d'isolamento
≥ 108 Ω
UL 94 flammability rating
V-0
Materiał styków
Lega di rame
Contact surface
tinned
Layer structure of plug contact
2...5 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Provozní teplota, min.
-50 °C
Provozní teplota, max.
120 °C
Teplotní rozsah, instalace, min.
-40 °C
Temperaturbereich Montage, max.
120 °C

Conductors suitable for connection

Campo di sezioni, min.
0,14 mm²
Campo di sezioni, max.
1,5 mm²
Sección de conexión del conductor AWG, min.
AWG 30
Sezione di collegamento cavo AWG, max.
AWG 16
Pevné, min. H05(07) V-U
0,14 mm²
rigido, max. H05(07) V-U
1,5 mm²
Pružné, min. H05(07) V-K
0,14 mm²
Flexible, max. H05(07) V-K
1,5 mm²
con terminale AEH con collare DIN 46 228/4, min.
0,14 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1 mm²
con terminal tubular, DIN 46228 pt 1, mín.
0,14 mm²
С кабельным наконечником согласно DIN 46 228/1, макс.
1,5 mm²
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Névleges adatok IEC szerint

Testato secondo lo standard
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
13,4 A
Corriente nominal, número de polos máx. (Tu=20 °C)
10 A
Rated current, min. number of poles (Tu=40°C)
12 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
9 A
Rated voltage for surge voltage class / pollution degree II/2
320 V
Rated voltage for surge voltage class / pollution degree III/2
160 V
Tensión nominal con categoría de sobretensión/grado de polución III/3
160 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Tensión nominal con categoría de sobretensión/grado de polución III/2
2,5 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
50 V
Номинальное напряжение (группа использования D/CSA)
300 V
Märkström (användargrupp B / CSA)
9,5 A
Rated current (Use group C / CSA)
9,5 A
Rated current (Use group D / CSA)
9,5 A
Wire cross-section, AWG, min.
AWG 30
Wire cross-section, AWG, max.
AWG 16

Rated data acc. to UL 1059

Instituto (cURus)
CURUS
Núm. de certificación (cURus)
E60693
Tensión nominal (Use Group B / UL 1059)
300 V
Névleges feszültség (C felhasználási csoport / UL 1059)
50 V
정격 전압(사용 그룹 D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
9,5 A
Rated current (Use group C / UL 1059)
9,5 A
Rated current (Use group D / UL 1059)
9,5 A
Sección de conexión del conductor AWG, mín.
AWG 30
Leiteranschlussquerschnitt AWG, max.
AWG 16
Reference to approval values
Las especificaciones son valores máximos; para más información, ver certificado de homologación.

Emballage

Packaging
Doboz
Lunghezza VPE
348 mm
VPE width
134 mm
VPE height
57 mm

Type tests

Teszt: Jelölések tartóssága
  • Standard:
    IEC 61984 section 6.2 and 7.3.2 / 10.11 taking pattern from IEC 60068-2-70 / 12.95
  • Test:
    mark of origin, type identification, pitch, type of material, date clock, approval marking UL, approval marking cULus
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: Innesto errato (Non intercambiabilità)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.11, IEC 60512-13-5 / 02.06
  • Test:
    180° turned without coding elements
  • Evaluation:
    passed
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
테스트: 클램프 사용 가능한 단면
  • Standard:
    IEC 60999-1 section 7 and 9.1 / 11.99, IEC 60947-1 section 8.2.4.5.1 / 03.11
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Испытание на повреждение из-за случайного ослабления проводов
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Испытание на выдергивание
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.75
    • Type of conductor and conductor cross-section:
      H05V-K0.75
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

중요 참고 사항

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Crimp shape A for wire-end ferrules with crimping tools PZ 1,5 (order no. 9005990000) or PZ 6/5 (order no. 9011460000) for larger wire cross-sections recommended.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Max. outer diameter of the conductor 2.6 mm
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
