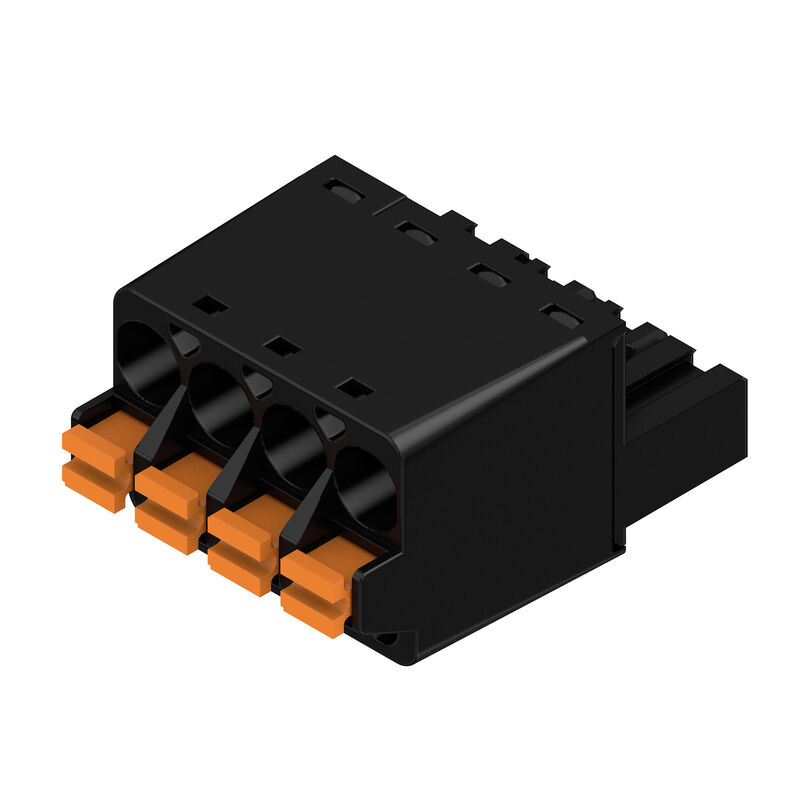

Product image
BLF 5.00HC/04/180 SN BK BX
Product image
BLF 5.00HC/04/180 SN BK BX
Dimensional drawing
BLF 5.00HC/04/180 SN BK BX
Graph
BLF 5.00HC/04/180 SN BK BX
Graph
Uncompromising functionality
High vibration resistance
BLF 5.00HC/04/180 SN BK BX
Product benefits
Uncompromising functionality
High vibration resistance
BLF 5.00HC/04/180 SN BK BX
Product benefits
Solid PUSH IN contact
Safe and durable
BLF 5.00HC/04/180 SN BK BX
Product benefits
Cost-effective wiring
Quick and intuitive operation
BLF 5.00HC/04/180 SN BK BX
Product benefits
Wide clamping range
Tool-free wire connection

BLF 5.00HC/04/180 SN BK BX

Conector para placa c.i., enchufe hembra, 5.00 mm, Número de polos: 4, 180°, PUSH IN con actuador, Sección de embornado, máx. : 3.31 mm², Caja

Item No. 1017690000
Download data sheet Engineering Support Product Downloads
Accessories 2 Counterparts 19 Related products 26
Agréments Datos generales para pedido Dimensions et poids Conformité environnementale du produit System Parameters Material data Conductors suitable for connection Datos nominales conformes a IEC Datos nominales según CSA Rated data acc. to UL 1059 Emballage Típusvizsgálatok Fontos megjegyzés 분류

Agréments

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Zgodny
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (cURus)
E60693

Datos generales para pedido

Ausfuehrung
Conector para placa c.i., enchufe hembra, 5.00 mm, Número de polos: 4, 180°, PUSH IN con actuador, Sección de embornado, máx. : 3.31 mm², Caja
Best.-Nr.
1017690000
Art
BLF 5.00HC/04/180 SN BK BX
GTIN (EAN)
4032248728824
VPE
90 items
Product data
IEC: 400 V / 23 A / 0.2 - 2.5 mm²
UL: 300 V / 18.5 A / AWG 26 - AWG 12
Packaging
Box

Dimensions et poids

Tiefe
27,6 mm
Tiefe (inch)
1,087 inch
Höhe
14,2 mm
높이 (인치)
0,559 inch
Breite
20 mm
Ширина (в дюймах)
0,787 inch
Nettogewicht
7,889 g

Conformité environnementale du produit

RoHS-Konformitätsstatus
Conforme sans exemption
REACH SVHC
No SVHC above 0.1 wt%
Produktspezifischer CO2-Fußabdruck
  • Cradle to gate:
    0,694 kg CO2 eq.

System Parameters

Product family
OMNIMATE Signal - série BL/SL 5.00
Type of connection
フィールド接続
Wire connection method
PUSH IN с исполнительным устройством
Raster in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Leiterabgangsrichtung
180°
Number of poles
4
L1 in mm
15 mm
L1 in inches
0,591 "
Anzahl Reihen
1
Pin series quantity
1
Bemessungsquerschnitt
2,5 mm²
Berührungsschutz nach DIN VDE 57 106
Safe from back-of-hand touch
Berührungsschutz nach DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Durchgangswiderstand
≤5 mΩ
Can be coded
Yes
Abisolierlänge
10 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5,5 N

Material data

Isolierstoff
PBT
Farbe
fekete
Farbe Betätigungselemente
주황색
Farbtabelle (ähnlich)
RAL 9011
Isolierstoffgruppe
IIIa
Kriechstromfestigkeit (CTI)
≥ 200
UL 94 flammability rating
V-0
Kontaktmaterial
Cu-alloy
Kontaktoberfläche
tinned
Schichtaufbau - Steckkontakt
4...8 µm Sn hot-dip tinned
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Klemmbereich, min.
0,13 mm²
Klemmbereich, max.
3,31 mm²
Leiteranschlussquerschnitt AWG, min.
AWG 26
Leiteranschlussquerschnitt AWG, max.
AWG 12
eindrähtig, min. H05(07) V-U
0,2 mm²
eindrähtig, max. H05(07) V-U
2,5 mm²
feindrähtig, min. H05(07) V-K
0,2 mm²
feindrähtig, max. H05(07) V-K
2,5 mm²
mit AEH mit Kragen DIN 46 228/4, max.
2,5 mm²
mit Aderendhülse nach DIN 46 228/1, min.
0,25 mm²
mit Aderendhülse nach DIN 46 228/1, max.
2,5 mm²
Lehrdorn nach EN 60999 a x b; ø
2.8 mm x 2.0 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
Hinweistext
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Datos nominales conformes a IEC

testado según la norma
IEC 60664-1
IEC 61984
Bemessungsstrom, min. Polzahl (Tu=20°C)
23 A
Bemessungsstrom, max. Polzahl (Tu=20°C)
18 A
Bemessungsstrom, min. Polzahl (Tu=40°C)
21 A
Bemessungsstrom, max. Polzahl (Tu=40°C)
16 A
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad II/2
400 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/2
320 V
Bemessungsspannung bei Überspannungsk./Verschmutzungsgrad III/3
250 V
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad II/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/2
4 kV
Bemessungsstoßspannung bei Überspannungsk./Verschmutzungsgrad III/3
4 kV
Kurzzeitstromfestigkeit
3 x 1s with 120 A

Datos nominales según CSA

Institut (CSA)
CSA
Zertifikat-Nr. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Nennstrom (Use group B / CSA)
10 A
Nennstrom (Use group D / CSA)
10 A
Leiteranschlussquerschnitt AWG, min.
AWG 12
Leiteranschlussquerschnitt AWG, max.
AWG 26
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Nennstrom (Use group B / UL 1059)
18,5 A
Nennstrom (Use group D / UL 1059)
10 A
Leiteranschlussquerschnitt AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Hinweis zu den Zulassungswerten
Specifications are maximum values, details - see approval certificate.

Emballage

Verpackung
Boîte
VPE Länge
351 mm
VPE Breite
137 mm
VPE Höhe
38 mm

Típusvizsgálatok

Prüfung: Haltbarkeit der Markierungen
  • Standard:
    IEC 61984 szabvány, 6.2 és 7.3.2 / 10.08 szakasz, minta az IEC 60068-2-70 / 12.95 szabvány szerint
  • Teszt:
    eredetjelölés, típusazonosítás, raszter, anyagtípus, dátum óra
  • Kiértékelés:
    elérhető
  • Teszt:
    tartósság
  • Kiértékelés:
    átadva
Prüfung: Fehlerhafte Kupplung (Nichtaustauschbarkeit)
  • Standard:
    IEC 61984 section 6.3 and 6.9.1 / 10.08, IEC 60512-13-5 / 02.06
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Prüfung: Klemmbarer Querschnitt
  • Стандарт:
    IEC 60999-1, раздел 7 и 9.1/11.99, IEC 60947-1, раздел 8.2.4.5.1/06.07
  • Тип проводника:
    • Тип провода и его поперечное сечение:
      цельный 0,2 мм²
    • Тип провода и его поперечное сечение:
      многожильный 0,2 мм²
    • Тип провода и его поперечное сечение:
      цельный 2,5 мм²
    • Тип провода и его поперечное сечение:
      многожильный 2,5 мм²
    • Тип провода и его поперечное сечение:
      AWG 26/1
    • Тип провода и его поперечное сечение:
      AWG 26/19
    • Тип провода и его поперечное сечение:
      AWG 14/1
    • Тип провода и его поперечное сечение:
      AWG 14/19
  • Оценивание:
    пройдено
Prüfung auf Beschädigung und unbeabsichtigtes Lösen von Leitern
  • Standard:
    IEC 60999-1 section 9.4 / 11.99
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Pull-Out Test
  • Standard:
    IEC 60999-1 section 9.5 / 11.99
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed

Fontos megjegyzés

IPC-Konformität
A termékek fejlesztése, gyártása és szállítása a nemzetközileg elismert IPC-A-610 szabvány „megengedhető” kategóriája szerint történt. A termékekkel kapcsolatos további követelményeket kérésre kiértékeljük.
Hinweise
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
