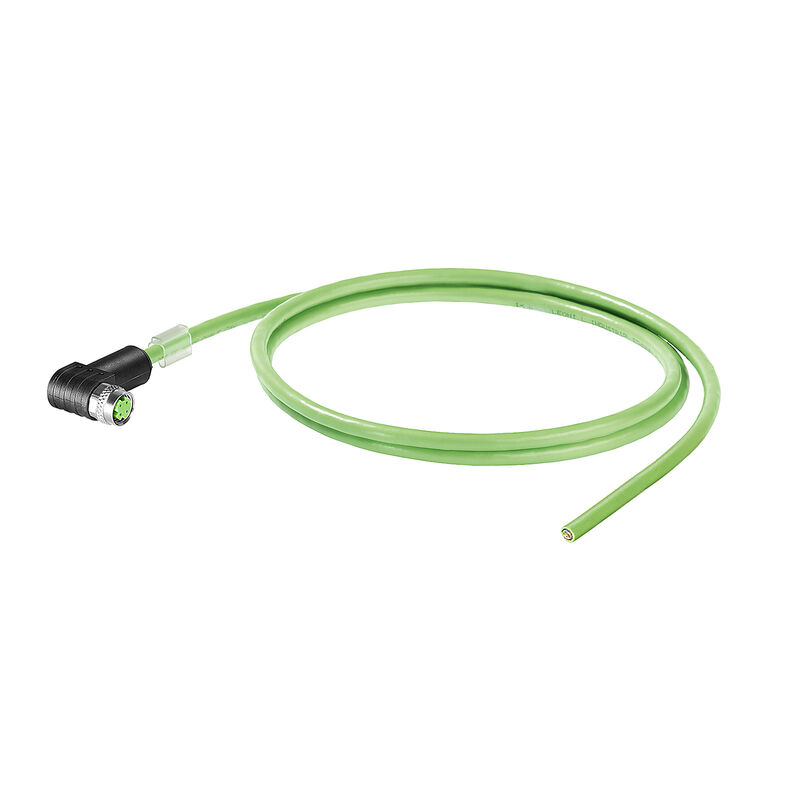

Dragline cable, PROFINET, M8 D-code - IP67 angeled socket, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 30 m

Ürün No. 2706160300
Veri sayfasını indir Mühendislik desteği
İlgili ürünler 57
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Verze
Dragline cable, PROFINET, M8 D-code - IP67 angeled socket, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 30 m
Order No.
2706160300
Typ
IE-C5DD4UG0300DSAXXX-E
GTIN (EAN)
4050118743050
Množství
1 adet

Dimensions and weights

Length
30 m
Length (inches)
1.181,102 inch
Net weight
1.845 g

Temperatures

Skladovací teplota
-50 °C...70 °C
Provozní teplota
-40 °C...70 °C
Teplota instalace
-20 °C...60 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

General standards

Connector standard
IEC 61076-2-114

Standards

Connector standard
IEC 61076-2-114
Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Arrangement of wire cores
Star-quad
Colour sequence or wires - wire pairs
white, yellow, blue, orange
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
3,9 mm
Filler
As central element
Insulation
PE
Insulation cross-section
1,5 mm
Material sheath
PUR
Number of wires
4
Overlap of shielding braid
85 %
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,9 mm
Shielding
SF/UTP
Shielding braid thickness
0,13 mm
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Wire core insulation thickness
0,38 mm
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Capacity at 1 kHz
52 nF/km
Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Resistance differential
3 %
Signal propagation time
5,3 ns/m
Speed
180 m/min
Test voltage: wire-wire-shield
2000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m at 10 MHz

Mechanical and material properties of cable

Accélération
4 m/s²
Hajlítási ciklusok
3 Mio
Halogen
halogen-free, according to IEC 60754-2
Kopásállóság
very good
Pulling force
≤ 150 N
Rayon de courbure min, multiple
7.5 x cable diameter
Rayon de courbure, min., unique
5 x cable diameter
Resistencia al aceite
in accordance with IEC 60811-2-1
Resistenza alla fiamma
in accordance with IEC 60332-1
Sin silicona
Yes
Trasmissione del fuoco
No
UV resistente
Yes
Velocità
180 m/min

Plug, left

左プラグ
M8, D-coded, IP67, female contact, angled 90°, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
