IE-C5DE4UP0050PSSXXX-E

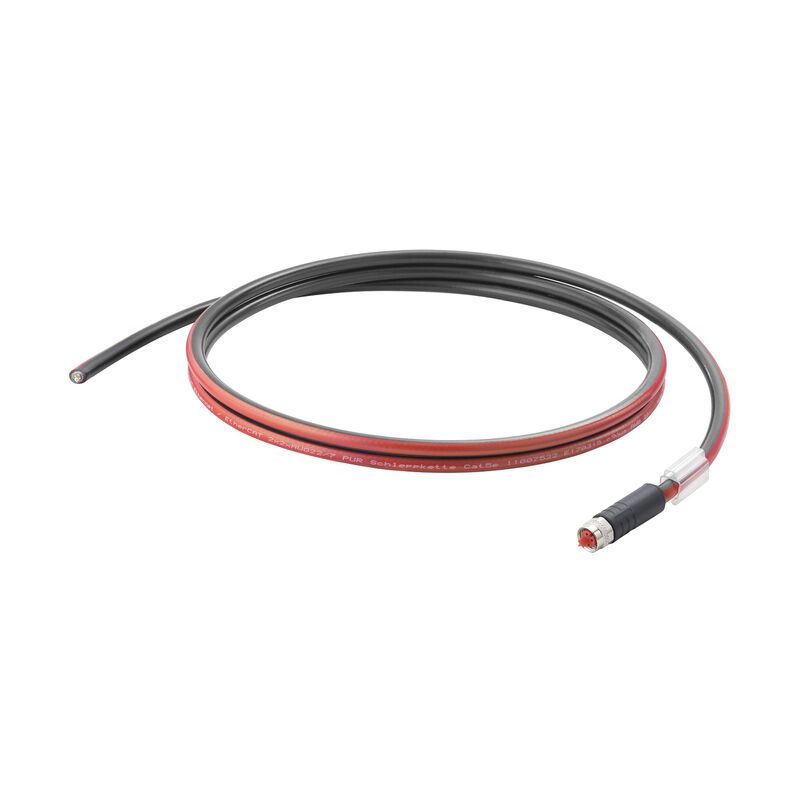

Câble pour chaîne porte-câbles, M8 codage P – connecteur droit IP 67, ouvert, Cat. 5e, PUR, 5 m

Tuotteen tunnus 2717740050
Lataa tietosivu Tekninen tuki
Samankaltaiset tuotteet 50
Tanúsítványok Informations générales de commande Dimensioni e pesi Hőmérsékletek Conformité environnementale du produit Technical specifications for cable General technical data Plug, left Plug, right Classifications

Tanúsítványok

ROHS
Conforme

Informations générales de commande

Version
Câble pour chaîne porte-câbles, M8 codage P – connecteur droit IP 67, ouvert, Cat. 5e, PUR, 5 m
Order No.
2717740050
Type
IE-C5DE4UP0050PSSXXX-E
GTIN (EAN)
4050118778823
수량
1 items

Dimensioni e pesi

Length
5 m
Lunghezza (pollici)
196,85 inch
순중량
313 g

Hőmérsékletek

Operating temperature
-40 °C...80 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Technical specifications for cable

Bending cycles
2 Mio
Colour coding
white
yellow
blue
orange
Halogen
halogen-free, according to IEC 60754
Insulation
Polyolefin
Number of poles
4
Number of wires
4
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
Yes
Sheath material
PUR
Sheathing colour
schwarz
Shielded
Ja
Suitable for cable carriers
Nein
Temperature range, moving
-30...70 °C
Temperature range, stationary
-40...80 °C
Test voltage: wire-wire-shield
1 kV CC, 1 min
1000 Veff, 50 Hz, 1 min

General technical data

Protection degree
IP67

Plug, left

Plug left
M8, P-coded, IP67, female contact, straight, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
