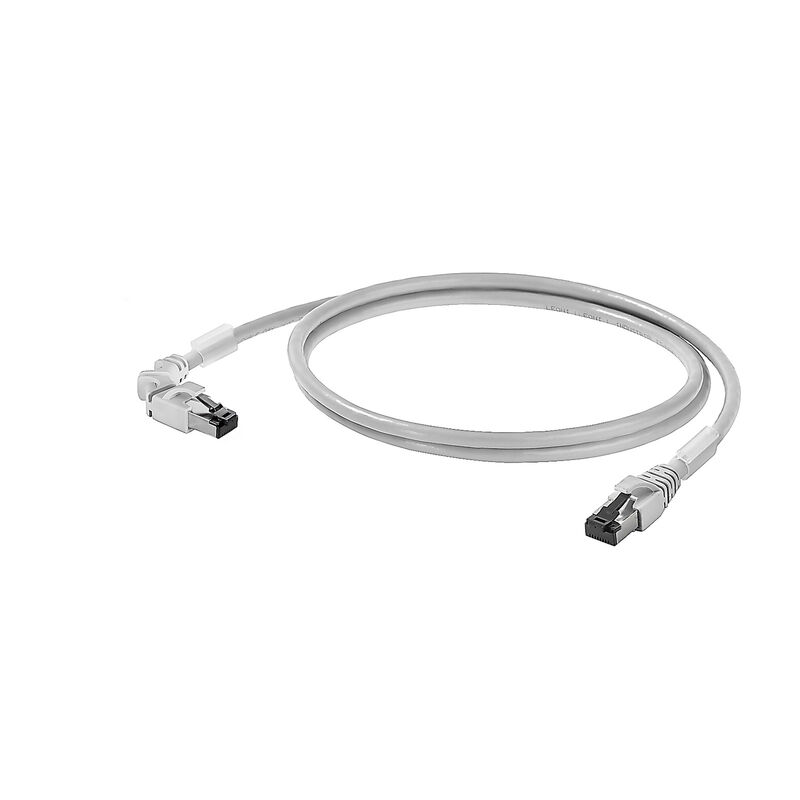

Patch cable, RJ45 IP 20, RJ45 IP 20, Angled 90° left, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 2 m

Product ID 2703320020
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 2 Verwante producten 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/c4bf74a6-04a5-4e4b-82e5-d75bdf1b56fe/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Ausfuehrung
Patch cable, RJ45 IP 20, RJ45 IP 20, Angled 90° left, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 2 m
Order No.
2703320020
Art
IE-C6FP8LD0020M40L40-D
GTIN (EAN)
4050118711394
Qty.
1 items

Dimensions and weights

Délka
2 m
Length (inches)
78,74 inch
Net weight
89 g

Temperatures

Lagertemperatur
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Verlegetemperatur
0 °C...50 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity at 50 °C
1 A
PoE / PoE+
conforming to IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1,04 mm
Material sheath
LSZH
Number of wires
8
Overlap of shielding braid
60 %
Sheath diameter, max.
5,9 mm
Sheath diameter, min.
5,5 mm
Sheathing colour
grey
Shielding
S/FTP
Strands
7
Wire pair shielding
Aluminium foil

Electrical properties of cable

Capacity at 1 kHz
46 nF/km
Category
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Charakteristická impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
2,5 ns/100m
Operating voltage
50 V DC
Operating voltage (UL rating)
30 V AC / 42.4 V DC
Resistance differential
5 %
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec

Mechanical and material properties of cable

Alogeni
halogen-free, according to IEC 60754-2
Couleur
grey
최소 구부림 반경, 한 번만
4 x cable diameter
화염 내성
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Plug

Clavija de conexión derecha
RJ45, IP20, male contact, angled 90° left, plug, Plastic, shielded
Csatlakozó, bal
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, left

Штекер левый
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, angled 90° left, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
