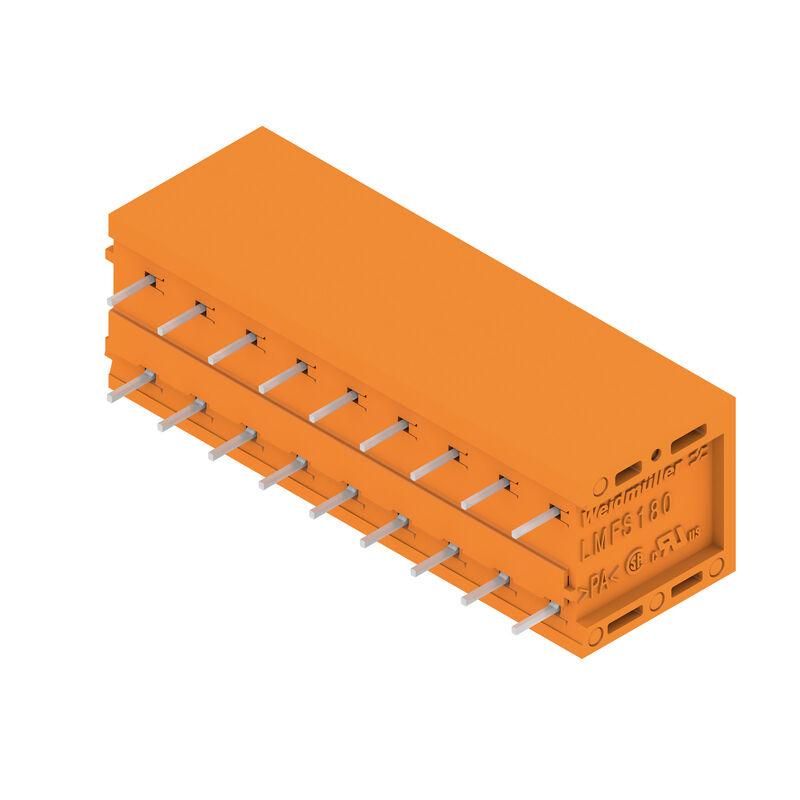

Printed circuit board terminals, 5.00 mm, Number of poles: 9, 180°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN, Clamping range, max. : 2.5 mm², Box

ID výrobku 1330520000
Stáhnout datový list Mérnöki támogatás Termékletöltések
Tartozékok 1 Kapcsolódó termékek 11
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 5.00 mm, Number of poles: 9, 180°, Solder pin length (l): 3.5 mm, tinned, orange, PUSH IN, Clamping range, max. : 2.5 mm², Box
Order No.
1330520000
Type
LMFS 5.00/09/180 3.5SN OR BX
GTIN (EAN)
4050118134629
Qty.
30 items
Product data
IEC: 400 V / 24 A / 0.5 - 2.5 mm²
UL: 300 V / 20 A / AWG 24 - AWG 12
Packaging
Box

Dimensions and weights

Depth
14,8 mm
Depth (inches)
0,583 inch
Height
18,7 mm
Height (inches)
0,736 inch
Height of lowest version
15,2 mm
Width
47,7 mm
Width (inches)
1,878 inch
Net weight
12,49 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Skupina produktů
OMNIMATE Signal - series LMF
Wire connection method
PUSH IN
Montage auf der Leiterplatte
THT solder connection
Conductor outlet direction
180°
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Pólusszám
9
Pin series quantity
1
고객 맞춤
No
Number of rows
1
Максимальное количество полюсов на ряд
24
Lödstiftlängd (l)
3,5 mm
Solder pin dimensions
d = 0.8 mm
0.6 x 0.8 mm
Průměr otvoru pájecího očka (D)
1,1 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
2
Screwdriver blade
0,6 x 3,5
Punta de destornillador normativa
DIN 5264
Longitud de desaislado
10 mm
L1 en mm
40 mm
L1 en pulgadas
1,575 "
Protección contra contacto según DIN VDE 0470
IP 20
Protección contra contacto según DIN VDE 57106
protección de dedos
Tipo de protección
IP20

Material data

Insulating material
Wemid (PA)
Colour
orange
Colour chart (similar)
RAL 2000
Comparative Tracking Index (CTI)
≥ 600
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Coating
4-6 μm SN
Tinning type
mate
Layer structure of solder connection
4...8 µm Sn mate
Storage temperature, min.
−40 °C
Température de stockage, max.
70 °C
Üzemi hőmérséklet, min.
−50 °C
작동 온도, 최대
120 °C
온도 범위, 설치, 최소
−25 °C
온도 범위, 설치, 최대
120 °C

Conductors suitable for connection

Clamping range, min.
0,2 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 12
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,25 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2,4 mm x 1,5 mm
Clampable conductor
  • Sección de conexión del conductor:
    • Tipo:
      conductor fino
    • nominal:
      0,5 mm²
  • Terminal tubular:
    • Longitud de desaislado:
      • nominal:
        12 mm
    • Terminal tubular recomendado:
      9025870000
    • Longitud de desaislado:
      • nominal:
        10 mm
    • Terminal tubular recomendado:
      9004050000
  • Sección de conexión del conductor:
    • Tipo:
      conductor fino
    • nominal:
      0,75 mm²
  • Terminal tubular:
    • Longitud de desaislado:
      • nominal:
        12 mm
    • Terminal tubular recomendado:
      9025860000
    • Longitud de desaislado:
      • nominal:
        10 mm
    • Terminal tubular recomendado:
      0542500000
  • Sección de conexión del conductor:
    • Tipo:
      conductor fino
    • nominal:
      1 mm²
  • Terminal tubular:
    • Longitud de desaislado:
      • nominal:
        12 mm
    • Terminal tubular recomendado:
      9019100000
    • Longitud de desaislado:
      • nominal:
        10 mm
    • Terminal tubular recomendado:
      0282800000
  • Sección de conexión del conductor:
    • Tipo:
      conductor fino
    • nominal:
      1,5 mm²
  • Terminal tubular:
    • Longitud de desaislado:
      • nominal:
        10 mm
    • Terminal tubular recomendado:
      0186500000
    • Longitud de desaislado:
      • nominal:
        12 mm
    • Terminal tubular recomendado:
      0635100000
  • Sección de conexión del conductor:
    • Tipo:
      conductor fino
    • nominal:
      2,5 mm²
  • Terminal tubular:
    • Longitud de desaislado:
      • nominal:
        10 mm
    • Terminal tubular recomendado:
      9004080000
Reference text
La longitud de los terminales tubulares se debe elegir en función del producto y de la tensión nominal.
El diámetro exterior de la abrazadera de plástico no debe ser superior al paso (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
IEC 60947-7-4
Rated current, min. number of poles (Tu=20°C)
24 A
Rated current, max. number of poles (Tu=20°C)
24 A
Rated current, min. number of poles (Tu=40°C)
24 A
Rated current, max. number of poles (Tu=40°C)
24 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Nennspannung (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Courant nominal (groupe d'utilisation B / CSA)
20 A
Rated current (Use group D / CSA)
10 A
Section de raccordement de câble AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Istituto (cURus)
CURUS
Certificat Nº (cURus)
E60693
Tension nominale (groupe d'utilisation B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
20 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 24
Průřez vodiče, AWG, max.
AWG 12
승인값 참조
사양은 최대값, 상세정보 - 승인서 참조

Packing

Packaging
Box
VPE length
350 mm
VPE width
142 mm
VPE height
32 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, approval marking UL, durability
  • Evaluation:
    passed
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.14 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.14 mm²
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 1.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U1.5
    • Type of conductor and conductor cross-section:
      H07V-K1.5
    • Type of conductor and conductor cross-section:
      AWG 16/1
    • Type of conductor and conductor cross-section:
      AWG 16/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • The test point can only be used as potential-pickup point.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
