MF-W 5/5 MINI MC NE WS

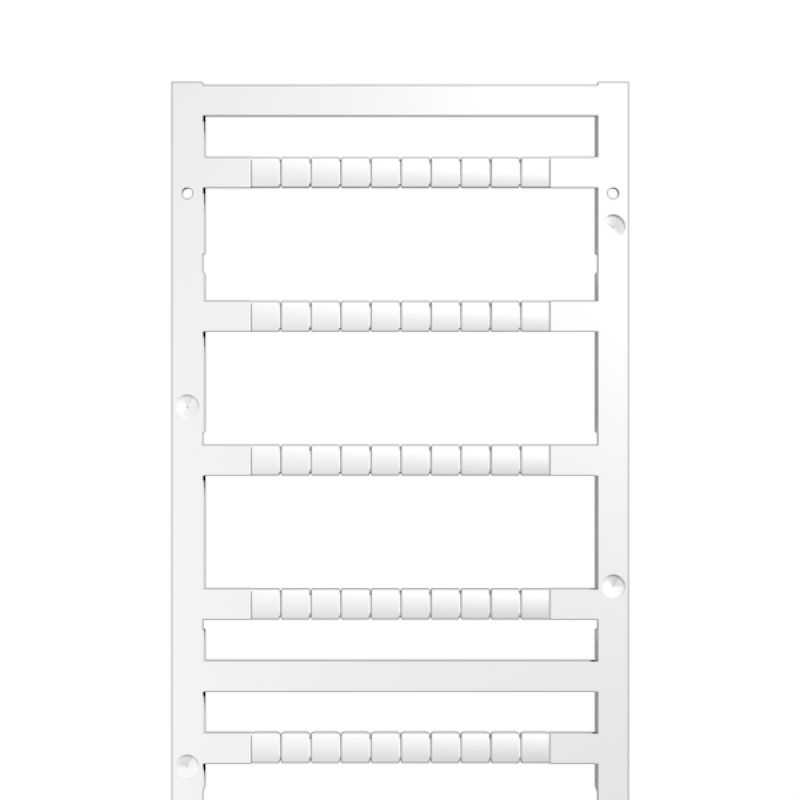

MultiFit, Terminal marker, 5 x 5 mm, Passo in mm (P): 5.00 WAGO, Legrand, Entrelec, bianco

Product ID 1816240000
Gegevensblad downloaden Engineering-support Produktdownloads
Productos relacionados 5
Omologazioni Dati generali per l’ordinazione Dimensioni e pesi 온도 환경 제품 규정 준수 General data Repères de blocs de jonction Classificazioni

Omologazioni

ROHS
Conforme

Dati generali per l’ordinazione

Version
MultiFit, Terminal marker, 5 x 5 mm, Passo in mm (P): 5.00 WAGO, Legrand, Entrelec, bianco
Order No.
1816240000
Type
MF-W 5/5 MINI MC NE WS
GTIN (EAN)
4032248306190
수량
500 items

Dimensioni e pesi

Height
5 mm
Altezza (pollici)
0,197 inch
Width
5 mm
폭 (인치)
0,197 inch
Масса нетто
0,134 g

온도

Operating temperature range
-40...100 °C

환경 제품 규정 준수

RoHS Compliance Status
준수, 예외 미존재
REACH SVHC
No SVHC superiori a 0,1 wt%
제품 탄소 발자국
  • 요람에서 게이트까지:
    0.001 kg CO2 eq.

General data

Application/manufacturer
WAGO
Legrand
Entrelec
Basic material
Polyamide 66
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Material colour according to resistance code
9
Number of markers per combination
1 MultiCard = Terminal marker
Number of markers per packaging unit
  • Type de conditionnement:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
−40 °C
Printed characters
üres
Type of printing
üres
UL 94 flammability rating
V-2
Width
5 mm

Repères de blocs de jonction

Pitch in mm (P)
5 mm

Classificazioni

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
