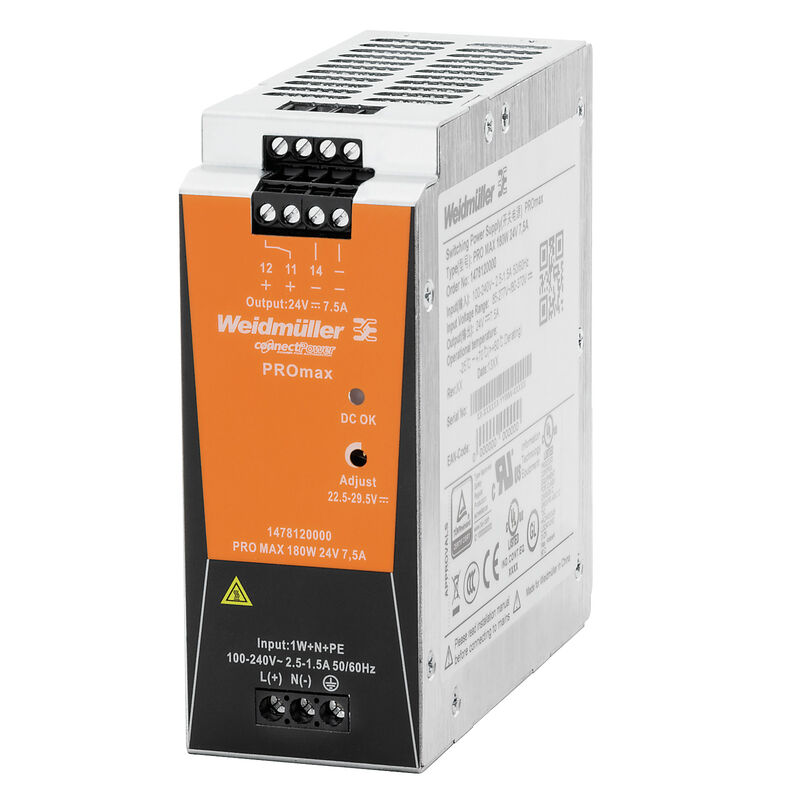

PRO MAX 180W 24V 7,5A
PRO MAX 180W 24V 7,5A
Electric symbol
PRO MAX 180W 24V 7,5A
Derating curve
PRO MAX 180W 24V 7,5A
Derating curve

PRO MAX 180W 24V 7,5A

Power supply, switch-mode power supply unit, 24 V

Item No. 1478120000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 4 Related products 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Input Output General data EMC / shock / vibration Insulation coordination Electrical safety (applied standards) Connection data (input) Connection data (output) Signalling Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a141b9cd-a4d9-451f-8b4d-e03428dc3481/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E255651
Certificate no. (cULus)
E258476
Certificate no. (cULusEX)
E470829

General ordering data

Version
Power supply, switch-mode power supply unit, 24 V
Order No.
1478120000
Type
PRO MAX 180W 24V 7,5A
GTIN (EAN)
4050118286045
Qty.
1 items

Dimensions and weights

Depth
125 mm
Depth (inches)
4.921 inch
Height
130 mm
Height (inches)
5.118 inch
Width
50 mm
Width (inches)
1.968 inch
Net weight
950 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Humidity at operating temperature
5...95 %, no condensation
Start-up
≥ -40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS 면제(해당되거나 알려진 경우)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
6d8cdf22-8230-4af8-86c8-3558c716666d

Rated data UL

Certificate No. (cURus)
E255651

Input

Anslutningsteknik
Screw connection
Current consumption in relation to the input voltage
  • Voltage type:
    AC
  • Input voltage:
    230 V
  • Input current:
    1 A
  • Voltage type:
    DC
  • Input voltage:
    120 V
  • Input current:
    2 A
DC input voltage range
80...370 V DC
Ingångsspänningsområde AC
85…277 V AC
Input fuse (internal)
Yes
Inrush current
max. 15 A
Nominal power consumption
196.7 VA
Recommended back-up fuse
10 A, Char. B circuit breaker
6...8 A, char. C circuit breaker
Surge protection
Varistor
频率范围 交流
45…65 Hz
额定输入电压
100...240 V AC

Output

Connection system
Screw connection
Continuous output current @ UNominal
9 A @ 45°C, 5,6 A @ 70°C
Nominal output current for Unom
7,5 A @ 60 °C
Output power
180 W
Output voltage, max.
29.5 V
Output voltage, min.
22.5 V
Output voltage, note
(adjustable via potentiometer)
Parallel connection option
yes, max. 5
Protection against inverse voltage
Yes
Rated output voltage
24 V DC ± 1 %
Residual ripple, breaking spikes
<50 mVss @ UNenn, Full Load

General data

AC failure bridging time @ Inom
min. 20 ms
Corrente di dispersione verso terra, max.
3.5 mA
Current limiting
> 120% IN
Degree of efficiency
91.5%
Derating
> 60°C / 75% @ 70°C
Housing version
Metal, corrosion resistant
Indikace stavu
LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off)
Mounting position, installation notice
Horizontal on TS35 mounting rail. 50 mm of clearance at top &amp; bottom for air circ. Can mount side by side with no space in between.
MTBF
  • According to Standard:
    SN 29500
  • Operating time (hours), min.:
    1,400,000 h
  • Ambient temperature:
    25 °C
  • Input voltage:
    230 V
  • Output power:
    180 W
  • Duty cycle:
    100 %
Potenza dissipata, funzionamento a vuoto
1.8 W
Protección contra tensión inversa de la carga
30…35 V DC
Protection degree
IP20
Protezione contro il cortocircuito
Yes
Surge voltage category
III
Teljesítménytényező
  • Power factor typical:
    0.95
  • Input voltage:
    230 V
  • Ambient temperature:
    25 °C
  • Output power:
    180 W
Рабочая высота
3000m, 3000-6000m derating, @ 6000m 75% Load
出力損失、公称負荷
16.7 W

EMC / shock / vibration

Interference immunity test acc. to
EN 55024
EN 55032
IEC61000-3-2,-3
IEC61000-4-2,-3,-4,-5,-6,-8,-11
Noise emission in accordance with EN55032
Class B
Shock resistance IEC 60068-2-27
30 g in all directions
Vibration resistance IEC 60068-2-6
2.3 g

Insulation coordination

Insulation voltage (input / earth)
3.5 kV
Insulation voltage (input / output)
4 kV
Insulation voltage (output / earth)
0.5 kV
Pollution severity
2
Protection class
I, with PE connection
Surge voltage category
III

Electrical safety (applied standards)

Electrical machine equipment
Acc. to EN60204
Safety extra-low voltage
SELV acc. to IEC 60950-1
PELV according to EN 60204-1
SELV according to EN 62368-1
Safety transformers for switch-mode power supplies
According to EN 61558-2-16

Connection data (input)

Conductor cross-section (AWG) (input), min.
26 AWG
Conductor cross-section input (AWG), max.
10 AWG
Conductor cross-section, flexible , min.
0.22 mm²
Conductor cross-section, rigid , max.
6 mm²
Conductor cross-section, rigid , min.
0.18 mm²
Connection system
Screw connection
Number of terminals
3 for L/N/PE
Screwdriver blade
0.8 x 4.0
PZ 1
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm
Wire connection cross-section, flexible (input), max.
4 mm²

Connection data (output)

Conductor cross-section (AWG) (output) , min.
26 AWG
Conductor cross-section (AWG) (output), max.
12 AWG
Conductor cross-section, flexible , max.
4 mm²
Conductor cross-section, flexible , min.
0.5 mm²
Conductor cross-section, rigid , max.
6 mm²
Conductor cross-section, rigid , min.
0.5 mm²
Connection system
Screw connection
Number of terminals
8 (++,---,11,13,14)
Screwdriver blade
0.6 x 3.5
Tightening torque, max.
0.6 Nm
Tightening torque, min.
0.5 Nm

Signalling

Wskaźnik pracy
LED red/green and relay (≥21.6 V DC LED green, relay on/ ≤20.6 LED red, relay off)
Беспотенциальный контакт
Yes
Нагрузка на контакт (нормально разомкнутый контакт)
max. 30 V DC / 1 A

Classifications

ETIM 8.0
EC002540
ETIM 9.0
EC002540
ETIM 10.0
EC002540
ECLASS 14.0
27-04-07-01
ECLASS 15.0
27-04-07-01
