SAIL-M8WM8W-4S6.0U
SAIL-M8WM8W-4S6.0U
Dimensioned drawing
Male, angled
SAIL-M8WM8W-4S6.0U
Dimensioned drawing
Angled socket
SAIL-M8WM8W-4S6.0U
Pole scheme
Pin
SAIL-M8WM8W-4S6.0U
Pole scheme
Socket
SAIL-M8WM8W-4S6.0U
Wiring diagram
SAIL-M8WM8W-4S6.0U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M8WM8W-4S6.0U

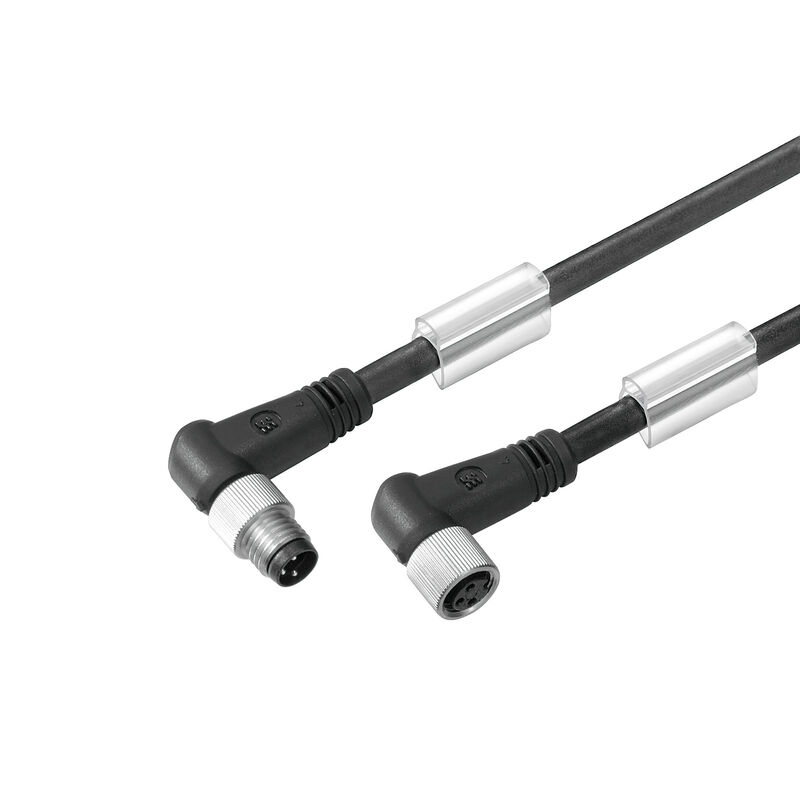

Sensor/actuator line, M8, Number of poles : 4, 6 m, pin, 90° - socket 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 2443150600
Veri sayfasını indir
İlgili ürünler 19
Approvals General ordering data Dimensions and weights Environmental Product Compliance 电缆技术参数 General technical data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E307231

General ordering data

Utförande
Sensor/actuator line, M8, Number of poles : 4, 6 m, pin, 90° - socket 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Art.nr.
2443150600
Typ
SAIL-M8WM8W-4S6.0U
GTIN (EAN)
4050118457063
Qty.
1 adet

Dimensions and weights

Net weight
225,28 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

电缆技术参数

Accelerartion
5 m/s²
Antal poler
4
Böjcykler
2 Mio
Böjradie min, fast monterad
5 x cable diameter
Böjradie min, rörlig
12 x conductor cross-section
Bestrålning tvärbunden
No
Beständighet mot svetsgnistor
No
Färkodning
brown
black
blue
white
Flamhärdighet
in accordance with IEC 60332-2
Halogener
No
hastighet
100 m/s
Isolering
PP
Kabellängd
6 m
Konfigurerbar kabellängd
No
Ledararea
0,34 mm²
Mantel i enlighet med UL AWM-stil
20549 (80 °C / 300 V)
Mantelfärg
black
Mantelmaterial
PUR
Skärmad
Yes
Släpkedjetålighet
Yes
Säker mot svetsstänk
No
Temperaturområde, fast lagd
-40...80 °C
Temperaturområde, rörligt
-25...80 °C
Vridtålighet
0 °/m
Ytterdiameter
5.1 mm ± 0.2 mm

General technical data

Anslutningsgänga
M8
Anslutningsvridmoment
M8: 0.6 Nm
bockad
No
Isolationsmotstånd
108 Ω
Kapslingsmaterial
PUR
Kodering
A-coded
Kontaktyta
Gold-plated
LED
No
Material låsring
Diecast zinc
Märkström
4 A
Nedsmutsningsgrad
3
Nominell spänning
30 V
Skyddsklass
IP65
IP66
IP67
IP68
when screwed in
Stickcykler
≥ 100
Temperaturområde kapsling
-25…+85 °C
Utförande
pin, 90° - socket 90°

Electrical properties

Isolationsmotstånd
108 Ω
Nominell spänning
30 V

General standards

Certifikat-Nr. (cULus)
E307231

Plug, left

Stickkontakt vänster
M8, IP69, male contact, angled 90°, Plastic, shielded

Plug, right

Stickkontakt höger
M8, IP69, female contact, angled 90°, Plastic, shielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
