SAIL-VSA-13U

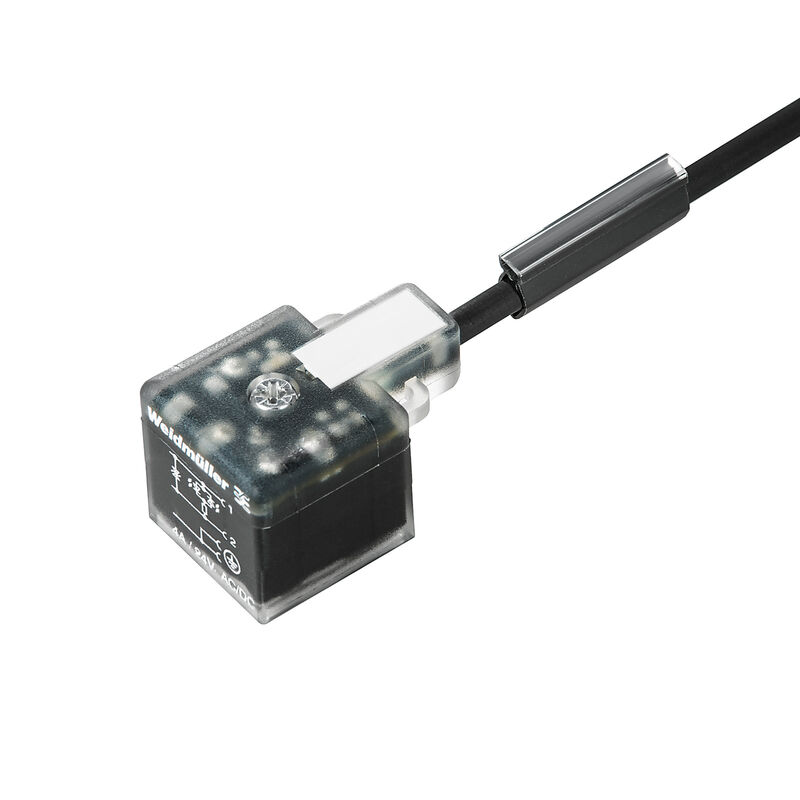

Valve cable (assembled), One end without connector - valve plug, Design A (18 mm), Cable length: 13 m, PUR, black

Tuotteen tunnus 9457711300
Lataa tietosivu Tekninen tuki
Samankaltaiset tuotteet 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance 케이블의 기술 사양 PB46 Общие технические данные Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

버전
Valve cable (assembled), One end without connector - valve plug, Design A (18 mm), Cable length: 13 m, PUR, black
주문 번호
9457711300
유형
SAIL-VSA-13U
GTIN (EAN)
4032248531882
Qty.
1 items

Dimensions and weights

Net weight
420 g

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

케이블의 기술 사양

Aderquerschnitt
0,5 mm²
Bending cycles
2 mln
Bending radius, min., stationary
5 x диаметр кабеля
Beschleunigung
5 m/s²
Biegeradius min., bewegt
10 x диаметр кабеля
Cable length
13 m
Codage couleur
коричневый
синий
зеленый/желтый
Diametro esterno
4.6 mm ± 0.2 mm
Geschirmt
Нет
Halogene
Нет
Hegesztésnek ellenálló
Нет
Isolation
PP
Mantelfarbe
черный
Numero di poli
3
Plage de température, fixe
-50...80 °C
Résistance de soudage
Нет
Résistance à la torsion
0 °/m
Schleppkettentauglichkeit
Да
Sheath material
Полиуретан
Speed
200 m/s
Temperature range, moving
-25...80 °C

PB46 Общие технические данные

LED
Да
결선 나사산
прочее
공칭 전압
24 V
모든 밸브 플러그에는 보호 회로가 장착
Zener diode
버전
One end without connector - valve plug
보호 등급
IP67
when screwed in
접점 재질
CuZn
접점 표면
tinned
정격 전류
4 A
조임 토크
Mounting screw M3: 0.4 Nm
코딩
Design A (18 mm)
하우징의 온도 범위
-25…+80 °C

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
