SCT-C 4.6/520
SCT-C 4.6/520
Drawing

SCT-C 4.6/520

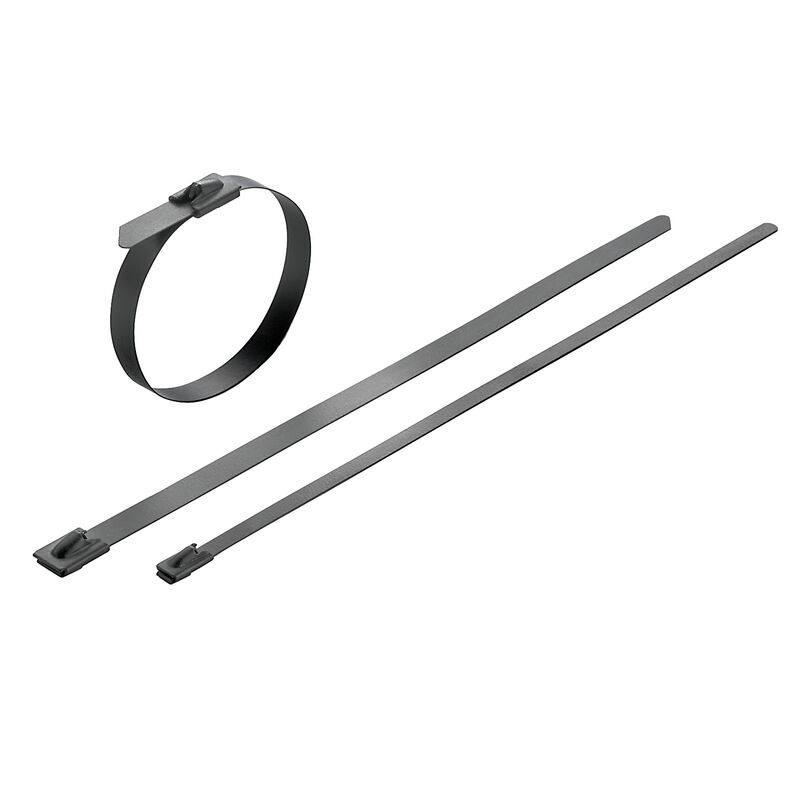

Fascette serracavo, 4.6 x 520 mm, Acciaio inossidabile, rivestito in poliestere, 445 N

Product ID 1015280000
Gegevensblad downloaden Product Downloads Engineering Support
Verwante producten 13
Approvals Informations générales de commande Dimensions and weights Temperatures Environmental Product Compliance Installation materials Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319249/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E524836

Informations générales de commande

Version
Fascette serracavo, 4.6 x 520 mm, Acciaio inossidabile, rivestito in poliestere, 445 N
Order No.
1015280000
Type
SCT-C 4.6/520
GTIN (EAN)
4032248724253
Qty.
100 items

Dimensions and weights

Depth
0,26 mm
Depth (inches)
0,01 inch
Height
520 mm
Height (inches)
20,472 inch
Width
4,6 mm
Width (inches)
0,181 inch
Net weight
5 g

Temperatures

Operating temperature range
-80...150 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
165 °C

Environmental Product Compliance

RoHS Compliance Status
V souladu bez výjimky
REACH SVHC
No SVHC above 0.1 wt%

Installation materials

Basic material
Stainless steel, polyester coated
Bundle diameter, max.
150 mm
Bundle diameter, min.
20 mm
Cable diameter, max.
150 mm
For re-opening
No
Halogen
No
Operating temperature range, max.
150 °C
Operating temperature range, min.
-80 °C
Tensile strength
445 N
Tensile strength (Pound-force)
100 lbf
UL 94 flammability rating
None
UV-resistant
Yes

Classifications

ETIM 8.0
EC000046
ETIM 9.0
EC000046
ETIM 10.0
EC000046
ECLASS 14.0
27-14-07-02
ECLASS 15.0
27-14-07-02
