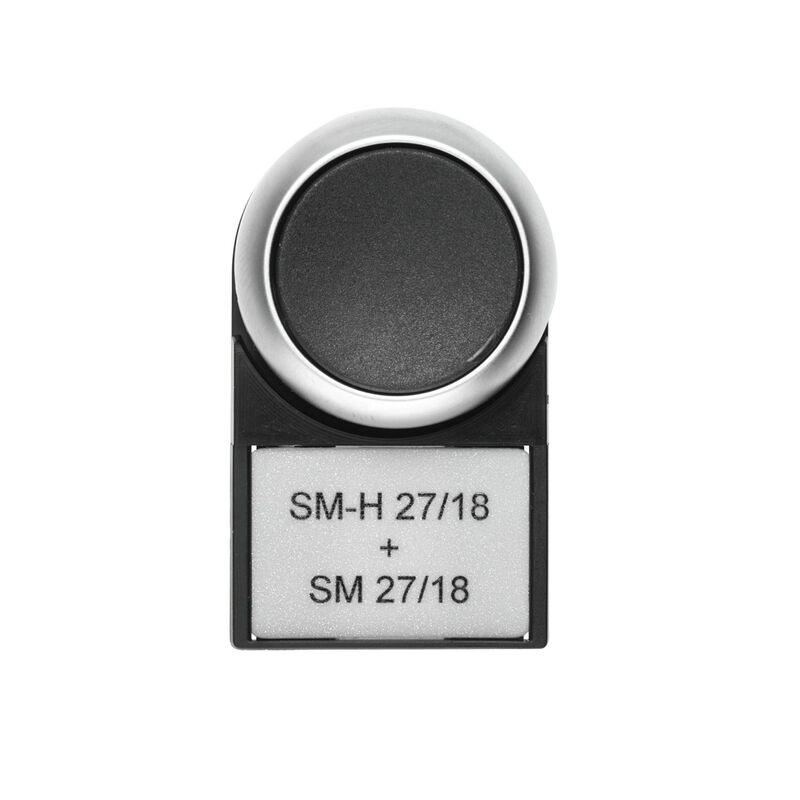

SM-H 27/18 SW
SM-H 27/18 SW

SM-H 27/18 SW

SwitchMark, Accessories, 48 x 27 mm, black

ID výrobku 1716630000
Stáhnout datový list Engineering Support Product Downloads
Is accessoire van 16 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Repérage d’équipements et appareillages Classifications

Approvals

ROHS
Conform

General ordering data

Versione
SwitchMark, Accessories, 48 x 27 mm, black
Rendelési szám
1716630000
Typ
SM-H 27/18 SW
GTIN (EAN)
4008190343194
Qty.
25 items

Dimensions and weights

깊이
3,3 mm
Depth (inches)
0,13 inch
Wysokość
48 mm
Height (inches)
1,89 inch
Szerokość
27 mm
Width (inches)
1,063 inch
Diameter
22 mm
Net weight
0,92 g

Temperatures

Operating temperature range
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Uhlíková stopa výrobku
  • Cradle to gate:
    0.011 kg CO2 eq.

General data

Bredd
27 mm
Brännbarhetsklass enligt UL 94
V-2
Colori
noir
Number of markers per combination
1 MultiCard = Accessories
Number of markers per packaging unit
  • forma dostawy:
    MultiCard
Plage de température d'utilisation, max.
100 °C
Temperaturområde för användning
-40...100 °C
Üzemi hőmérsékleti tartomány, min.
-40 °C
Исполнение
Marker holder
Основной материал
Polyamide 66
Цвет материала согласно коду по сопротивлению
0
할로겐
No

Repérage d’équipements et appareillages

Halogenki
No
Średnica
22 mm

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
